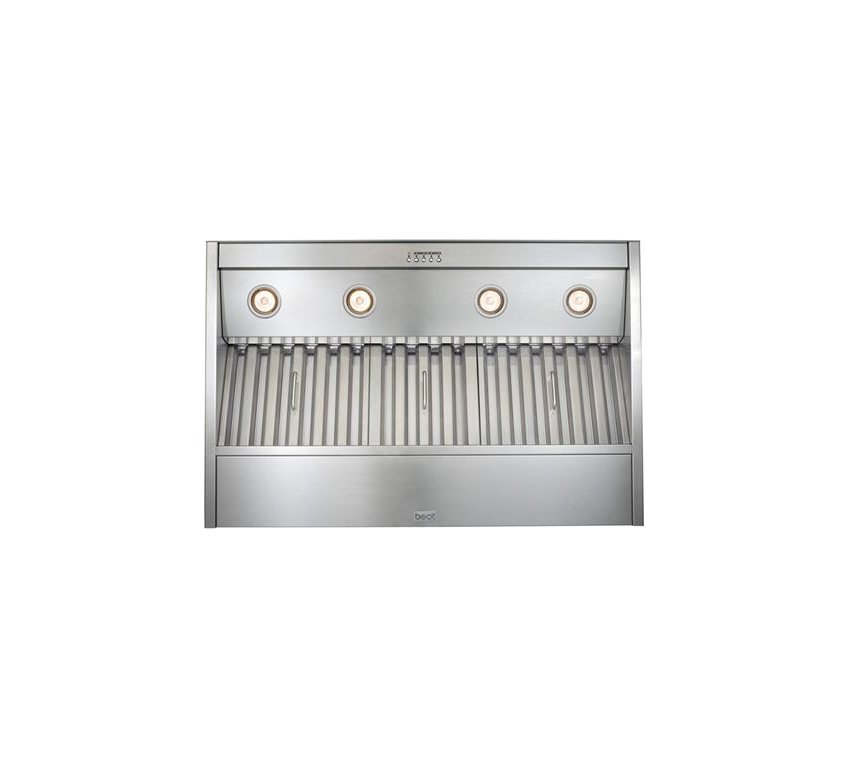

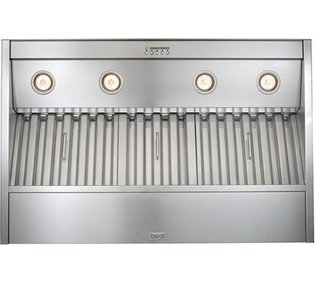

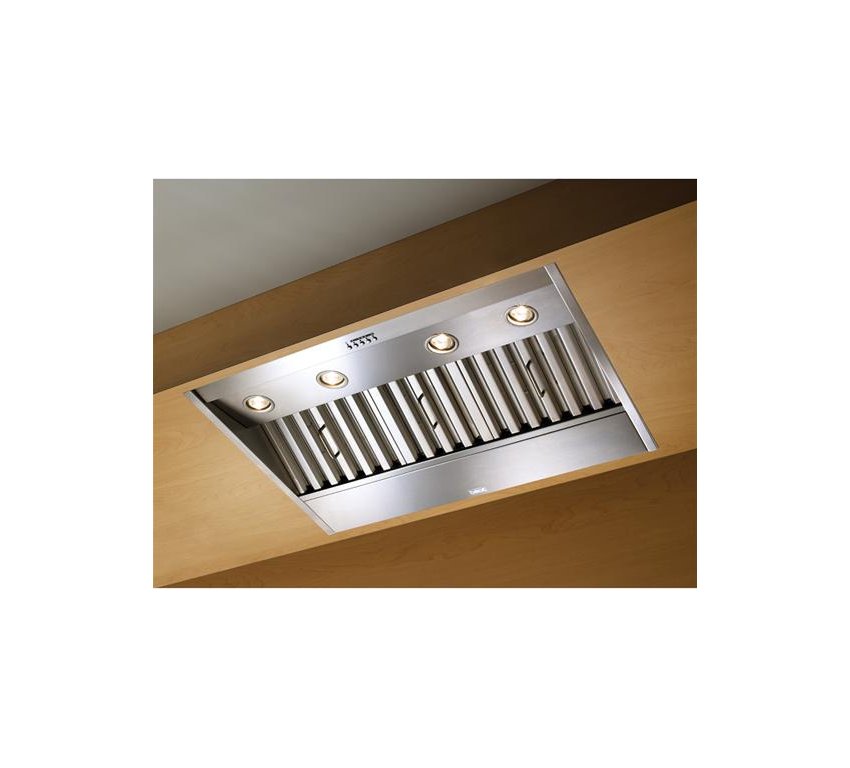

Best CP45I489SB Wall Mount Custom Hood Insert with 600 CFM Internal Blower

Mouse Over Main Image to Zoom In

• Cabinet Mount
• Custom applications.
• Finish
• 430 Stainless Steel #4 Brushed.
• Widths: 34-3/8", 46-3/8"
• Depth: 19-1/4" (Both Widths) or 22-1/2" (34-3/8" Width Only)
• 8" Round Duct Connector with Backdraft Damper
• Four-Setting Cooktop Lighting
• Uses 50W, GU10 halogen lamps.
• Bulbs included.
• 2 lamps on 34-3/8" wide hood.
• 4 lamps on 46-3/8" wide hood.
• Filters
• Easily accessible, dishwasher safe stainless steel Evolution baffle filters with handles.
• 4-Speed Electronic Blower Control with LinkLogic Enabled Technology
• Powerful, Centrifugal Blower
• High-efficiency motor produces 600 CFM.
• Quiet Operation
• Heat Sentry
• Automatically turns blower to high speed when excess cooking heat is detected.
• Compatible with the ARP8 CFM Reducer Kit
• Reduces CFM to 250 - 300.
• Delay Timer Control
• Automatically shuts off range hood after 10 minutes.
• Special Control
• Indicates when it's time to clean the filter.

Finish
Stocked	Brushed Standard Grade Stainless Steel
Special Order	Not Available
Features
Light Type	Halogen, MR16; GU10-50W
Number of Lamps	2 (34 3/8" Width), 4 (All Other Widths)
Lighting Levels	4
Lighting Lamps	Included
Control Type	4-Speed, Electronic Push-Button Control with Blue LED Indicator
Control Features	Heat Sentry, LinkLogic Enabled, Delay Off, Filter Timer
Control Remote	Optional
Filter: Standard	Evolution Stainless Steel Baffle
Filter: Options	Not Available
Non-ducted Capability	Yes
Internal Blower (Included)
Vertical CFM	Pro 600 Blower
Sones Max High/Low	8.5/1.1
Accessories
Non-Ducted Recirculating Kit	Optional (34 3/8" Width Only)
Decorative Trim	Not Available
Liners	Not Available
CFM Reducer Kit	Optional
Installation Requirements
Amps @ 120V	4.5 Amps
Electrical	Direct Wire
Duct Size: Internal Blower	8" Round
Duct Direction	Vertical
Backdraft Damper	Included
Dimensions
Width	46 38"
Depth	19 1/4"
Height	11"
