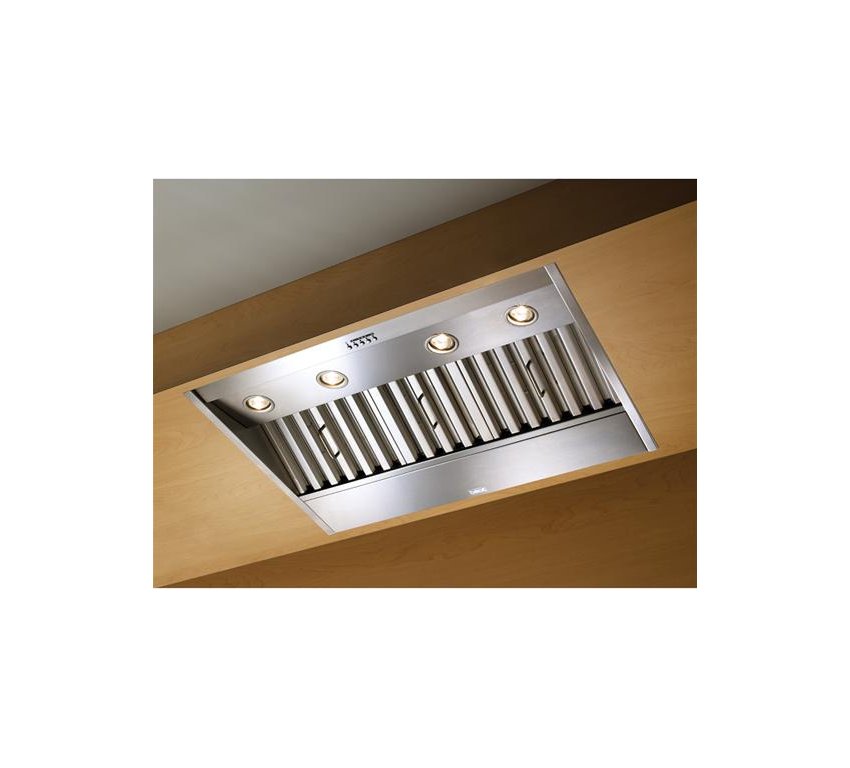

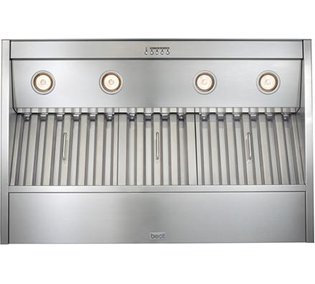

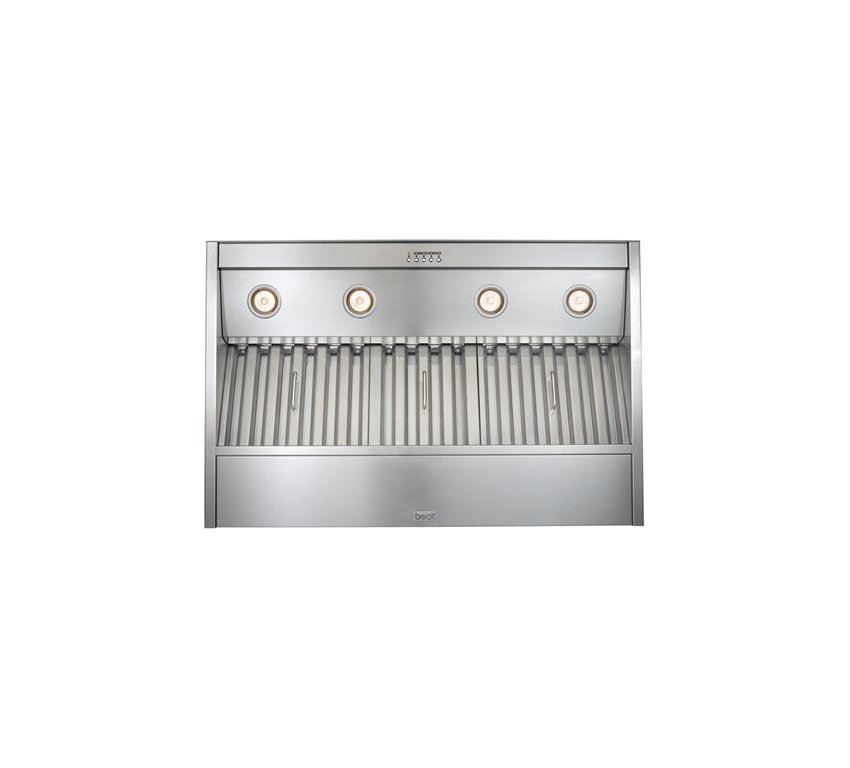

Best CP47E602SB Wall Mount Custom Hood Insert

Mouse Over Main Image to Zoom In

• *** Blowers Sold Separately ***
• Cabinet Mount
• Custom applications.
• Finish
• 430 Stainless Steel #4 Brushed.
• Backdraft Damper
• Four-Setting Cooktop Lighting
• Uses 50W, GU10 halogen lamps.
• Bulbs included.
• 2 lamps on 34-3/8" wide hood.
• 4 lamps on 46-3/8" and 58-3/8" wide hoods.
• Filters
• Easily accessible.
• Dishwasher safe stainless steel.
• Evolution baffle filters with handles.
• 4-Speed Electronic Blower Control with LinkLogic Enabled Technology
• Delay Timer Control
• Automatically shuts off range hood after 10 minutes.
• Heat Sentry
• Automatically turns blower to high speed when excess cooking heat is detected.
• Use with Exterior-Mounted or Attic-Installed Remote Blowers For Different Levels of Exhaust Capacity
• See specifications.
• Special Control
• Indicates when it's time to clean the filter.

Finish
Stocked	Brushed Standard Grade Stainless Steel
Special Order	Not Available
Features
Light Type	Halogen, MR16; GU10-50W
Number of Lamps	2 (34 3/8" Width), 4 (All Other Widths)
Lighting Levels	4
Lighting Lamps	Included
Control Type	4-Speed, Electronic Push-Button Control with Blue LED Indicator
Control Features	Heat Sentry, LinkLogic Enabled, Delay Off, Filter Timer
Control Remote	Optional
Filter: Standard	Evolution Stainless Steel Baffle
Filter: Options	Not Available
Non-ducted Capability	Yes
Optional External In-Line Blowers
Vertical or Straight Through CFM	280 CFM (ILB3), 600 CFM (ILB6), 800 CFM (ILB9), 1100 CFM (ILB11)
Horizontal or Right Angle CFM	260 CFM (ILB3), 600 CFM (ILB6), 700 CFM (ILB9), 1000 CFM (ILB11)
Sone Levels	Are Typically Half of Comparable CFM Internal Blowers
Optional External Exterior Blowers
Vertical or Straight Through CFM	600 CFM (EB6), 900 CFM (EB9), 1200 CFM (EB12), 1500 CFM (EB15)
Sone Levels	Are Typically Half of Comparable CFM Internal Blowers
Accessories
Non-Ducted Recirculating Kit	Not Available
Decorative Trim	Not Available
Liners	Not Available
CFM Reducer Kit	Not Available
Installation Requirements
Amps @ 120V	7.0 Amps
Electrical	Direct Wire
Duct Size	10" Round At The Hood
Duct Direction	Vertical
Backdraft Damper	Included
Dimensions
Width	58 3/8"
Depth	22 1/2"
Height	11"

Accessories
