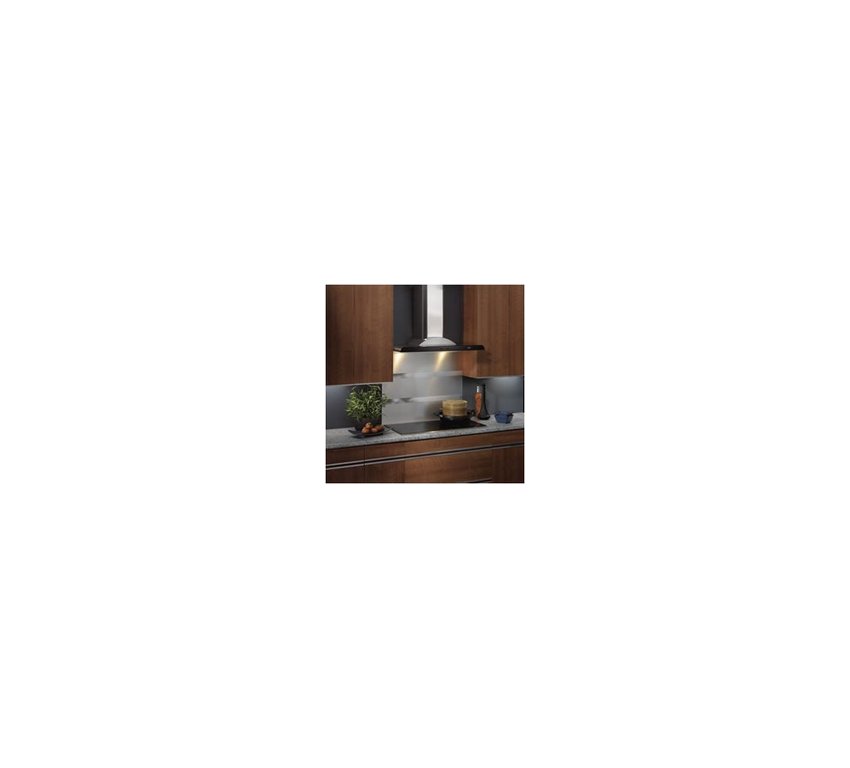

Best : K778836SS 36" Wall Mount Chimney Hood : Black Trim

Mouse Over Main Image to Zoom In

• Sleek design in a beautiful brushed stainless finish
• Accented with black glass trim; Cobalt Blue, Garnet Red or Sage Green models available by special order
• Powerful yet quiet internal and external blowers with HVI certified performance
• Brilliant, dual halogen lighting with two intensity settings
• 4-speed electronic push-button control
• 10 minute time-delay shut-off feature and reminder indicator for filter maintenance
• Heat Sentry is a smart feature that detects excessive heat and adjusts speed to high automatically
• Ducted/non-ducted telescopic flue for 8 ft. to 9 ft. ceilings - Custom extensions available
• Stainless steel/aluminum mesh filters are easy to remove and clean effortlessly in the dishwasher

Dimensions
Width (in.)	36
Depth (in.)	19 11/16
Height including Flue (min.-max.) (in.)	32 - 46
Width of Flue (in.)	9 15/16
Depth of Flue (in.)	10 15/16
(Distances over 30" are at the installer's and user's discretion)
8 foot Ceiling (in.)	24 - 28
9 foot Ceiling with Flue Extension (in.)	25 - 30
10 foot Celing (in.)	24 - 30
Product Specifications
Finishes	304 Grade Brushed Stainless Steel with Black/Green/Blue/Red Glass Trim
Lighting	(2) Halogen - G4-20W
Lighting Levels	2
Controls	4-Speed Electronic Push Button
Feature	Heat Sentry, Delay Off, Filter Timer
Remote	N/A
Filter	Stainless Steel Mesh
Optional Filters	N/A
Backsplash	N/A
Flue Extension (Vented Applications Only)	FEXTK7788SS
Deco Trim	N/A
Liners	N/A
Shelves	N/A
Mechanical Specifications
Blower	Internal
Performance	440 High CFM
Sones	9
HVI	Yes
Electrical Amps @ 120 Volts	3.2
Electrical Connection	Plug
Duct Size	6-in. Round (Damper/Adapter is included with the product in the duct size indicated)
Duct Direction	Vertical
Non-Ducted Capability - Recirculating Flue	Included
Non-Ducted Capability - Recirculating Kit	NDK7780
