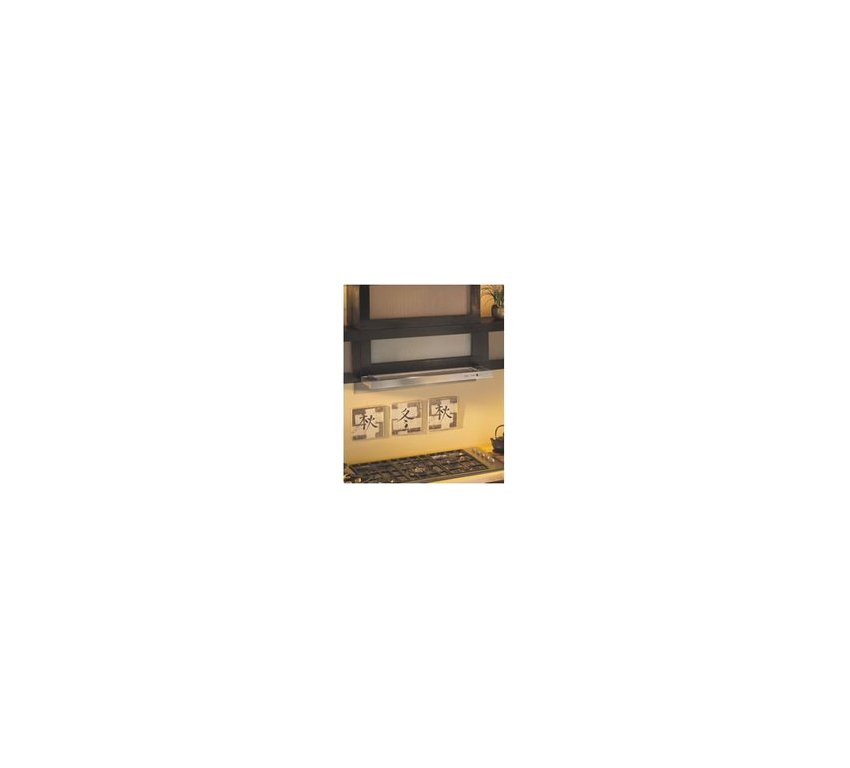

Best : U10242SBE 42" Custom Hood Insert : Stainless Steel

Mouse Over Main Image to Zoom In

• Modern slim design in brushed stainless or two durable powder coated
• colors provides effective ventilation in an ultracompact package - 12" retracted, 18" extended
• Decorative filler provides a small backsplash
• Quiet, efficient internal or external blowers with HVI-certified performance are hidden in the cabinet above the hood
• Dishwasher-safe stainless steel filter
• Bright halogen lighting with two intensity settings
• Manually extend the glass visor to automatically activate the fan and lighting 10-minute time-delay shut-off feature and reminder indicator for filter maintenance
• Heat Sentry is a smart feature that detects excessive heat and adjusts speed to high automatically
• The U102 features electronic four-speed push-button controls with an easy-to-read blue digital display
• See Accessories Tab for Exterior and In-Line and Blower Options

Dimensions
Width (in.)	42
Depth with Glass Visor Closed (in.)	12 3/4
Depth with Glass Visor Open (in.)	18 1/2
Height Insert and Glass Visor (in.)	9 5/8
Height of Insert (in.)	10 1/4
Height of Glass Visor (in.)	1 9/16
(Distances over 30" are at the installer's and user's discretion)
8 foot Ceiling (in.)	22 1/2 - 30
9 foot Ceiling with Flue Extension (in.)	22 1/2 - 30
10 foot Celing (in.)	22 1/2 - 30
Product Specifications
Finishes	304 Grade Brushed Stainless Steel, Black, White
Lighting	(2) Halogen - G4-20W
Lighting Levels	2
Controls	4 Speed Push Button Control
Feature	Heat Sentry, Delay Off, Filter Timer
Remote	N/A
Filter	Stainless Steel Mesh
Optional Filters	N/A
Backsplash	N/A
Flue Extension (Vented Applications Only)	N/A
Deco Trim	N/A
Liners	N/A
Shelves	N/A
Mechanical Specifications
Blower	Exterior, In-Line
Performance (CFM)	EB6 - 600; EB9 - 900; EB12 - 1200; EB15 - 1500; ILB3 - 280; ILB6 - 600; ILB9 - 800; ILB11 - 1100
Sones	N/A
HVI	Yes
Electrical Amps @ 120 Volts	6
Electrical Connection	Plug
Duct Size (in.)	3 1/4 x 10
Duct Direction	Down, Left and Right
Non-Ducted Capability - Recirculating Flue	N/A
Non-Ducted Capability - Recirculating Kit	N/A
