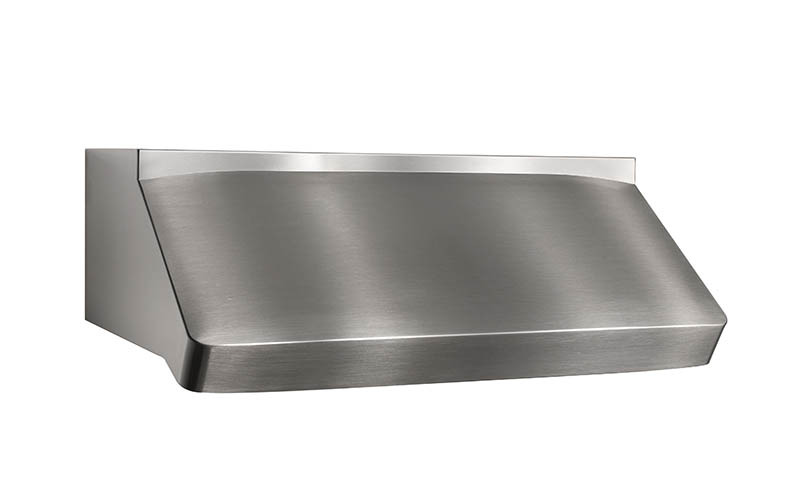

Best : UP27E42SB Under Cabinet Range Hood: 42-Inches

Mouse Over Main Image to Zoom In

• Contemporary lines - accented by seamless welded construction using 304 stainless steel - provide a unique and lasting statement
• Powerful, quiet internal and external blowers with HVI certified performance
• Integrated internal blower makes installation fast and easy-flexible design allows the blower to exhaust through the top or back of hood for ducted applications
• Evolution filters combine baffle design with the efficiency of mesh for the ultimate in filtration
• Halogen lamps deliver brilliant surface lighting (50W halogen lamps
• included)
• Hidden variable setting controls with a memory feature adjust speed and lighting levels
• Heat Sentry is a smart feature that detects excessive heat and adjusts speed to high automatically
• See Accessories Tab for Exterior and In-Line Blower Options

Dimensions
Width (in.)	42
Depth (in.)	22
Height (in.)	10
(Distances over 30" are at the installer's and user's discretion)
8 foot Ceiling (in.)	24 - 30
9 foot Ceiling with Flue Extension (in.)	N/A
10 foot Celing (in.)	N/A
Product Specifications
Finishes	304 Grade Brushed Stainless Steel
Lighting	(4) Halogen - GU10
Lighting Levels	Variable
Controls	Variable Speed Rotary
Feature	Heat Sentry
Remote	N/A
Filter	Evolution Baffle
Optional Filters	N/A
Backsplash	RMP
Flue Extension (Vented Applications Only)	N/A
Deco Trim	N/A
Liners	N/A
Shelves	N/A
Mechanical Specifications
Blower	Exterior, In-Line
Performance (CFM)	EB6 - 600; EB9 - 900; EB12 - 1200; EB15 - 1500; ILB3 - 280; ILB6 - 600; ILB9 - 800; ILB11 - 1100
Sones	N/A
HVI	Yes
Electrical Amps @ 120 Volts	6.0 max.
Electrical Connection	Direct
Duct Size (in.)	10-in. Round
Duct Direction	Vertical
Non-Ducted Capability - Recirculating Flue	N/A
Non-Ducted Capability - Recirculating Kit	N/A

Accessories
