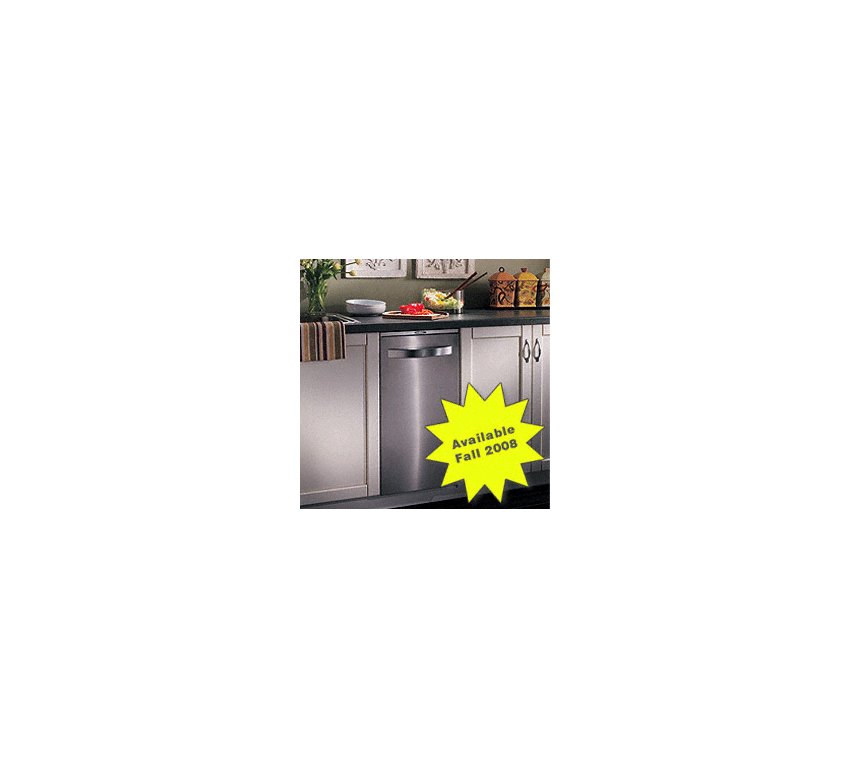

Broan 15SS 15" Fully Integrated Trash Compactor - Stainless Steel

Mouse Over Main Image to Zoom In

• 3000 lbs. of continual compaction force.
• 3/4 horsepower motor drives dual screw compaction system.
• Dedicated 15 Amp circuit recommended.
• Six (6) to one (1) compaction ratio.
• Compact the equivalent of six (6) 13 gallon trash containers into one bag.
• Compact hold feature maximizes capacity of compacted trash.
• Compacting plate designed to crush cans and bottles.
• 1.55 cu. ft. trash bucket holds 30 lbs. of trash.
• Trash bucket has drop down door for easy trash removal.
• Full extension ball bearing trash bucket drawer slides for smooth action.
• Start button with ram status LED.
• Removable key switch prevents unauthorized compaction.
• Safety interlock prevents compaction when door is open.
• Bag storage compartment. Unit comes with three (3) bags.
• Manual advance odor control system. First six (6) month disk provided with trash compactor.
• Magnetic door gasket provides tight seal for quiet cycling and odor control.
• Reversible doors with 170 range of motion offered in different finishes.
• Textured cabinet features a durable baked epoxy finish in black (all models).
• Two (2) adjustable height leveling legs (front) and two (2) adjustable height rollers (rear) provide one (1) inch of height adjustment.

Specifications
Compaction Force	3,000 Lbs. Continual
Compaction Ration	6:1 (Equivalent of Six 13 Gallon Trash Containers)
Horsepower	3/4 HP
Programmable Compaction Cycle	No
Battery Backup	No
Microban Antimicrobial Protective Coating	No
Trash Bucket Capacity	1.55 Cu. Ft. (30 Lbs. of Trash)
Trash Bucket Drop Down Door	Yes
Trash Bucket Drawer Slides	Full Extension Ball Bearing
Start Button	Yes
Ram Status LED	Yes
Removable Key Switch	Yes
Safety Interlock	Yes
Bag Storage Compartment	Yes (3 Bags Included)
Advanced Odor Control System	Manual (6 Month Disk Provided)
Magnetic Gasket	Yes
Reversible Doors	Yes
Textured Cabinets	Yes
Leveling Legs	Adjustable
Electrical Requirements
Volts	120V
Hz	60Hz
Amps	5.0A
Dimensions and Weights
Overall Width	14 7/8"
Overall Depth	21 1/2"
Overall Height	34 1/8" Min.
Cutout Width	15"
Cutout Depth	22"
Cutout Height	34 1/2"
Approx. Shipping Weight	165 Lbs.
