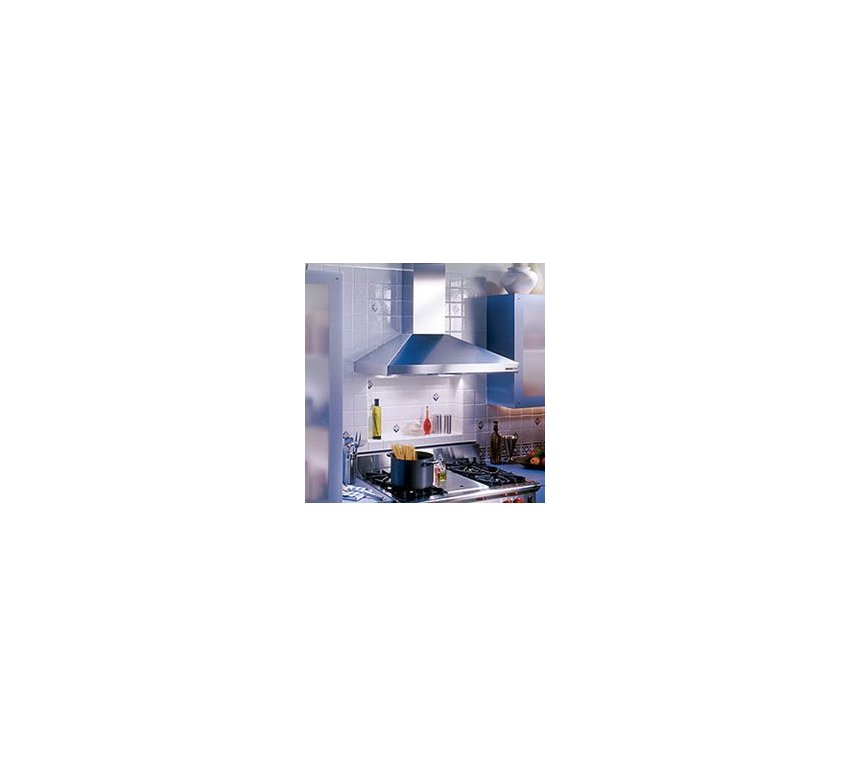

Broan Elite Rangemaster Series : 619004EX Ballista 36" Wall-Mount Chimney Hood - Exterior Blower

Mouse Over Main Image to Zoom In

• Seamless corners for easy cleaning.
• Concealed three-speed slide control.
• Heat Sentry detects excessive heat and adjusts blower speed to high automatically.
• The 61000EX models are designed to operate with the Broan Elite External blowers, providing a choice of four Exterior models: 600, 900, 1200 or 1500 CFM, or four In-Line models: 280, 600, 800 or 1100 CFM
• Two 20-watt (four in 48") halogen lights included (one level).
• Available in 30", 35-1/2" or 48" sizes.
• Ducted/non-ducted telescopic flues fit 8' to 9' ceilings.
• Covertible to ducted or non-ducted operation. (excludes 48" model)
• Easily removable, dishwasher safe, stainless steel grease filters.
• Optional flue extension for up to 10' ceilings.

Dimensions
Width	35 7/16"
Hood Height	9 3/8"
Depth	20 1/4"
Flue Width	9 1/4"
Flue Height	25 5/8" min./45 1/2"
Flue Depth	6 5/8"
Mounting Height	24" - 30"
Visible Shell Height	9 3/8"
Ceiling Height	8' to 9' (optional 10')
Power/Ratings
Volts	120
Amps	0.5 (Hood amps w/o blower)
CFM	External blowers sold separately
Features
Blower	External (Sold Separately)
Duct Connection	8" Round
Description	Chimney Hood/ External Blowers
Finishes	Stainless Steel
Lighting	Halogen Dual or Quad 20W (included)
Control Features	Variable Heat Sentry
Control Slide	Slide
Air-Mover Type	Centrifugal Blower
Mount Type	Wall
Bulb Included	Yes
Duct	8" Round (Vertical)
Filters Included	Stainless Steel
CFM/Sones Vertical Rectangular	N/A
CFM/Sones Horizontal Rectangular	N/A
CFM/sones Vertical Round	280 to 1500 (External or In-Line Blowers)
HVI Certified	Yes
