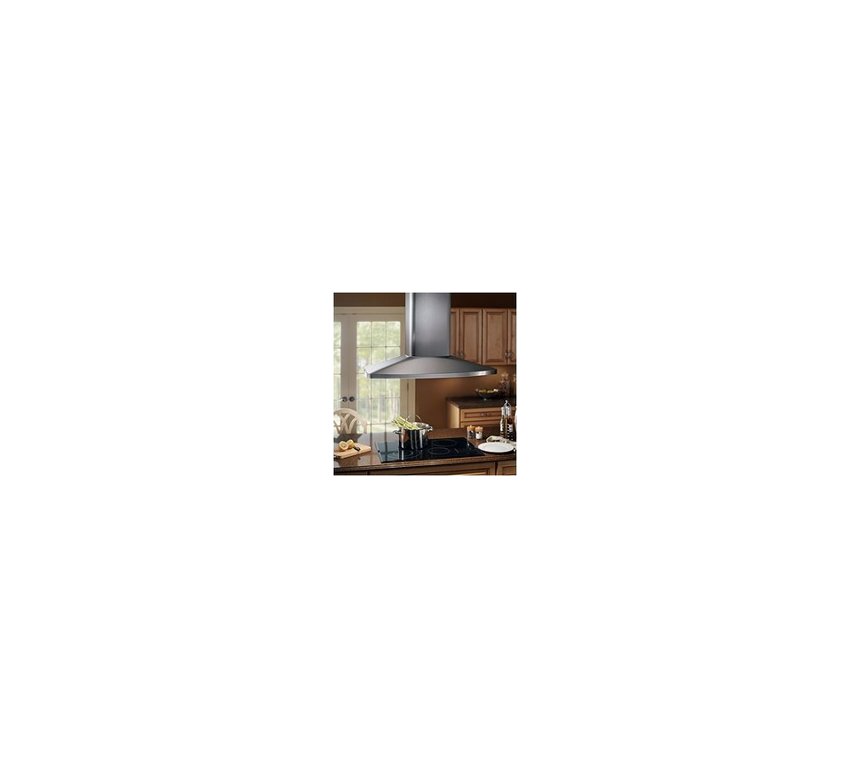

Broan : E5490SS Hood

Mouse Over Main Image to Zoom In

• Brushed stainless steel finish
• Multi-speed slide control
• Four 20 watt halogen lights
• Dishwasher-safe aluminum filters
• Telescopic flue accommodates 8 ft. to 9 ft. ceilings - flue extensions available for ducted and non-ducted applications
• Internal blower delivers 480 CFM
• Non-ducted kit for indoor recirculation (purchase separately)
• Heat Sentry detects excessive heat and adjusts blower speed to high automatically

Dimensions & Weights
Width	35 7/16"
Depth	27 9/16"
Height of Canopy	3 7/8"
Height of Duct Extended	34" min. - 46" max.
Width of Flue Extension	11 5/8"
Depth of Flue Extension	10 7/16"
Height of Flue Extension	23"
Mounting Height	24" - 30"
Visible Shell Height	3 7/8"
Ceiling Height Max	8 ft. - 9 ft./ Optional 10 ft.
Approximate Shipping Weight	87 lbs.
Electrical
Volts	120
Amps	3.56
Specifications
Description	Island Chimney Hood
Finishes	Stainless Steel
CFM High/Low	480/230
Sones High/Low	9.5/3.0
Duct	6" Round (Vertical)
Lighting	Halogen Quad 20W (included)
Control Features	Multi-Speed Heat Sentry
Control Type	Slide
Air-Mover Type	Centrifugal Blower
Mount Type	Ceiling
Bulb Included	Yes
Filters Included	Aluminum
CFM/Sones Vertical Rectangular	N/A
CFM/Sones Horizontal Rectangular	N/A
CFM/Sones Vertical Round	480/ 9.5
HVI Certified	Yes
