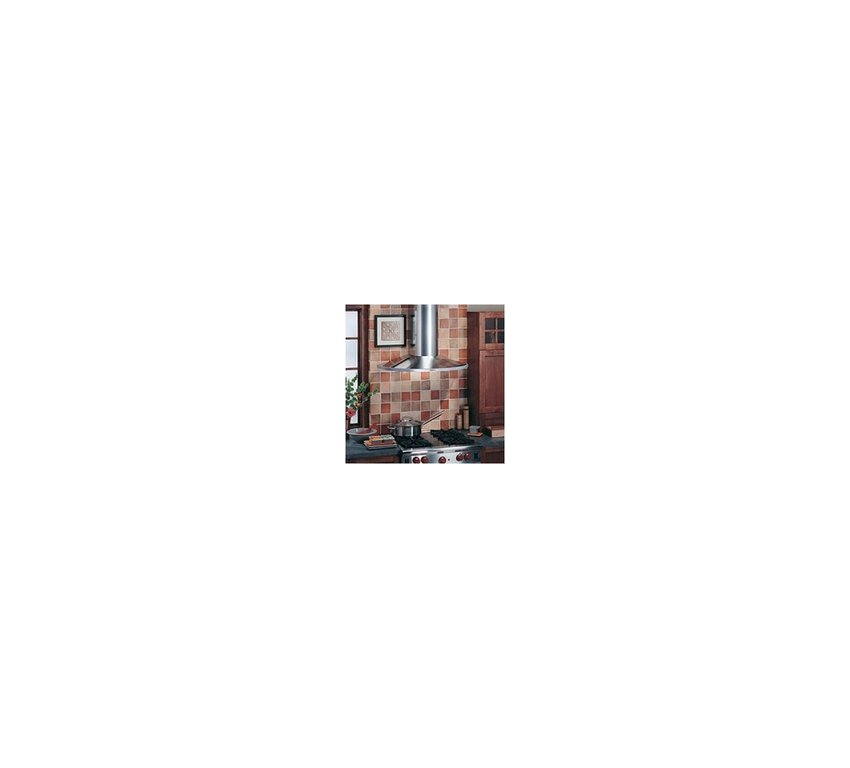

Broan Elite Rangemaster RM519004 36" Wall Mount Hood, 370 CFM Internal Blwr, Convertible to NonDuct

Mouse Over Main Image to Zoom In

• Multi-speed slide control
• Heat Sentry detects excessive heat and adjusts blower speed to high automatically.
• Two 20-watt halogen lamps included (one level).
• Dishwasher-safe aluminum filters feature a quick-release latch and professional-style appearance.
• Ducted/non-ducted telescopic flue accommodates ceiling heights from 8 to 9 feet. Extension flues for higher ceilings are also available for ducted and non-ducted applications.
• Requires separate purchase of a non-ducted kit (RRK51) for indoor exhaust recirculation.
• Install hood so that the bottom of the unit is 24 to 30 inches above cooking surface.
• Mounting height is determined by ceiling height.

Dimensions & Weight
Canopy Width	35 7/16"
Canopy Height	5 1/16"
Height incl. Chimney	32" min./ 46 1/8" max.
Depth	21 7/16"
Flue Width	9 15/16"
Flue Height	19 1/16"
Flue Extension Height	7 7/8" min./ 22" max.
Flue Depth	11 11/16"
Mounting Height	24" - 30"
Visible Shell Height	5 1/16"
Ceiling Height Max	8' to 9' (Opt. 10 ft.)
Power/Ratings
Volts	120
Amps	3.1
CFM	370
Duct	6" Round
Optional Accessory
Flue Extension (for 10 ft. ceiling)	RFX5104
Non-Ducted Kit	RRK51 (includes non-ducted filter)
Non-Ducted Filter	FILTERSQUARE
Features
Description	Chimney Hood
Finishes	Stainless Steel
Lighting	Halogen Dual 20W (included)
Control Features	Multi-speed, Heat Sentry
Control Type	Slide
Air-Mover Type	Centrifugal Blower
Mount Type	Wall
Bulb Included	Yes
Duct	6" Round (Vertical)
Filters Included	Aluminum
CFM/Sones Vertical Rectangular	N/A
CFM/Sones Horizontal Rectangular	N/A
CFM/Sones Vertical Round	370/7.0
HVI Certified	Yes
