Electrolux ICON Designer : E30DD75ESS 30" Downdraft Ventilation with 1,600 CFM External Blower


Part Number: E30DD75ESS

30" Downdraft Ventilation with 1,600 CFM External Blower, Infinite-Speed Blower Control and External Exhaust Duct

Electrolux E30DD75ESS


Part Number: E30DD75ESS

Why shop evVive.com?
  • Authorized Dealer
  • Experienced Sales Team
  • Factory Trained Installers
  • Competitive Package Deals

Today's Price$1399.00
Still Need Help? Call 877-679-2686

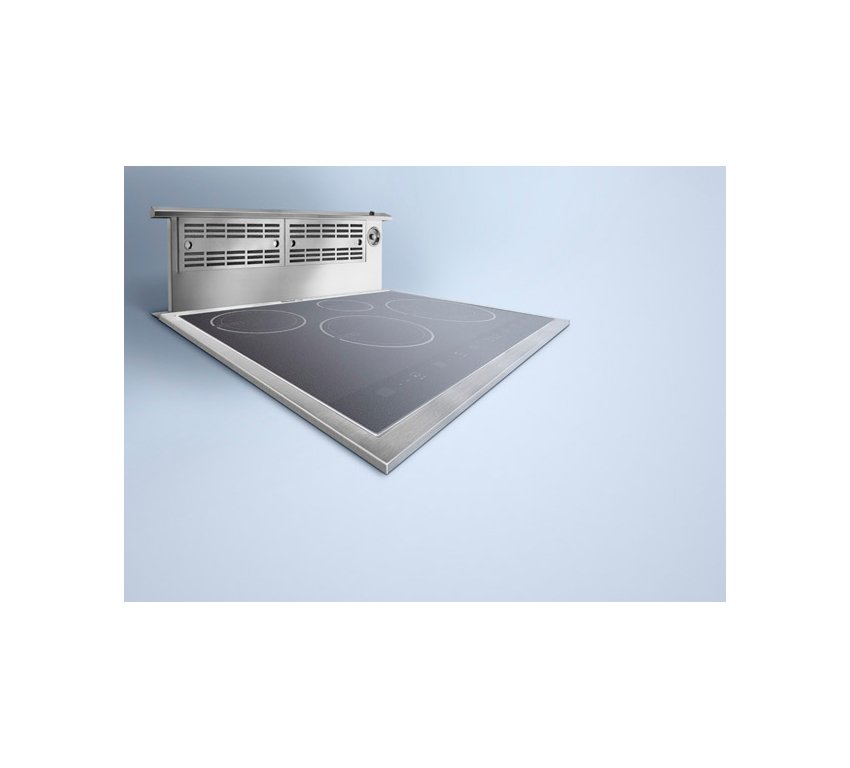

  • Slim Style
  • Designed to work in perfect harmony with your Electrolux ICON gas or electric cooktop.

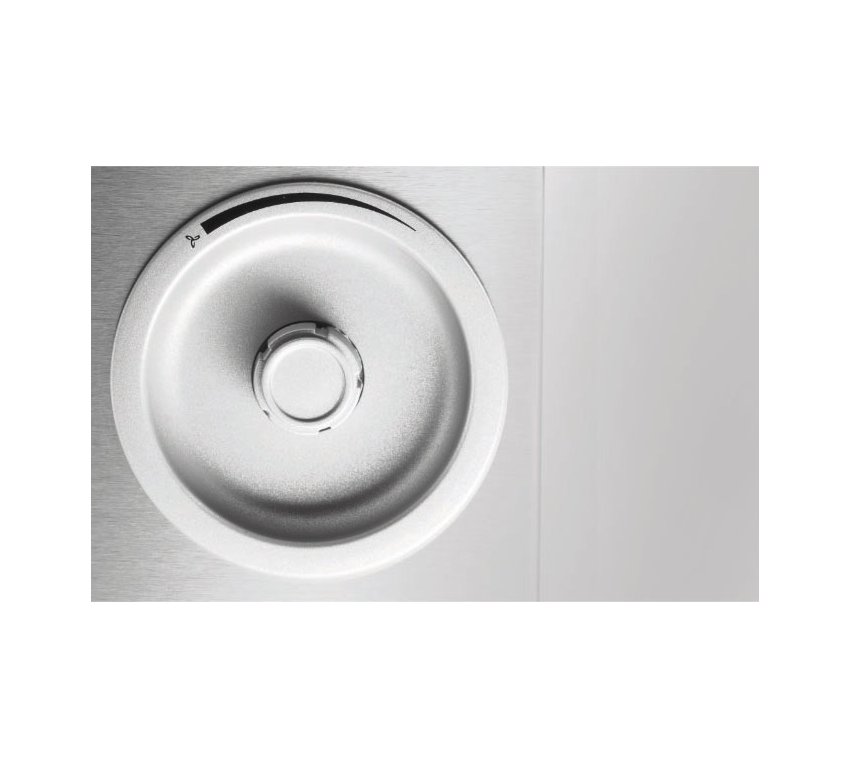

  • Infinite-Speed Blower
  • The ultraquiet blower allows you to dial in the precise blower speed needed.

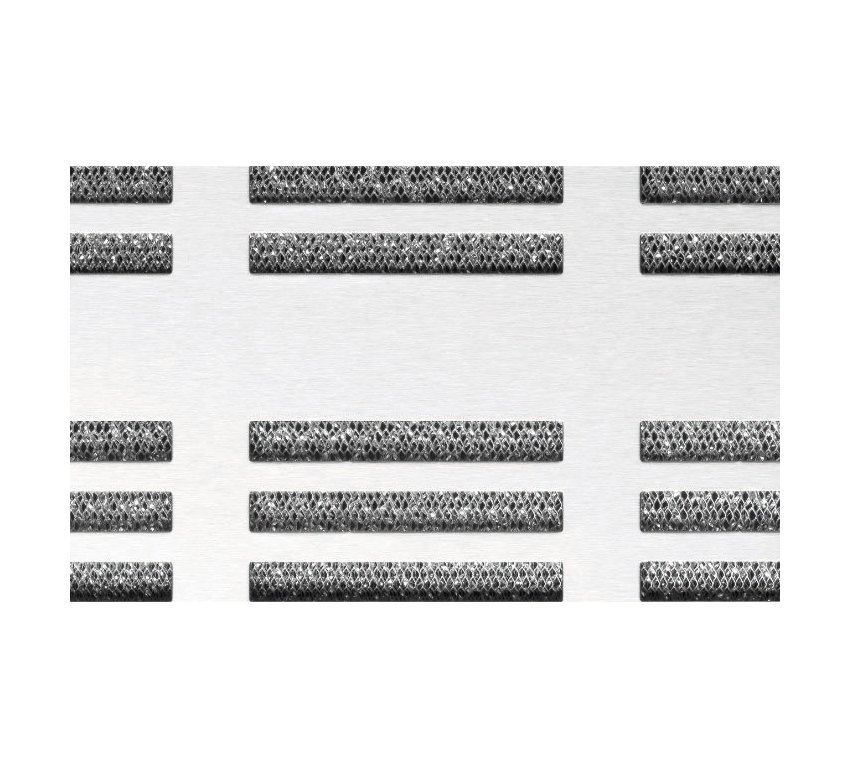

  • Removable, Easy-Clean Filters
  • Filters are easy to remove and clean in your dishwasher to restore to like-new condition.
  • 10" High Intake
  • When activated, the downdraft vent rises 10" to capture even the most stubborn cooking odors.
  • Air Delivery
  • 1600 Cubic Feet per Minute system to match your cooktop's output.
  • Downdraft Specifications
  • Electrical Requirements - 120 Volts AC, 15 or 20 Amps, 60 Hertz
  • Single phase 3-wire, 120 Volt, 60 Hertz AC only electrical supply with ground required.
  • Always consult local and /or national electric codes.
  • Vent unit outside of building only.
  • Vent must be installed in vertical orientation only.
  • 1,600 CFM remote exhaust blower included with downdraft vent. Blower assembly part number is 5304444802 and shipped in separate box.
  • Do not use flexible duct. Round duct instead of rectangular duct recommended, especially when elbows are required.
  • When multiple elbows are necessary, ensure a minimum of 24" of straight duct between any two elbows.
  • Thermal breaks such as short section of nonmetallic duct, should be used in areas of extreme cold.
  • For most efficient airflow exhaust, use a straight run or as few elbows as possible.
  • Cold weather installations should have additional backdraft damper installed.
  • For vent installation refer to Countertop Preparation illustration. Minimum flat countertop area must meet or exceed combined overall width and depth.
Dimensions & Weight
Height10"
Width30"
Diameter of Duct3 1/4"
Shipping Weight48 lbs.

Features
Size48"
Installation TypeCountertop Mounted
Air DischargeDown
Air Delivery1,600 CFM
Intake Area10"
ControlsDial
Infinite-Speed BlowerYes
Dishwasher Safe Aluminum FiltersYes
Exhaust DuctExternal

Electrical
Required120V AC/60 Hz/15 or 20 Amps

Accessories
