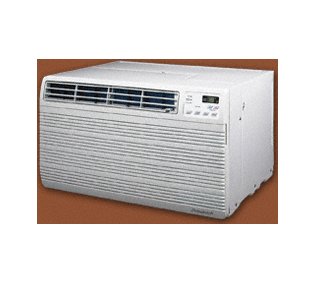

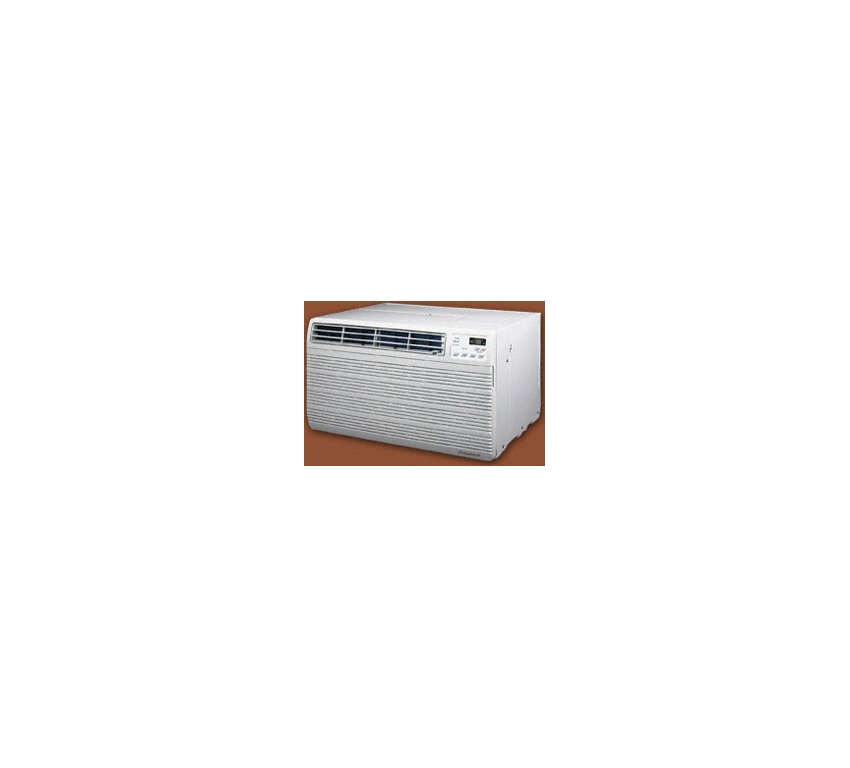

Friedrich Uni-Fit Series US12C10 11,500 BTU Through-the-Wall Air Conditioner


Part Number: US12C10

11,500 BTU Through-the-Wall Air Conditioner with Six-Way Air Flow Control, Stale Air Exhaust, Auto Restart, Seacoast Protection and 12 Hour Programmable Timer

Friedrich US12C10


Part Number: US12C10

Why shop evVive.com?
  • Authorized Dealer
  • Experienced Sales Team
  • Factory Trained Installers
  • Competitive Package Deals

Today's Price$579.99
Still Need Help? Call 877-679-2686

  • Environmentally friendly R-410A refrigerant used in all models
  • Programmable controls with 12-hour timer lets you program on/off times. Remote included.
  • MoneySaver setting saves energy by cycling the fan with the compressor
  • Three cooling speeds, plus fan only setting
  • Six-way air flow control
  • Seacoast protection for added durability in coastal climates
  • Slide-out chassis
  • Permanent filter
  • Sleeves are sold and shipped separately to accommodate new construction and replacement requirements
  • Auto re-start feature
Dimensions & Weights
US Chassis Width24"
US Chassis Depth with Front20 1/8"
US Chassis Minimum Extension into Room3 3/4"
US Chassis Height14 3/8"
USC Sleeve Width25 7/8"
USC Sleeve Depth16 3/4"
USC Sleeve Minimum Extension into Room1/2"
USC Sleeve Height15 1/2"
Through-the-Wall Finished Hole Width26 1/8"
Through-the-Wall Finished Hole Maximum Depth16 1/4"
Through-the-Wall Finished Hole Height15 3/4"
Net Weight80 lbs.
Plug Face/Circuit Rating
Circuit Rating Breaker or T-D Fuse125V - 15A
Plug Face (NEMA#)5-15P
Power Cord Length6 ft.
Specifications
Cooling Capacity11,500 BTU
Heating CapacityN/A
Volts Rated115
Cooling Amps11.2
Cooling Watts1,220
Heating AmpsN/A
Heating WattsN/A
Energy Efficiency Ratio (EER)9.4
Moisture Removal3.8 Pints/hr.
Room Side Air Circulation290 CFM
SleeveUSC

Accessories



Documents & Manuals



   All documents are PDF files. You will need Adobe Acrobat Reader® to view.

US12C10 has an Energy Efficiency Rating of 9.4, uses 917.55 kWhr/yr and has an estimated yearly operating cost of $101.76 calculated from a capacity of 11500 BTUs and an estimated annual operating time of 750 hours.

Your operating costs will depend on your utility rates and use. The estimated operating cost is based on a 2011 national average electricity cost of 11.09 cents per kWh. For more information, visit
