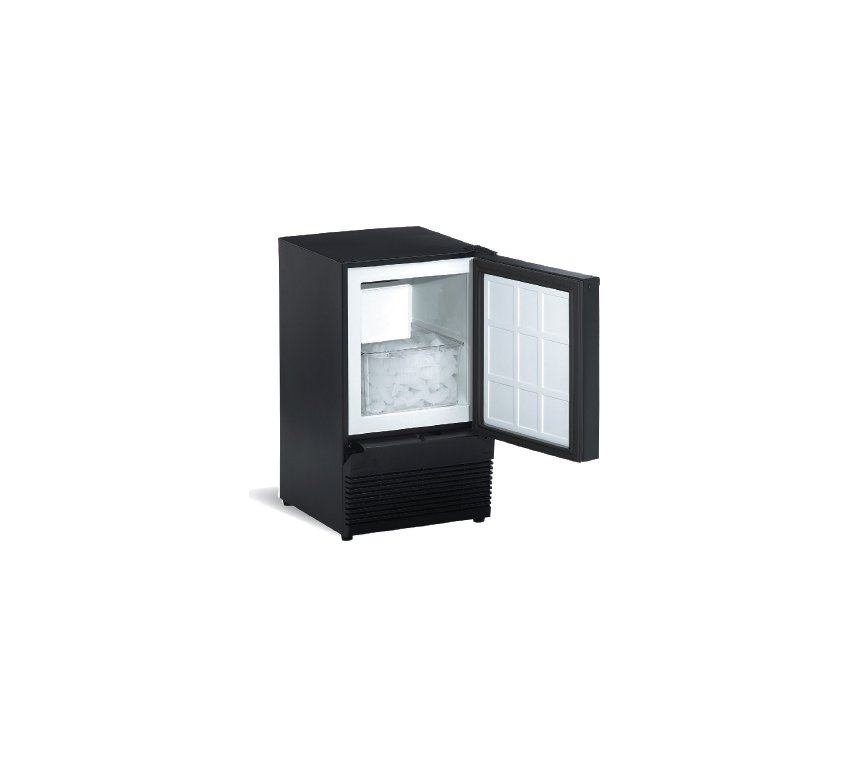

Compact and convenient, the Origins BI series offers both streamlined styling and ADA compliance. As developers and manufacturer of the world's first built-in undercounter residential and light commercial ice maker, U-Line maintains its position at the forefront of the industry.
Accepts a 1/4" flat or raised insert custom door panel.
Meets Americans with Disabilities Act (ADA) height requirements.
Daily ice rate of up to 23 lbs.
Only requires a 1/4" outside diameter water line connection.
Uses less than three gallons of water for approximately 22 lbs. of ice and minimal electricity.
Ice storage capacity: up to 12 lbs. of ice.
Crescent cube size 1/2" W x 3/4" H x 2-1/2" L.
No drain required allows for easy, convenient, and inexpensive installation.
No drain required allows for easy, convenient, and inexpensive installation.
Only requires a 1/4" outside diameter water line connection.
Daily ice rate of up to 23 lbs.
Ice storage capacity: up to 12 lbs. of ice.
Crescent cube size 1/2" W x 3/4" H x 2-1/2" L.
Uses less than three gallons of water for approximately 22 lbs. of ice and minimal electricity.
Meets Americans with Disabilities Act (ADA) height requirements.
Accepts a 1/4" flat or raised insert custom door panel.

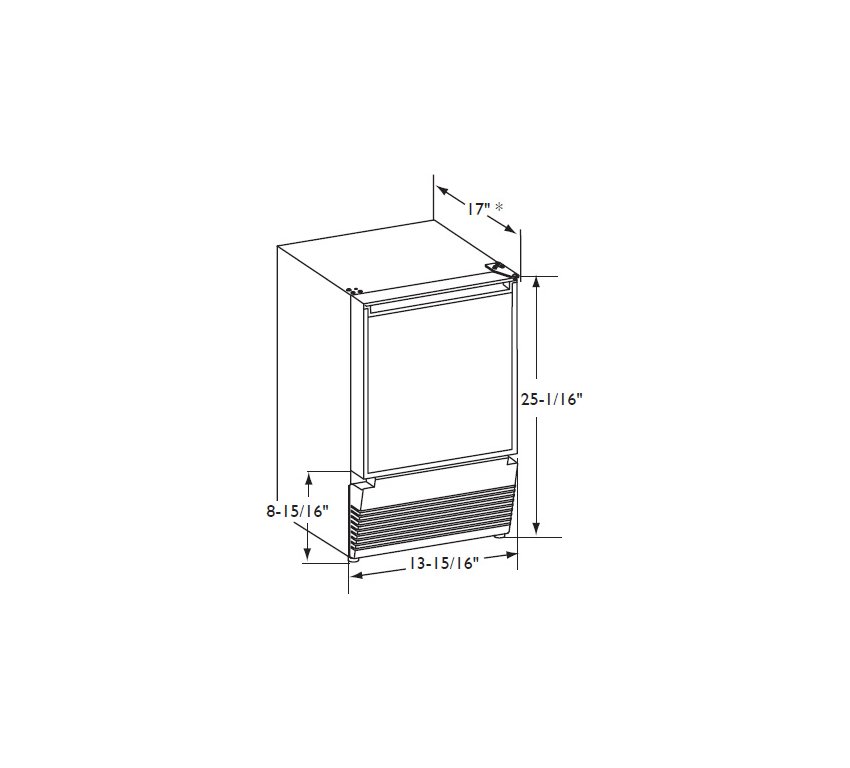

Dimensions & Weight
Width
13 15/16"
Depth with Door
17"
Depth without Door
14 3/8"
Height
24 3/4"
Grille Height
8 1/2"
ADA Height Compliant
Yes
Approx. Shipping Weight
66 lbs.
Electrical Specs
220/230V 50/60Hz CE Mark
Yes
Run Amps
2.5
Max Start Amps
18.0
Features & Specifications
Accepts 1/4" Flat or Raised Insert Custom Door Panel
