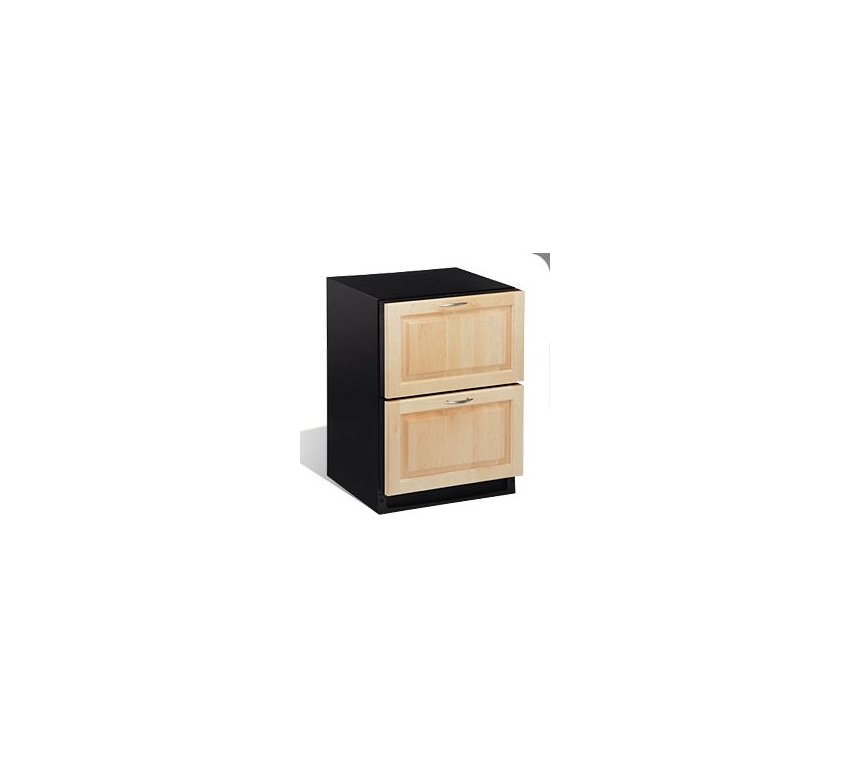

U-Line : C2275DWROL-00 24" Refrigerator Drawer

Mouse Over Main Image to Zoom In

• Top drawer is dedicated to refrigeration with exclusive organizational features.
• Accepts a 1/4" insert flat or raised insert custom door panel. If installed with insert or no panels, 2 integrated handles part number 26070-01-BLK must be ordered.
• Product designed for built-in installation. Anchoring required.
• Contemporary toe kick grille integrates seamlessly.
• Full extension, heavy-duty drawer slides allow easy access to back of drawers.
• Stores up to 10 lbs. of ice.
• Daily ice rate of up to 6 lbs.
• Lower drawer equipped with ice maker and functional frozen food storage.
• This overlay model is equipped with 3/4" full overlay custom door panel capabilities for ease of installation. No additional overlay kit needs to be purchased.
• Patented frost-free technology.
• Touch Digital Control Technology allows you to set and see the refrigeration temperature.
• Cubic capacity: Top - approx. 3 cubic feet ; Lower - approx. 2 cubic feet.

• Standard 24" width with two drawers
• Can be installed into a standard 24" wide cabinet opening
• Touch Control Digital Technology
• Full-featured, easy-view command center - right at your fingertips
• Easy to set and see the refrigerator temperature
• Manages key model functions and provides user alerts
• Patented frost-free technology
• Top drawer is dedicated to refrigeration, with exclusive organizational features
• Lower drawer is equipped with an ice maker and provides frozen food storage
• Daily ice rate of up to 6 lbs
• Removable ice bucket stores up to 10 lbs of ice
• No drain required
• Easy and inexpensive to install
• Only requires a 1/4" outside diameter water line for the ice maker
• Adjustable "Slide and Divide"
• Located in refrigerator (top) drawer. Provides the ability to "divide" the drawer for item storage.
• Clear organizing bin in top drawer
• Holds wine, 2-liter bottles and other items. Slides back and forth, allowing easy access to items located beneath the "organizing bin"
• Stainless stell refrigerator drawer interior
• Sleek designer appearance in the top refrigerator drawer
• Corrosion resistant
• Built-in
• Provides a custom look
• No additional clearance around sides, top or rear for ventilation. Do not obstruct the front grille.
• Black liner
• Elegant visual appearance
• Heavy-duty, full extension drawer slides
• Allow easy accessibility to contents in the back of drawers
• Vinyl-clad cabinet
• Black vinyl cabinet on all models provides a rich, textured look
• More resistant to scratching, peeling or flaking
• Recessed interior lights
• Automatically illuminates when the door is opened
• Leveling legs
• More precise undercounter fit, durable, factory-installed
• Sabbath or "Black Out" mode
• Easily turn off all lights and control displays
• Contemporary grille design
• Integrates seamlessly with surrounding cabinets

Dimensions
	Width	23 15/16"
	Overall Depth - Stainless Steel	26 3/16"
	Overall Depth - Overlay	23 11/16"
	Overall Depth with 3/4" Overlay Frame	24 7/16"
	Depth without Handle - Stainless Steel	23 3/4"
	Depth without Door	21 7/16"
	Full Retract Height	34 1/8"
	Full Extend Height	35 1/8"
	Grille Height	3 3/8"
Capacity
	Refrigeration Capacity	3.0 cu. ft.
	Freezer Capacity	2.0 cu. ft.
	Total Capacity	5.0 cu. ft.
	Ice Maker Production	6 lbs. per day
	Ice Maker Storage	10 lbs.
Specifications
	Ice Cube Type	Crescent
	Drain Required	No
	Defrost	Frost-Free
	Run Amps	2.5
	Maximum Start Amps	26.5
Appearance
	Interior Color	Black
Features
	Temperature Control	Touch Control Digital Technology
	Interior Light	Yes
	Audible Door Open alarm	Yes
	Sabbath or "Black Out" Feature	Yes
	Leveling Legs Included	Yes
