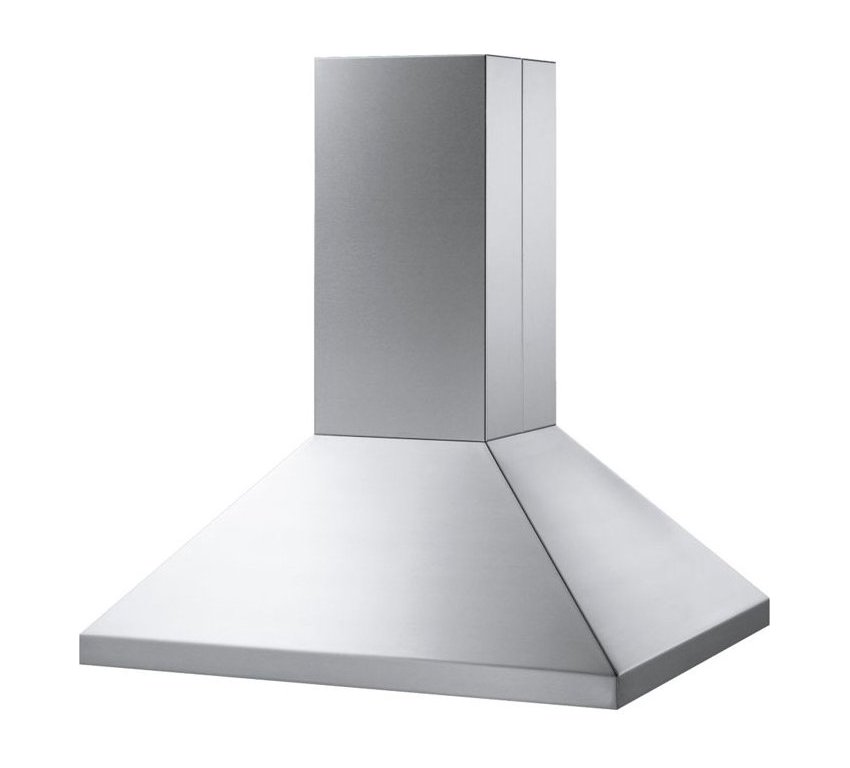

Viking DCIH5404SS 54" Designer Series Chimney Island Hood

Mouse Over Main Image to Zoom In

• Appearance and Design
• Heavy-duty construction; elegant design and styling
• Virtually seamless design with no visible screws
• Halogen lights for better visibility and efficiency
• Heat sensor that turns the ventilator on full power when cooking temperatures reach uncomfortable levels
• Delay feature allows consumer to set the ventilator to shut off on its own from 10 to 30 minutes later
• 12-hour timer built into ventilator controls; excellent for use with Designer Series cooking products
• Interior- or Exterior-Power Ventilators
• Choose from interior- or exterior-power ventilators
• One ventilator, one duct run for any size hood/ventilator
• Must use Viking ventilator kits with Viking hoods; use of non-Viking kits voids the product warranty
• Easy Cleanup
• Mesh filters made entirely of stainless steel for durability and long life; efficiently remove grease and heated vapors from the air
• Dishwasher-safe filters are easily removed for quick cleaning
• Design of low profile filter system means less interior hood space to be cleaned
• Interior of rangehood canopy has stainless steel liner for increased rigidity, seamless appearance, and easy cleaning
• Optional Accessories Available
• Island Hood Duct Covers
• Accessory Rail
• Exclusive Finishes
• Available in Stainless Steel (SS), Black (BK), White (WH), Biscuit (BT), Stone Gray (SG), and Graphite Gray (GG)
• For brass trim, order Accessory Rail in brass; all brass components have a protective coating for maintenance-free normal use
• Warranty Highlights
• One-year full covers complete product
• Five-year limited - all ventilator motors
• Ninety-day limited - cosmetic parts such as glass, painted items, and decorative items
• Interior/Exterior Blowers Available Under "Accessories" Tab

Specifications
	Exhaust Capacity	1200 int./1200 ext./1500 ext. CFM
	Electrical Requirements	120VAC/60Hz, 8.6/5.6/6.4 Amps
	Spacers	2
	Mesh Filters	3
	Halogen Lights	6
	Heat Lamp (250W)	N/A
Recommended Duct Sizes
	DIV1200 (1200 CFM Interior)	10" Round
	DEV1200 (1200 CFM Exterior)	10" Round
	DEV1500 (1500 CFM Exterior)	10" Round
Overall Dimensions
	Overall Width	53 7/8" (136.8 cm)
	Overall Height	14" (35.6 cm)
	Overall Depth	30" (76.2 cm)
