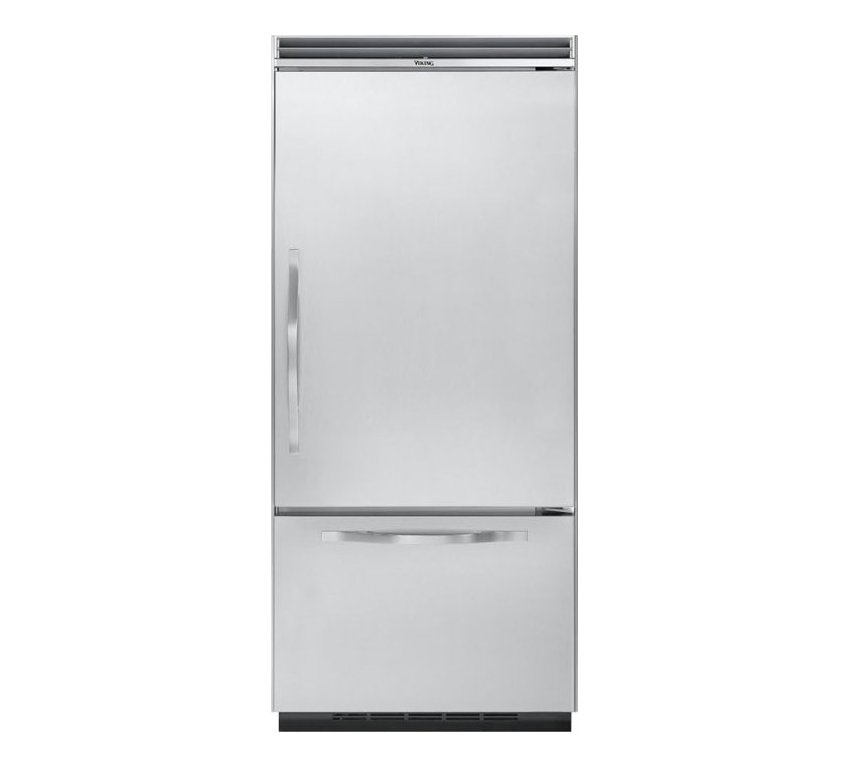

Viking DDBB363RSS 36" Designer Series Bottom-Mount Refrigerator/Freezer - Stainless Steel


Part Number: DDBB363RSS

36" Built-in Bottom-Freezer Refrigerator with ProChill Temperature Management, Convertible Meat Savor/Produce Drawer, Ice Maker and Designer Door Style: Stainless Steel

Viking DDBB363RSS


Part Number: DDBB363RSS

Our Viking sales territory includes NY, NJ, PA, DE, and WV. For more details call us at 877-679-2686.

Why shop evVive.com?
  • Authorized Dealer
  • Experienced Sales Team
  • Factory Trained Installers
  • Competitive Package Deals

Today's Price$6899.00
Still Need Help? Call 877-679-2686

  • Storage Capacity
  • 20.3 cu. ft. total
  • 15.2 cu. ft. refrigerator
  • 5.1 cu. ft. freezer
  • ProChill Temperature Management System
  • Variable speed single compressor system includes the quietest, most technologically advanced compressor on the market
  • Electronic controls maintain temperature within 1 degree F
  • Multi-channel airflow system removes odor and excess humidity
  • Frost-Free Refrigerator Professional Features
  • Fresh food items are at or above waist level, allowing less bending and stooping to retrieve food
  • Convertible Meat Savor/Produce Drawer with roller-bearing glides can be set for either produce or long-term fresh meat storage with its separate temperature control
  • Two moisture adjustable, see-through produce drawers for large-item storage
  • One full-width and four half-width adjustable tempered-glass shelves to allow customized shelf placement
  • Two in-the-door magnetically sealed dairy compartments with see-through lift-up covers
  • Additional storage in five large aluminum door bins with tempered glass fronts - four are adjustable
  • Full lighting illuminates interior when door opens
  • Frost-Free Freezer Professional Features
  • Adaptive defrost controls the timing of the defrost periods, instead of an electromechanical defrost timer
  • Main freezer compartment pulls out like a drawer for easy access to bulky frozen foods
  • Factory-installed automactic ice maker feature large capacity ice bucket
  • Door alarm sounds and glows to warn that the fresh food door and/or freezer drawer have been ajar for three minutes and that the temperature has risen above normal operating range
  • Easy Maintenance and Cleanup
  • Top-mounted and front venting sealed refrigeration system works silently and efficiently
  • 24" depth keeps items in back within comfortable reach
  • Spillproof tempered-glass shelves contain spills and leaks, preventing leakage to lower shelves and drawers
  • Power interruption switch behind consumer-removable top grille completely turns off power to unit for safe cleaning and light bulb replacement
  • Adjustable-height lower kickplate removes to provide easy access to evaporator pan
  • Professional-Style Construction
  • Design and basic dimensions provide built-in appearance with standard cabinetry
  • Exterior moisture control system prevents condensation
  • Easy-opening doors
  • Dual-magnet door seal system automatically closes door within 30 degrees of the refrigerator or freezer compartment
  • Door stops are factory set at 110 degree swing; easily adjust to 90 or 120 degree swing
  • White interior with stylish accents
  • Black lower kickplate
  • Removable, stainless steel-finished upper grille
  • Thin wall and door construction, coupled with high-density insulation, provides maximum interior space
  • Four independent, front-adjustable levelers make installation quick and easy
  • True 24" deep product - door and cabinet design allows the refrigerator to fit flush into a 24" deep installation cutout, thus allowing a uniform installation that blends into the cabinetry
  • Standard Accessories
  • See-through egg container with carrier holds up to 24 eggs
  • Glass butter tray and cover
  • Optional Accessories Available
  • Stainless steel side panels (DSSPL3, DSSPR3)
  • Stainless steel top kit (TOP-36)
  • Installation Accessories Available
  • 72" wide stainless steel finished upper grille kit (DBRTGK72-SS)
  • Side panel hardware kit (SPHKDS)
  • Exclusive Finishes
  • Available in Stainless Steel (SS), Black (BK), White (WH), Biscuit (BT), Stone Gray (SG), and Graphite Gray (GG)
  • May be ordered with Brass Trim Option (BR) for handles
  • Warranty Highlights
  • Two-year full covers complete unit
  • Six-year full - sealed refrigeration system and automatic ice maker
  • Twelve-year limited - sealed refrigeration system (includes compressor, condenser, dryer/strainer, evaporator, and connecting tubing)
  • Ninety-day limited - cosmetic parts such as glass, painted items, and decorative items
Our Viking sales territory includes NY, NJ, PA, DE, and WV. For more details call us at 877-679-2686.
Specifications
Electrical Requirements115 Volt, 60 Hz, 15 Amp Dedicated Circuit; 3-Wire Cord With Grounded 3-Prong Plug Attached to Product
Maximum Amp Usage9.9 Amps
Inlet Water Requirements1/4" Copper Tubing Inlet Waterline; Minimum 20 psi; Maximum 120 psi
Approximate Shipping Weight565 Lbs. (254.3 kg)

Overall Interior Dimensions
Refrigerator15.2 Cu. Ft. (431 Liters)
Freezer5.1 Cu. Ft. (145 Liters)
Total Capacity20.3 Cu. Ft. (576 Liters)

Overall Dimensions
Width36" (91.5 cm)
Min. Height from Bottom82 3/4" (210.2 cm)
Max. Height from Bottom84 1/16" (213.5 cm)
Depth from Rear to Front Edge of Side Trim23 3/8" (59.4 cm)
Depth to Front of Top Grille24" (61.0 cm)
Depth to Front of Handle Endcap26" (66.0 cm)

Cutout Dimensions
Width36" (91.5 cm)
Min. Height82 7/8" (210.5 cm)
Max. Height84 1/16" (213.5 cm)
Depth24" (61.0 cm) Min.
