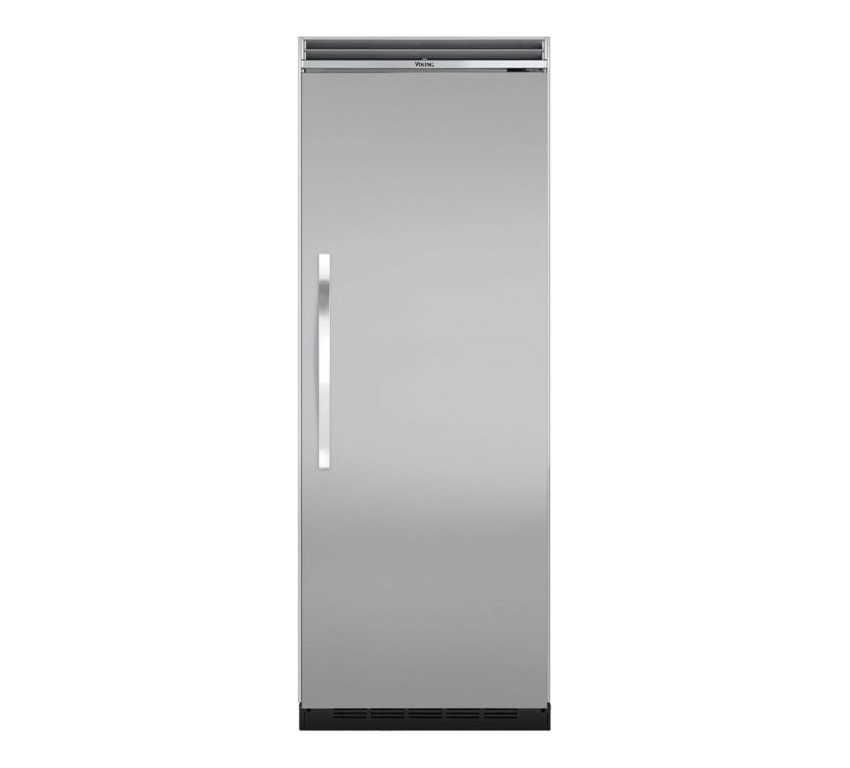

Viking DDFB304RSS 30" Designer Series All Freezer - Stainless Steel


Part Number: DDFB304RSS

30" Built-in Upright Freezer with ProChill Temperature Management, Ice Maker, Electronic Controls and Designer Door Style: Stainless Steel

Viking DDFB304RSS


Part Number: DDFB304RSS

Our Viking sales territory includes NY, NJ, PA, DE, and WV. For more details call us at 877-679-2686.

Why shop evVive.com?
  • Authorized Dealer
  • Experienced Sales Team
  • Factory Trained Installers
  • Competitive Package Deals

Today's Price$5799.00
Still Need Help? Call 877-679-2686

  • Storage Capacity
  • 15.9 cu. ft. total
  • ProChill Temperature Management System
  • Variable speed single compressor system includes the quietest, most technologically advanced compressor available
  • Electronic controls maintain temperature within 1°F
  • Multi-channel airflow system removes odors and excess humidity
  • Professional Features
  • Adaptive defrost controls the timing of the defrost periods instead of an electromechanical defrost timer.
  • Factory-installed automatic icemaker
  • One full-width ice storage drawer with two separate metal ice bins
  • Six adjustable half-width wire shelves
  • Two full-width slide-out wire baskets with tempered glass fronts
  • Full-extension precision ball-bearing glides on all baskets and drawers
  • Additional storage in three large adjustable aluminum door bins with tempered glass fronts
  • All metal freezer interior
  • Easy Maintenance and Cleanup
  • Top-mounted and front venting sealed refrigeration system works quietly and efficiently
  • 24" depth keeps items within comfortable reach
  • Power interruption switch behind consumer-removable top grille completely turns off power to unit for safe cleaning, light bulb replacement, or servicing
  • Adjustable-height lower kickplate removes to provide easy access to evaporator pan
  • Professional-Style Construction
  • Design and basic dimensions provide built-in appearance with standard cabinetry
  • Automatic energy saving exterior moisture control system prevents condensation
  • Dual-magnet door seal system with spring-loaded self-closing feature
  • Door stops factory set at 110 degree swing; easily adjust to 90 or 120 degree swing
  • White interior with stylish accents
  • Black lower kickplate
  • Removable, stainless steel-finished upper grille
  • Open door alarm sounds and glows to warn that door has been ajar for three minutes
  • Thin wall and door construction, coupled with high-density insulation, provides maximum interior space
  • Four independent, front-adjustable levelers make installation quick and easy
  • True 24" deep product - door and cabinet design allows the refrigerator to fit flush into a 24" deep installation cutout, thus allowing a uniform installation that blends into the cabinetry
  • Optional Accessories Available
  • Stainless steel side panels (DSSPL2, DSSPR2)
  • Stainless steel top kits (TOP-30)
  • Installation Accessories Available
  • Grille kits in 60" and 66" widths
  • Exclusive Finishes
  • Available in Stainless Steel (SS), Black (BK), White (WH), Biscuit (BT), Stone Gray (SG), and Graphite Gray (GG)
  • May be ordered with Brass Trim Option (BR) for door handles
  • Warranty Highlights
  • Two-year full - covers complete unit
  • Six-year full - sealed refrigeration system and automatic ice maker
  • 12-year limited - sealed refrigeration system (includes compressor, condenser, dryer/strainer, evaporator, and connecting tubing)
  • Ninety-day limited - cosmetic parts such as glass, painted items and decorative items
Our Viking sales territory includes NY, NJ, PA, DE, and WV. For more details call us at 877-679-2686.
Specifications
Electrical Requirements115 Volt, 60 Hz, 15 Amp Dedicated Circuit; 3-Wire Cord With Grounded 3-Prong Plug Attached to Product
Maximum Amp Usage9.1 Amps
Inlet Water Requirements1/4" Copper Tubing Inlet Waterline; Minimum 20 psi; Maximum 120 psi
Approximate Shipping Weight525 Lbs. (236.3 kg)

Overall Interior Dimensions
RefrigeratorN/A
Freezer15.9 Cu. Ft. (450 Liters)
Total Capacity15.9 Cu. Ft. (450 Liters)

Overall Dimensions
Width30" (76.2 cm)
Min. Height from Bottom82 3/4" (210.2 cm)
Max. Height from Bottom84 1/16" (213.5 cm)
Depth to Front Edge of Side Trim23 13/16" (60.5 cm)
Depth to Front of Top Grille24" (61.0 cm)
Depth to Front of Handle26" (66.0 cm)

Cutout Dimensions
Width30" (76.2 cm)
Min. Height82 7/8" (210.5 cm)
Max. Height84 1/16" (213.5 cm)
Depth24" (61.0 cm) Min.
