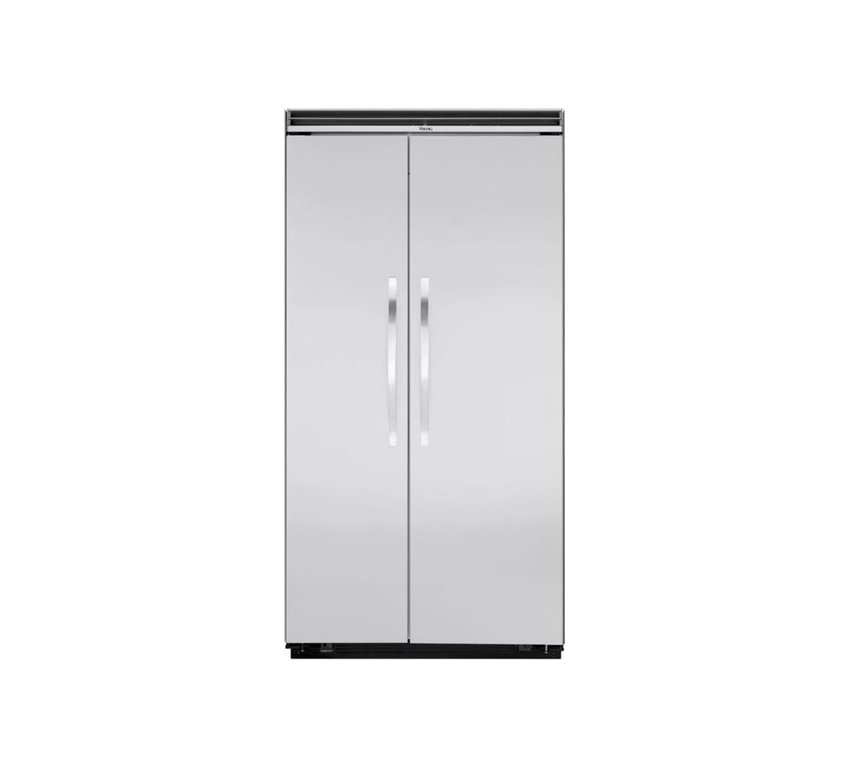

Viking DDSB423SS 42" Designer Series Side-by-Side Refrigerator/Freezer - Stainless Steel

Mouse Over Main Image to Zoom In

• Storage Capacity
• 24.0 cu. ft. total
• 15.0 cu. ft. refrigerator
• 9.0 cu. ft. freezer
• ProChill Temperature Management System
• Variable speed single compressor system includes the quietest, most technologically advanced compressor on the market
• Electronic controls maintain temperature to within 1°F
• Multi-channel airflow system removes odors and excess humidity
• Frost-Free Refrigerator Professional Features
• Convertible MeatSavor/Produce Drawer with precision ball-bearing glides can be set for either produce or long-term fresh meat storage with its separate temperature control
• Full-width, moisture-adjustable, see-through produce drawer with precision ball-bearing glides for large-item storage
• Five adjustable, full-width tempered glass shelves allow customized shelf placement
• Conveniently located deli drawer stores meats and cheeses at waist level
• Two in-the-door magnetically sealed dairy compartments with see-through, lift-up covers
• Additional storage in four large, adjustable aluminum door bins with tempered glass fronts
• Full lighting illuminates interior when door opens
• Frost-Free Freezer Professional Features
• Adaptive defrost controls the timing of the defrost periods instead of an electromechanical defrost timer
• Factory-installed automatic ice maker features full-width, large capacity ice bucket
• Three adjustable wire shelves for custom storage
• Two slide-out, large-capacity wire baskets provide easy storage viewing
• Additional storage in three large aluminum door bins with tempered glass fronts
• Door alarm sounds and glows to warn that the refrigerator and/or freezer door have been ajar for three minutes and that the temperature has risen above normal operating range
• Easy Maintenance and Cleanup
• Top-mounted and front venting sealed refrigeration system works silently and efficiently
• 24" depth keeps items in back within comfortable reach
• Spillproof, tempered glass shelves contain spills to aid cleanup
• Power interruption switch behind consumer-removable top grille completely turns off power to unit for safe cleaning and light bulb replacement
• Adjustable-height lower kickplate removes to provide easy access to evaporator pan
• Professional-Style Construction
• Design and basic dimensions provide built-in appearance with standard cabinetry
• Exterior moisture control system preventing condensation
• Easy-opening doors
• Dual-Magnet door seal system with spring-loaded self-closing feature
• Door stops factory set at 110-degree swing; easily adjust to 90 or 120-degree swing
• White interior with stylish accents
• Black lower kickplate
• Removable, stainless steel upper grille
• Thin wall and door construction, coupled with high-density insulation, provides maximum interior space
• Four independent, front-adjustable levelers make installation quick and easy
• True 24" deep product - door and cabinet design allows the refrigerator to fit flush into a 24" deep installation cutout, thus allowing a uniform installation that blends into the cabinetry
• Standard Accessories
• See-through egg container with carrier holds up to 24 eggs
• Glass butter tray and cover
• Optional Accessories Available
• Stainless steel side panels (DSSPL2, DSSPR2)
• Stainless steel top kit (TOP-42)
• Installation Accessories
• Side panel hardware kit (SPHKDS)
• Exclusive Finishes
• Available in Stainless Steel (SS), Black (BK), White (WH), Biscuit (BT), Stone Gray (SG), Graphite Gray (GG)
• May be ordered with Brass Trim Option (BR) for door handles
• Warranty Highlights
• Two-year full covers complete unit
• Six-year full - sealed refrigeration system and automatic ice maker
• Twelve-year limited - sealed refrigeration system (includes compressor, condenser, dryer/strainer, evaporator, and connecting tubing)
• Ninety-day limited - cosmetic parts such as glass, painted items, and decorative items

Specifications
	Electrical Requirements	115 Volt, 60 Hz, 15 Amp Dedicated Circuit; 3-Wire Cord With Grounded 3-Prong Plug Attached to Product
	Maximum Amp Usage	9.9 Amps
	Inlet Water Requirements	1/4" Copper Tubing Inlet Waterline; Minimum 20 psi; Maximum 120 psi
	Approximate Shipping Weight	642 Lbs. (289.0 kg)
Overall Interior Dimensions
	Refrigerator	15.0 Cu. Ft. (425 Liters)
	Freezer	9.0 Cu. Ft. (255 Liters)
	Total Capacity	24.0 Cu. Ft. (680 Liters)
Overall Dimensions
	Width	42" (106.7 cm)
	Min. Height from Bottom	82 3/4" (210.2 cm)
	Max. Height from Bottom	84 1/16" (213.5 cm)
	Depth to Front Edge of Side Trim	22 3/8" (59.4 cm)
	Depth to Front of Top Grille	24" (61.0 cm)
	Depth to Front of Handle	26" (66.0 cm)
Cutout Dimensions
	Width	42" (106.7 cm)
	Min. Height	82 7/8" (210.5 cm)
	Max. Height	84 1/16" (213.5 cm)
	Depth	24" (61.0 cm) Min.
