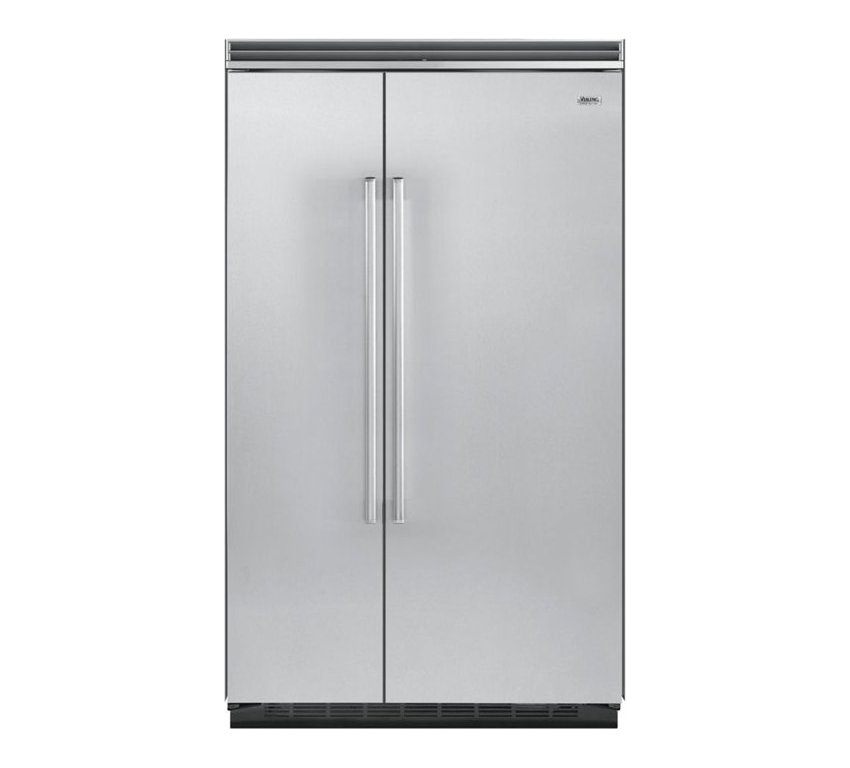

Viking Designer Series DDSB548SS

• Storage Capacity
• 27.4 cu. ft. total.
• 18.5 cu. ft. refrigerator.
• 8.9 cu. ft. freezer.
• ProChill Temperature Management System
• Variable speed DC Overdrive compressor is one of the quietest, most technologically advanced compressors available.
• Electronic controls maintain temperature to within 1°F (.83°C).
• Multi-channel airflow system and Odor Eliminator Evaporator removes odors and excess humidity.
• Plasmacluster Ion Air Purifier
• Eliminates airborne bacteria and mold spores.
• Removes odors.
• Enhances food preservation.
• Never needs replacing / no filter required.
• Plasmacluster is a trademark of Sharp Corporation.
• Frost-Free Refrigerator Professional Features
• Adjustable Cold Zone Drawer with precision ball-bearing glides can be set for either produce or long-term fresh meat storage with its separate temperature control.
• Two Adjustable Humidity Zone drawers with precision ball-bearing glides for large-item storage.
• Four adjustable, full-width tempered glass shelves allow customized shelf placement.
• Conveniently located deli drawer stores meats and cheeses at waist level.
• Two in-the-door magnetically sealed dairy compartments with see-through, lift-up covers.
• Additional storage in four large, adjustable aluminum door bins with tempered glass fronts.
• Full lighting illuminates interior when door opens.
• Frost-Free Freezer Professional Features
• Adaptive defrost controls the timing of the defrost periods instead of an electromechanical defrost timer.
• Factory-installed automatic ice maker features full-width, large capacity ice bucket.
• Three adjustable wire shelves for custom storage.
• Two slide-out, large-capacity wire baskets provide easy storage viewing.
• Additional storage in three large aluminum door bins with tempered glass fronts.
• Door alarm sounds and glows to warn that the refrigerator and/or freezer door have been ajar for three minutes and that the temperature has risen above normal operating range.
• Easy Maintenance and Cleanup
• Super Clog-Resistant Condenser is maintenance free under normal use.
• Top-mounted and front venting sealed refrigeration system works silently and efficiently.
• 24" depth keeps items in back within easy reach.
• Spillproof, tempered glass shelves contain spills to aid cleanup.
• Power interruption switch behind consumer-removable top grille completely turns off power to unit for safe cleaning, light bulb replacement, or servicing.
• Adjustable-height lower kickplate removes to provide easy access to evaporator pan.
• Professional-Style Construction
• Tru-Flush Design allows refrigerator/freezer to fit flush into 24" deep installation cutout.
• Design and basic dimensions provide built-in appearance with standard cabinetry.
• Exterior moisture control system preventing condensation.
• Dual-Magnet door seal system with spring-loaded self-closing feature.
• Door stops factory set at 110-degree swing.
• Black lower kickplate.
• Thin wall and door construction, coupled with high-density insulation, provides maximum interior space.
• Four independent, front-adjustable levelers make installation quick and easy.
• Standard Accessories
• See-through egg container with carrier holds up to 24 eggs.
• Glass butter tray and cover.
• Optional Accessories
• Stainless Steel Side Panels (DSSPL2, DSSPR2)
• Stainless Steel Top Kit (TOP-48)
• Exclusive Finishes
• Available in Stainless Steel (SS), Black (BK), White (WH), Metallic Silver (MS), Graphite Gray (GG), Stone Gray (SG), Taupe (TP), Biscuit (BT), Cotton White (CW), Oyster Gray (OG), Golden Mist (GM), Lemonade (LE),
• Sage (SA), Mint Julep (MJ), Sea Glass (SE), Iridescent Blue (IB), Viking Blue (VB), Pumpkin (PM), Racing Red (RR), Apple Red (AR), Burgundy (BU), Plum (PL), Chocolate (CH), Cobalt Blue (CB)
• Warranty Highlights
• Two year full warranty - complete unit.
• Six-year full warranty - sealed system.
• Lifetime limited - stainless steel exterior.
• Twelve-year limited - sealed system.
• Ninety-day limited - cosmetic parts such as glass, painted items, and decorative items.
• Warranty valid on Viking products shipped within the United States and Canada.
