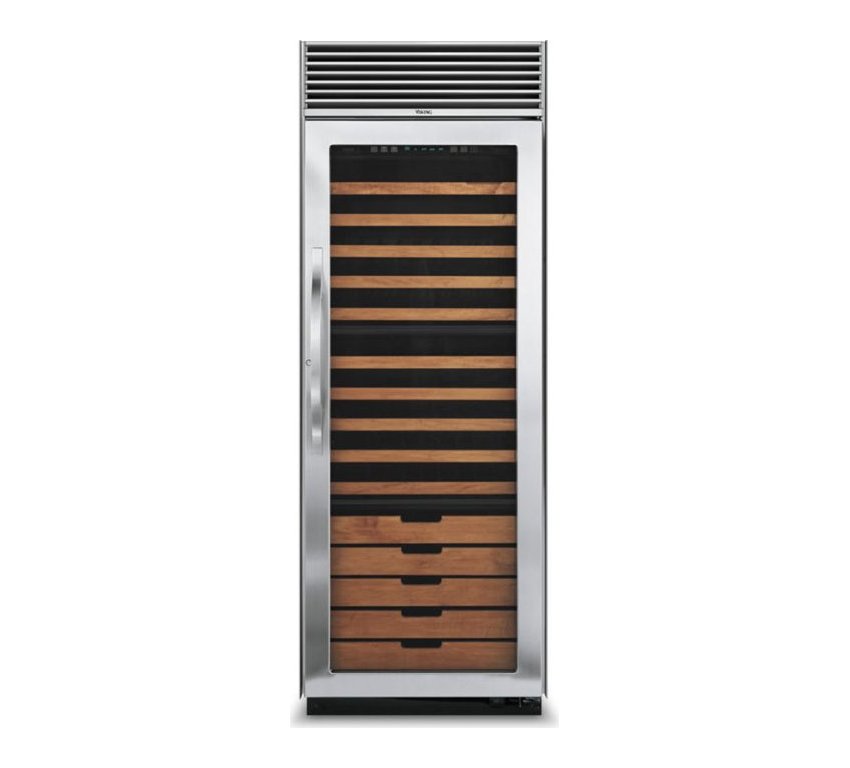

Viking DDWB300RSS 30" Designer Series Full Height Wine Cellar

Mouse Over Main Image to Zoom In

• Temperature Control
• Exclusive TriTemp Storage System provides three independent temperature zones
• Electronic Control Center constantly monitors and maintains the set temperature in each zone within 1.5 degrees F (.83 degrees C)
• Exclusive glass control pad
• Shelving/Capacity
• 15 shelves accommodate up to 150 full-size wine bottles horizontally, keeping corks moist
• Solid maple facings may be finished to coordinate with surrounding cabinetry
• Protection
• Maintains constant 60% humidity level
• Ultraviolet-resistant tempered glass and black interior protects wine from harmful light
• Lower zone has raised maple facings to add additional ultraviolet protection
• Low-intensity interior lighting
• High-temperature and open-door alarms may be connected to a home security system
• Keyed lock on door for extra security
• Easy Maintenance and Cleanup
• Fully removable shelves for easy cleaning
• Removable upper grille
• Power interruption switch completely turns off power to unit for safe cleaning and light tube replacement
• Front venting sealed refrigeration system works silently and efficiently
• Adjustable-height lower kickplate removes to provide easy access to evaporator pan
• Professional-Style Construction
• Design and basic dimensions provide built-in appearance with standard cabinetry
• Dual-magnet/spring assist door seal system automatically closes wine cellar door
• Door stops are factory set at 110 degree swing; easily adjust to 90 or 120 degree swing
• Must be ordered either right or left hinge
• Finish Options
• Available in a clear or fluted glass door
• May be ordered with brass trim option for the door handle
• Accessories Available
• Stainless steel side panels (DSSP2, DSSPR2)
• Stainless steel top kit (TOP-30)
• Side panel hardware kit (SPHKDS); allows custom side panels to be mounted on right and left-hand sides of unit
• Warranty Highlights
• Two-year full covers complete unit
• Six-year full - sealed refrigeration system
• Twelve-year limited - sealed refrigeration system (includes compressor, condenser, dryer/strainer, evaporator, and connecting tubing)
• Ninety-day limited - cosmetic parts such as glass, painted items, and decorative items

Specifications
Electrical Requirements	115 Volt, 60 Hz, 15 Amp Dedicated Circuit; 3-Wire Cord With Grounded 3-Prong Plug Attached to Product
Maximum Amp Usage	2.0 Amps
Approximate Shipping Weight	535 Lbs. (240.1 kg)
Total Capacity	150 Bottles
Total Shelves	15
Temperature Zones	3
Overall Dimensions
Width	30" (76.2 cm)
Min. Height from Bottom	82 3/4" (210.2 cm)
Max. Height from Bottom	84 1/16" (213.5 cm)
Depth from Rear to Edge of Side Trim	23 13/16" (60.5 cm)
Depth from Rear to Edge of Cabinet Side Trim	24" (61.0 cm)
Depth from Rear to Edge of Door Trim	26" (66.0 cm)
Cutout Dimensions
Width	30" (76.2 cm)
Min. Height	82 7/8" (210.5 cm)
Max. Height	84 1/16" (213.5 cm)
Depth	24" (61.0 cm) Min.
