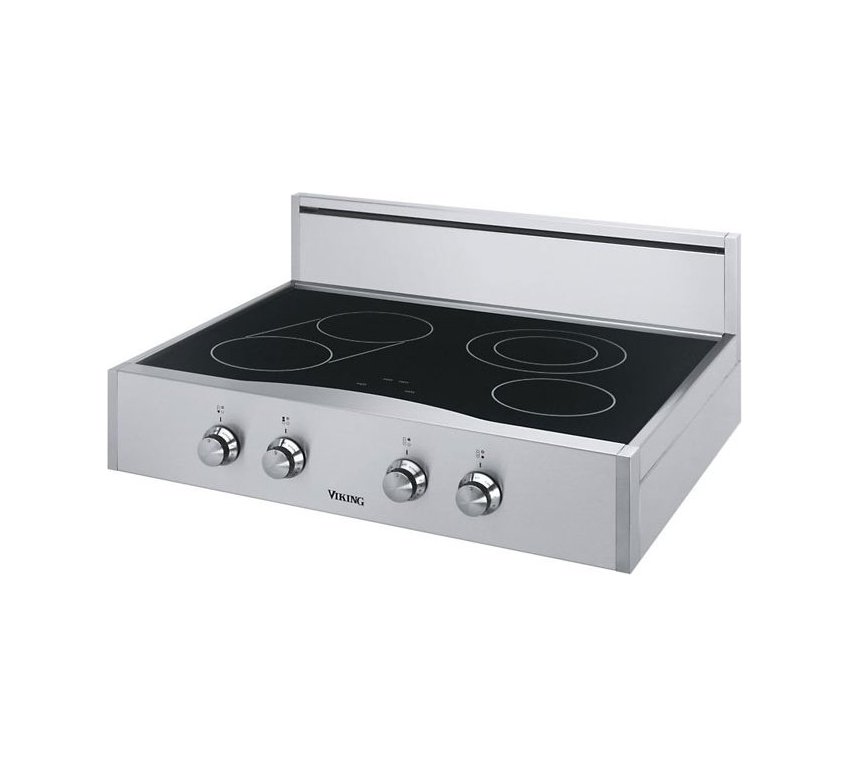

Viking DERT3014BSB 30" Designer Series Electric Rangetop


Part Number: DERT3014BSB

30" Pro-Style Electric Rangetop with 4 QuickCook Surface Elements, Bridge Element and Push-to-Turn Safety Feature: Black Glass and Knob Grip

Viking DERT3014BSB


Part Number: DERT3014BSB

Our Viking sales territory includes NY, NJ, PA, DE, and WV. For more details call us at 877-679-2686.

Why shop evVive.com?
  • Authorized Dealer
  • Experienced Sales Team
  • Factory Trained Installers
  • Competitive Package Deals

Today's Price$1849.00
Still Need Help? Call 877-679-2686

  • Commercial-Type Cooking Power
  • QuickCook surface elements utilize ribbon technology - elements reach full power in about three seconds
  • Bridge element between left front and rear elements, creates a continuous heated surface
  • Wide range of surface element sizes and wattages
  • High infrared transmission for fast cooking, regardless of the type of cookware used
  • Easy Operation and Cleanup
  • Durable control knobs made of solid stainless steel with childproof, push-to-turn safety feature
  • Soft-touch, slip-proof rubber grips for easy handling
  • Customer-removable knobs
  • Strong, wear-resistant glass ceramic surface with stainless steel frame
  • Smooth glass offers excellent cleanability
  • Exclusive Finishes
  • Stainless Steel/Black (SB) featuring black glass and knob grips
  • Stainless Steel/White (SW) featuring white glass and gray knob grips
  • May be ordered with Brass Trim Option (BR) for knobs
  • Installation Accessories Available
  • 6" High backguard - (D30BG6)
  • High shelf - (D30HS24)
  • Island trim - (D30TII)
  • Countertop side trim - (TE24CST)
  • Optional Accessory
  • Portable griddle - (DEC-PGD)
  • Warranty Highlights
  • One-year full covers complete unit
  • Five-year limited - electric elements
  • Ninety-day limited - cosmetic parts such as painted items and decorative items
  • Additional Cooking Accessories Available Under "Accessories"
Our Viking sales territory includes NY, NJ, PA, DE, and WV. For more details call us at 877-679-2686.
Burner Ratings
Left Front Surface Element240V - 1800 Watts, 208V - 1350 Watts
Left Bridge240V - 800 Watts, 208V - 600 Watts
Left Rear Surface Element240V - 1800 Watts, 208V - 1350 Watts
Center Surface ElementN/A
Right Front Surface Element240V - 1500 Watts, 208V - 1125 Watts
Right BridgeN/A
Right Rear Surface Element240V - 2500 Watts, 208V - 1875 Watts
Others
Electrical Requirements3-Wire, 240/208 VAC, 60 Hz, 40 Amp Electrical Connection. (Unit is equipped with No. 10 ground wire in conduit. Should be fused separately.)
Maximum Amp Usage240V - 35.0 Amps, 208V - 30.3 Amps
Approximate Shipping Weight52 Lbs. (23.4 kg)
Overall Dimensions
Overall Width29 7/8" (75.9 cm)
Overall Height to Cooking Surface6 1/8" (15.6 cm)
Overall Depth To End of Side Panel24 7/16" (62.1 cm)
Overall Depth To End of Control Panel26 1/8" (66.35 cm)
Overall Depth To End of Knobs27 5/8" (70.2 cm)
Cutout Dimensions
Cutout Width30" (76.2 cm)
Cutout Height5 3/4" (14.6 cm)
Cutout Depth24 7/16" (62.1 cm)
