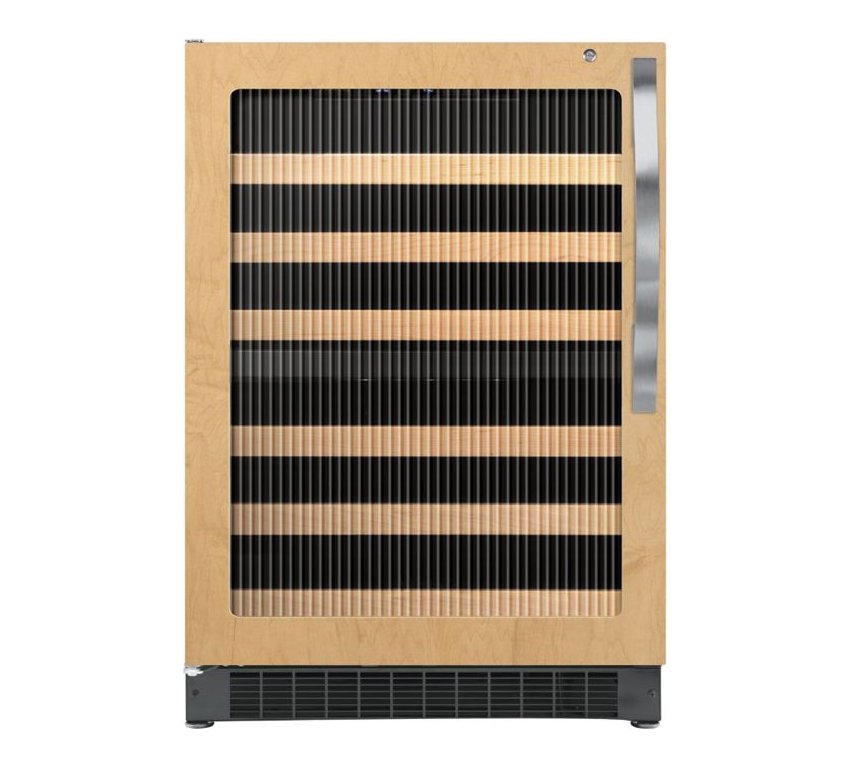

Viking DFUW244FL 24" Custom Series Custom Front Dual Zone Wine Cellar

Mouse Over Main Image to Zoom In

• Professional Features
• Hidden touchpad electronic controls with LED digital temperature readout.
• Six wire shelves store up to 44 wine bottles horizontally, keeping corks moist.
• Roller shelves extend for easy loading and unloading.
• Maple wood facings provide additional ultraviolet protection.
• Low-intensity interior lighting.
• Keyed door lock provides protection for stored wines (glass door models).
• Professional-Style Construction
• Undercounter or freestanding installation.
• Custom Front blends seamlessly into cabinetry with locally supplied front panels.
• Must be ordered either right- or left-hinge (specify R or L after model number).
• Can be installed as a single unit, double stacked, or side-by-side in standard-depth residential cabinets.
• Adjustable leveling legs.
• Optional Custom Front Accessories
• Professional handle kit (PHK30).
• Designer handle kit (DHK18).
• Exterior Options
• Clear glass door.
• Accepts 3/4" wide custom wood door frame.
• Warranty Highlights
• Two year full warranty - complete unit.
• Six-year full warranty - sealed system.
• Lifetime limited - stainless steel exterior.
• Twelve-year limited - sealed system.
• Ninety-day limited - cosmetic parts such as glass, painted items, and decorative items.
• Warranty valid on Viking products shipped within the United States and Canada.

Specifications
Electrical Requirements	115 Volt, 60 Hz, 15 Amps
Maximum Amp Usage	3.3 Amps
Approximate Shipping Weight	180 Lbs. (81.0 kg)
Total Capacity	44 Bottles
Total Shelves	6
Glide-Out Shelves	Yes
Temperature Zones	2
Controls	Hidden Touchpad
LED Digital Display	Yes
Door Lock	Yes
Overall Dimensions
Width	23 7/8" (60.6 cm)
Depth to Front of Handle	Varies
Depth with Door Open	46 1/2" (118.1 cm)
Min. Height from Bottom	34" (86.4 cm)
Max. Height from Bottom	34 3/4" (88.3 cm)
Undercounter Cutout Dimensions
Width	24" (61.0 cm) for cabinet only. If door is recessed between cabinets, cabinet cutout must be 24 1/4" (61.6 cm).
Depth	24" (61.0 cm)
Min. Height	34 1/2" (87.6 cm)
Max. Height	35 1/8" (89.2 cm)
Custom Panel Dimensions and Weight
Width	23 7/16" (59.5 cm)
Min. Depth	5/8" (1.7 cm)
Max. Depth	3/4" (1.9 cm)
Height	30 5/16" (77.0 cm)
Max. Panel Weight	20 Lbs. (9.1 kg)
