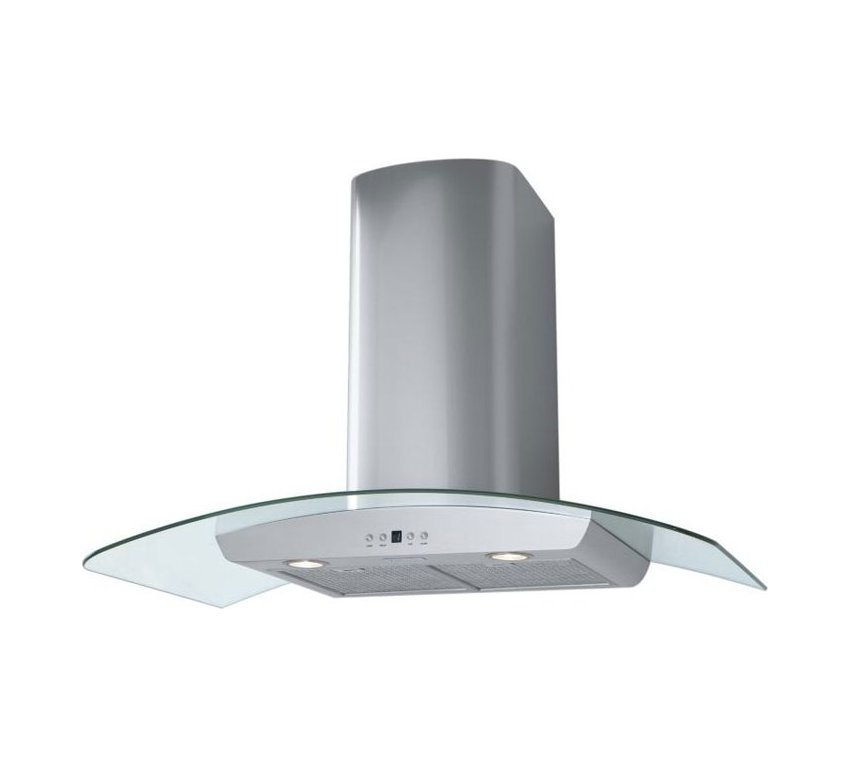

Viking DGWH3646SS 36" Designer Series Classic Chimney Glass Wall Hood

Mouse Over Main Image to Zoom In

• Appearance and Design
• Elegant design and styling.
• Seamless design with no visible screws.
• LED display.
• Halogen lighting for better visibility and efficiency.
• Heat sensor turns ventilator on full power when cooking temperatures reach uncomfortable levels.
• Adjustable duct cover comes standard (for 8' to 9' ceilings).
• Performance and Power
• Recommended for use with 30" and 36" Width non-griddle/grill ranges, 30" and 36" Width non-griddle/grill rangetops, and 30" and 36" Width cooktops.
• Advanced, electronic push-button controls feature delay shutoff.
• Quiet, variable speed blower produces 450 CFM of exhaust and ships standard with product.
• Controls include an optimum blower memory setting for everyday use.
• Delay timer control automatically shuts off range hood after five minutes.
• Special control notification indicates when it's time to clean the filter.
• Can be ducted to the outside or non-ducted for indoor recirculation.
• Easy Cleanup
• Filter system efficiently removes grease and heated vapors from the air.
• Especially designed for use with commercial-type residential products.
• Dishwasher-safe filters are easily removed for quick cleaning.
• Design of low profile filter system means less interior hood space to be cleaned.
• Optional Accessories
• Optional duct cover extension available for 10' ceilings - DGCE1210SS.
• Optional recirculating kit - DGRK.
• Exclusive Finishes
• Available in Stainless Steel (SS).
• Warranty Highlights
• One-year full - covers complete unit.
• Ninety-day limited - cosmetic parts such as glass, painted items, and decorative items.
• Five-year limited - ventilator motor.

Specifications
	Air Circulation	450 CFM Interior
	Speeds	4
	Controls	Electronic Push-Button
	Delay Shut-Off	Yes
	Delay Timer	Automatic
	LED Display	Yes
	Heat Sensor	Yes
	Lights	2 Halogens
	Filters	2
	Heat Lamps	N/A
	Interior Duct Size	6" Round
	Max. Duct Run Length	50 Ft.
	Electrical Requirements	120 VAC / 60 Hz; Hardwire Direct with Two-Wire with Ground
	Max. Amp Usage	3.13 Amps
	NOTE	For best performance and safe, efficient operation, it is recommended that the bottom of the hood be 24" to 30" above the countertop.
Dimensions and Weights
	Hood Width	35 7/16"
	Hood Depth	20"
	Hood Height	3 5/16"
	Duct Cover Width	11 1/2"
	Duct Cover Depth	12"
	Duct Cover Height	27 1/2" to 48"
	Approx. Shipping Weight	67 Lbs.
