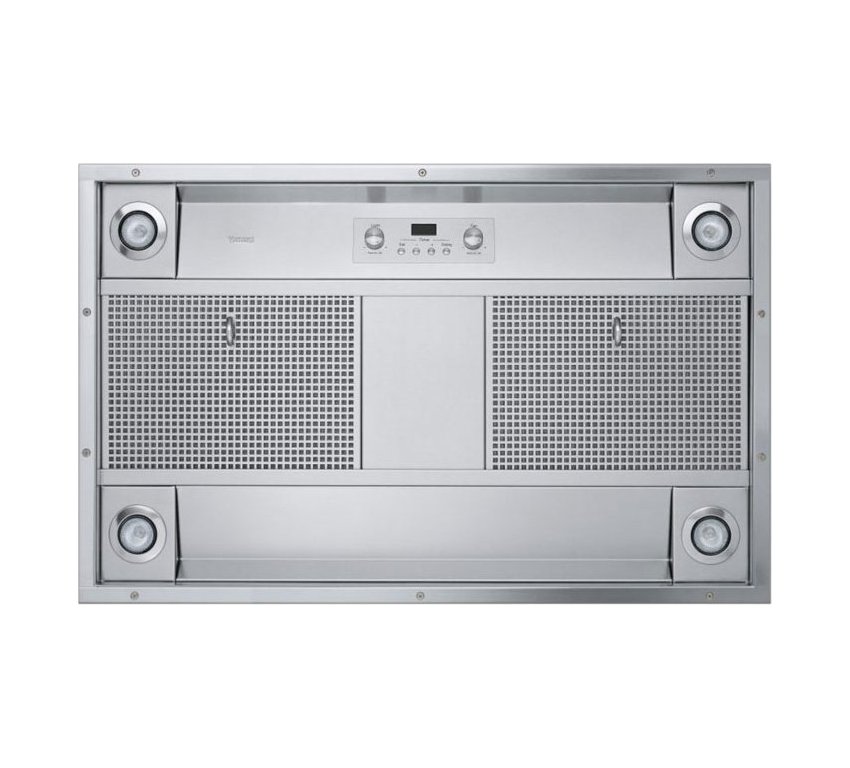

Viking DICV3632 36" Designer Series 23" Deep Custom Ventilator Systems for Professional Wall Hood

Mouse Over Main Image to Zoom In

• Appearance and Design
• Heavy-duty construction; elegant design and styling
• Easily installs into almost any custom wall island application
• Infinite settings allow precise speed control for custom ventilation
• Halogen lights provide better visibility and efficiency
• Heat sensor turns the ventilator on full power when cooking temperatures reach uncomfortable levels
• Delay feature allows user to set the ventilator to shut off on its own from 10 to 30 minutes later
• 12-hour timer built into controls; excellent for use with Designer cooking products
• Easy Cleanup
• Mesh filters made entirely of stainless steel for durability and long life; efficiently remove grease and heated vapors from air
• Dishwasher-safe filters are easily removed for quick cleaning
• Stainless steel liner provides increased rigidity and easy cleaning
• Design of low profile filter system means less interior hood space to be cleaned
• Ventilators
• Ventilator kits sold separately
• Warranty Highlights
• One-year full covers complete product
• Five-year limited - all ventilator motors
• Ninety-day limited - cosmetic parts such as glass, painted items, and decorative items
• Interior/Exterior Blowers Available Under "Accessories" Tab

Specifications
	Exhaust Capacity	440 int./900 ext./1200 ext. CFM
	Electrical Requirements	120VAC/60Hz, 4.0/7.5/5.2 Amps
	Spacers	1
	Mesh Filters	2
	Halogen Lights	4
	Heat Lamp (250W)	N/A
Recommended Duct Sizes
	DIV440 (440 CFM Interior)	7" Round
	DEV900 (900 CFM Exterior)	10" Round Must use 8" duct from canopy to ceiling - transition to 10" duct past duct cover.)
	DEV1200 (1200 CFM Exterior)	10" Round
Overall Dimensions
	Overall Width	35 5/8" (90.5 cm)
	Overall Height	11 3/4" (29.8 cm)
	Overall Depth	22 1/4" (56.5 cm)
