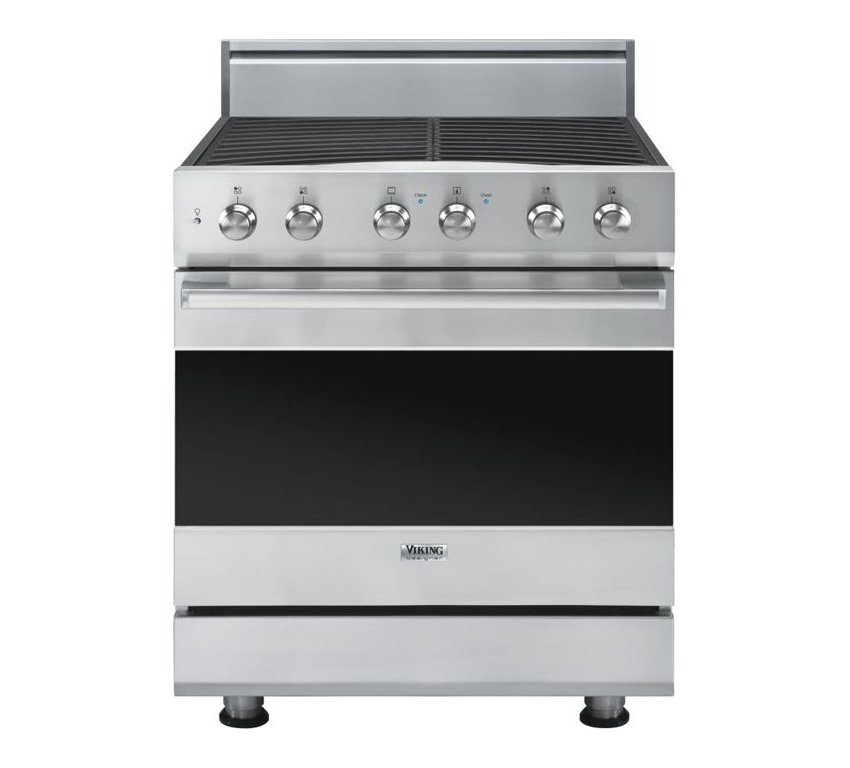

Viking Designer Series DSCD1304BSS

Mouse Over Main Image to Zoom In

• *** Power Cord Not Included ***
• Commercial-Type Cooking Power
• Four sealed burners with brass flame ports and porcelain/cast iron caps.
• Exclusive all burners equipped with SureSpark Ignition System for consistent and reliable ignition every time.
• Exclusive - largest oven cavity in the industry.
• Exclusive patented Vari-Speed Dual Flow convection system.
• Heavy duty metal knobs with stainless steel finish shipped standard.
• Concealed 10-pass dual bake element provides precise temperature control.
• Rapid Ready Preheat provides one of the fastest preheat times - so your oven is ready to begin cooking when you are.
• Oven has six porcelain coated rack supports and comes standard with three standard oven racks.
• Strategically located oven light provides maximum visibility.
• Heavy-duty broiler pan and tray provide more roasting and broiling options.
• High performance cooking modes include:
• Easy Operation and Cleanup
• Exclusive one piece tooled cooking surface for easy clean up.
• Concealed 10-pass dual bake element makes for easy clean up of the oven cavity.
• Exclusive Finishes
• Available in Stainless Steel (SS), Black (BK), White (WH), Metallic Silver (MS), Graphite Gray (GG), Stone Gray (SG), Taupe (TP), Biscuit (BT), Cotton White (CW), Oyster Gray (OG), Golden Mist (GM), Lemonade (LE),
• Sage (SA), Mint Julep (MJ), Sea Glass (SE), Iridescent Blue (IB), Viking Blue (VB), Pumpkin (PM), Racing Red (RR), Apple Red (AR), Burgundy (BU), Plum (PL), Chocolate (CH), Cobalt Blue (CB)
• Included Accessories
• Island Trim (shipped standard with 30" range) - DS30TII.
• Optional Accessories
• 6" Height Backguard - DS30BG6
• High Shelf - DS30HS24
• Countertop Side Trim - P24CST
• Countertop Rear Trim - P30CRT
• Curb Base and Custom Curb Base Front -P30CBF4
• Warranty Highlights
• One-year full covers complete unit.
• Five-year limited - surface/tube burners.
• Ten-year limited - porcelain oven.
• Ninety-day limited - cosmetic parts such as glass, painted items and decorative items.
• Available at evVive.
• www.evVive.com
• MFG SKU DSCD130-4BSS

Burner Ratings
	Left Front	16,000 BTU Nat./12,500 BTU LP/Propane (4.7 kW Nat/3.7 kW LP/Propane)
	Left Rear	12,000 BTU Nat./11,500 BTU LP/Propane (3.5 kW Nat/3.4 kW LP/Propane)
	Right Rear	8,000 BTU Nat./7,500 BTU LP/Propane (2.3 kW Nat/2.2 kW LP/Propane)
	Right Front	6,000 BTU Nat./5,500 BTU LP/Propane (1.8 kW Nat/1.6 kW LP/Propane)
Others
	Gas Requirements	Shipped Natural or LP/Propane; Accepts Standard Residential 1/2" (1.3 cm) ID Gas Service Line
	Gas Manifold Pressure	Natural 5.0" W.C.P./Liquid Propane L/P 10.0" W.C.P.
	Electrical Requirements	240-208 VAC 60 Hz electrical connection box on product, connect with locally supplied 3- wire, flexible cord or "pigtail" rated 40 amp. 125-250 VAC minimum. Cord must be agency approved for use with household electric ranges.
	Max Amp Usage	240V - 25.4 Amps; 208V - 22.9 Amps
	Approx. Shipping Weight	405 Lbs. (182.3 kg)
Overall Dimensions
	Overall Width	29 7/8" (75.9 cm)
	Overall Depth To Front of Side Panel	25" (63.5 cm)
	Overall Depth To Front of Door	25 3/4" (65.4 cm)
	Overall Depth To Front of Landing Edge	26 1/2" (67.3 cm)
	Overall Depth To Front of Door Handle	28 1/4" (71.8 cm)
	Overall Height to Top of Side Trim	35 7/8" (91.1 cm) to 37" (94.0 cm)
	Legs Adjust	1 1/8" (2.9 cm)
	Additions To Overall Height To Top of Island Trim	Add 0" (0.0 cm)
	Additions To Overall Height To Top of Backguard	Add 6" (15.2 cm)
	Additions To Overall Height To Top of High Shelf	Add 18 3/16" (46.2 cm)
Oven Interior Dimensions
	Oven Interior Width	25 5/16" (64.6 cm)
	Oven Interior Depth (Overall)	19 1/2" (49.5 cm)
	Oven Interior Depth (AHAM)	16 13/16" (42.7 cm)
	Oven Interior Height	16 1/2" (41.9 cm)
	Oven Volume (Overall)	4.7 Cu. Ft.
	Oven Volume (AHAM)	4.1 Cu. Ft.
