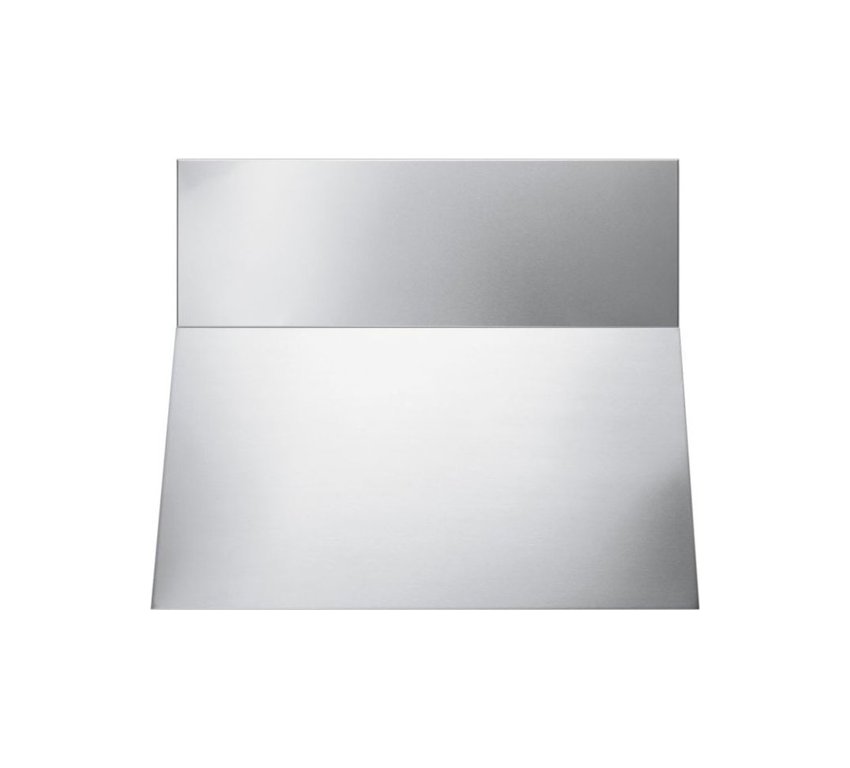

Viking DTWN3048SS 30" Designer Series Tall Traditional Wall Hood without Ledge

Mouse Over Main Image to Zoom In

• Appearance and Design
• Heavy-duty construction; elegant design and styling
• Virtually seamless design with no visible screws
• Halogen lights for better visibility and efficiency
• Heat sensor that turns the ventilator on full power when cooking temperatures reach uncomfortable levels
• Delay feature allows consumer to set the ventilator to shut off on its own from 10 to 30 minutes later
• 12-hour timer built into ventilator controls; excellent for use with Designer Series cooking products
• Interior- or Exterior-Power Ventilators
• Choose from interior- or exterior-power ventilators
• One ventilator, one duct run for any size hood/ventilator
• Must use Viking ventilator kits with Viking hoods; use of non-Viking kits voids the product warranty
• Easy Cleanup
• Mesh filters made entirely of stainless steel for durability and long life; efficiently remove grease and heated vapors from the air
• Dishwasher-safe filters are easily removed for quick cleaning
• Design of low profile filter system means less interior hood space to be cleaned
• Interior of rangehood canopy has stainless steel liner for increased rigidity, seamless appearance, and easy cleaning
• Optional Accessories Available
• Wall Hood Duct Covers
• Wall Hood Backsplashes
• Exclusive Finishes
• Available in Stainless Steel (SS), Black (BK), White (WH), Biscuit (BT), Stone Gray (SG), and Graphite Gray (GG)
• Warranty Highlights
• One-year full covers complete product
• Five-year limited - all ventilator motors
• Ninety-day limited - cosmetic parts such as glass, painted items, and decorative items
• Interior/Exterior Blowers Available Under "Accessories" Tab

Specifications
	Exhaust Capacity	300 int./600 int./1200 int./900 ext./1200 ext. CFM
	Electrical Requirements	120VAC/60Hz, 2.4/4.6/6.6/6.6/3.9 Amps
	Spacers	N/A
	Mesh Filters	2
	Halogen Lights	2
	Heat Lamp (250W)	N/A
Recommended Duct Sizes
	VIV300 (300 CFM Interior)	7" Round
	VIV600 (600 CFM Interior)	7" Round
	VIV1200 (1200 CFM Interior)	10" Round
	VEV900 (900 CFM Exterior)	10" Round
	VEV1200 (1200 CFM Exterior)	10" Round
Overall Dimensions
	Overall Width	29 7/8" (75.9 cm)
	Overall Height	18" (45.7 cm)
	Overall Depth	24" (61.0 cm)
