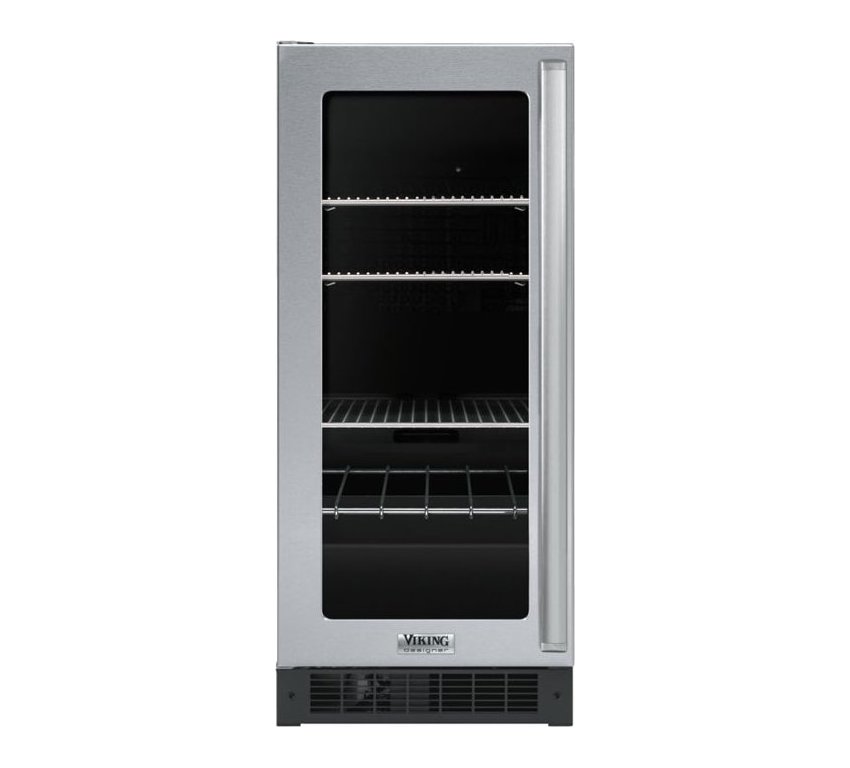

Viking Designer Series DUAR1541CLSS

Mouse Over Main Image to Zoom In

• Professional Features
• Hidden touchpad electronic controls with LED digital temperature readout.
• 3.0 cubic feet of storage.
• Two full-depth adjustable wire shelves pull out for easy access.
• One full-depth, tempered-glass shelf creates a distinct temperature zone for wine storage.
• Wine shelf in bottom cradles four bottles horizontally.
• Low-E argon-filled glass doors.
• Interior light turns on when door is opened or by switch to illuminate contents.
• Automatic cycle defrost.
• Professional-Style Construction
• Undercounter or freestanding installation.
• Distinctive, ergonomically designed handle.
• Can be installed as a single unit, double stacked, or side-by-side in standard-depth residential cabinets.
• Adjustable leveling legs.
• Must be ordered either right or left-hinge.
• Exclusive Finishes
• Available in clear glass door or fluted glass door.
• Available in Stainless Steel (SS) with black interior.
• Warranty Highlights
• Two year full warranty - complete unit.
• Six-year full warranty - sealed system and ice maker.
• Lifetime limited - stainless steel exterior.
• Twelve-year limited - sealed system.
• Ninety-day limited - cosmetic parts such as glass, painted items, and decorative items.
• Warranty valid on Viking products shipped within the United States and Canada.
• Available at evVive.
• www.evVive.com

Features
	Capacity	3.0 Cu. Ft.
	Bottle Capacity	4 Bottles
	Removable Wire Shelves	2 Full-Depth
	Tempered Glass Shelf	1 Full-Depth
	Wine Shelf	1
	Electronic Controls	Hidden Touchpad
	LED Digital Temperature Readout	Yes
	Temperature Range	Adjusts From 40°F - 65°F
	Defrost	Automatic Cycle
	Interior Light	Yes
	Black Exterior Cabinet	Yes
	Black Interior	Yes
Others
	Electrical Requirements	115 VAC/60 Hz
	Maximum Amps	3.0 Amps
	Approx. Shipping Weight	110 Lbs. (49.5 kg)
Dimensions
	Overall Width	14 3/4" (37.5 cm)
	Overall Depth	26 1/8" (66.4 cm)
	Overall Depth without Handle	23 5/8" (60.0 cm)
	Overall Depth without Door	21 3/16" (53.8 cm)
	Overall Height	Min. 34 1/4" (87.0 cm) to Max. 35" (88.9 cm)
	Cutout Width	15" (38.1 cm)
	Cutout Depth	24" (61.0 cm)
	Cutout Height	Min. 34 1/2" (87.6 cm) to Max. 35 1/8" (89.2 cm)
