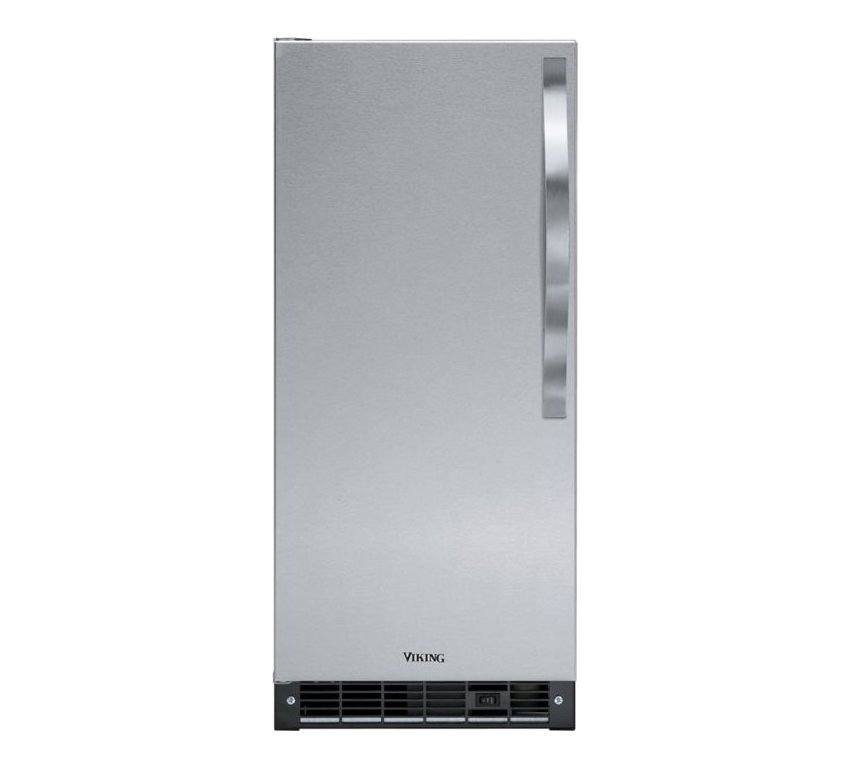

Viking DUIM153DLSS 15" Designer Series Undercounter/Freestanding Tall Door Ice Machine

Mouse Over Main Image to Zoom In

• Professional Features
• Available at evVive.
• www.evVive.com
• Produces up to 35 lb. of clear ice in 24 hours.
• 35 lb. capacity ice bin.
• Draining process automatically removes old ice.
• 3/4" cube thickness.
• Heavy-duty ice scoop.
• Equipped with cleaning mode.
• Stainless steel ice cutter.
• Professional-Style Construction
• Undercounter or freestanding installation.
• Permanently lubricated sealed compressor and pump ensure long life and professional performance.
• Stainless steel ice cutter.
• Distinctive, ergonomically designed handle.
• Adjustable leveling legs.
• Must be ordered either right or left-hinge (specify R or L after model numbers).
• Optional Accessories
• Sealed reservoir drain pump (DP-VUIM).
• Exclusive Finishes
• Available in Stainless Steel (SS).
• Warranty Highlights
• Two year full warranty - complete unit.
• Six-year full warranty - sealed system and ice maker.
• Lifetime limited - stainless steel exterior.
• Twelve-year limited - sealed system.
• Ninety-day limited - cosmetic parts such as glass, painted items, and decorative items.
• Warranty valid on Viking products shipped within the United States and Canada.

Specifications
	Electrical Requirements	115 Volt, 60 Hz
	Maximum Amp Usage	3.0 Amps
	Approximate Shipping Weight	110 Lbs. (49.5 kg)
	Storage Capacity	35 Lbs.
	Ice Production	35 Lbs. / Day
	Ice Type	3/4" Clear Ice
	Cleaning Mode	Yes
Overall Dimensions
	Width	14 3/4" (37.5 cm)
	Depth without Door and Handle	22" (55.9 cm)
	Depth without Handle	24 5/8" (62.6 cm)
	Depth with Handle	26 5/8" (67.6 cm)
	Min. Height from Bottom	34 1/4" (87.0 cm)
	Max. Height from Bottom	35" (88.9 cm)
Undercounter Cutout Dimensions
	Width	15" (38.1 cm) for cabinet only. If door is recessed between cabinets, cabinet cutout must be 15 1/4" (38.7 cm).
	Depth	24" (61.0 cm)
	Min. Height	34 1/2" (87.6 cm)
	Max. Height	35 1/8" (89.2 cm)
