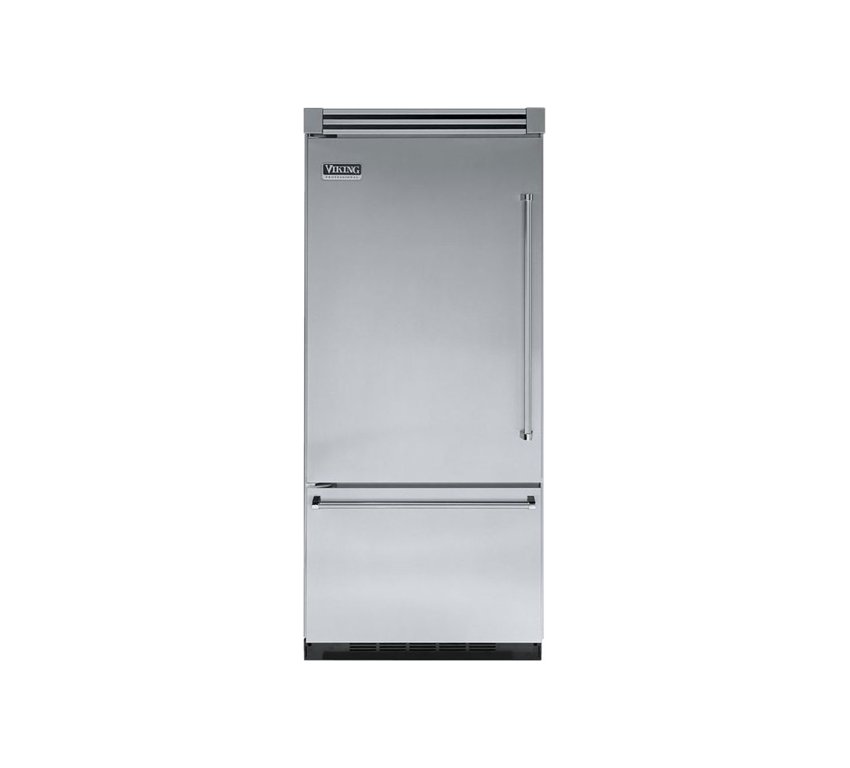

Viking Professional Series VCBB536LSS

• Storage Capacity
• 20.3 Cu. Ft. Total
• 15.2 Cu. Ft. Refrigerator
• 5.1 Cu. Ft. Freezer
• Available at evVive
• www.evVive.com
• ProChill Temperature Management System
• Variable speed DC Overdrive compressor is one of the quietest, most technologically advanced compressors available.
• Electronic controls maintain temperature within 1°F (.83°C).
• Multi-channel airflow system and Odor Eliminator Evaporator remove odors and excess humidity.
• Plasmacluster Ion Air Purifier
• Eliminates airborne bacteria and mold spores.
• Removes odors.
• Enhances food preservation.
• Never needs replacing / no filter required.
• Plasmacluster is a trademark of Sharp Corporation.
• Frost-Free Refrigerator Professional Features
• Fresh food items are at or above waist level, allowing less bending and stooping to retrieve food.
• Adjustable Cold Zone Drawer with precision ball-bearing glides can be set for either produce or long-term fresh meat storage with its separate temperature control.
• Two Adjustable Humidity Zone drawers with precision ball-bearing glides for large-item storage.
• One full-width and four half-width adjustable tempered-glass shelves allow customized shelf placement.
• Two in-the-door magnetically sealed dairy compartments with see-through, lift-up covers.
• Additional storage in four large, aluminum door bins with tempered glass fronts - three are adjustable.
• Full lighting illuminates interior when door opens.
• Frost-Free Freezer Professional Features
• Adaptive defrost controls the timing of the defrost periods instead of an electromechanical defrost timer.
• Full-extension main freezer compartment pulls out like a drawer for easy access to bulky frozen foods.
• Factory-installed automatic ice maker features large capacity ice bucket.
• Ice maker is deactivated when the freezer is open, ensuring ice won't dispense when the drawer is open.
• Door alarm sounds and glows to warn that the fresh food door and/or freezer drawer have been ajar for three minutes.
• Easy Maintenance and Cleanup
• Super Clog-Resistant Condenser is maintenance free under normal use.
• Top-mounted and front venting sealed refrigeration system works silently and efficiently.
• 24" depth keeps items in back within comfortable reach.
• Spillproof tempered-glass shelves contain spills and leaks, preventing leakage to lower shelves and drawers.
• Power interruption switch behind consumer-removable top grille completely turns off power to unit for safe cleaning, light bulb replacement, or servicing.
• Adjustable-height lower kickplate removes to provide easy access to evaporator pan.
• Professional-Style Construction
• Design and basic dimensions provide built-in appearance with standard cabinetry.
• Exterior moisture control system prevents condensation.
• Heavy-duty commercial-style door handles.
• Dual-magnet door seal system automatically closes door within 30 degrees of the refrigerator or freezer compartment.
• Door stops are factory set at 110 degree swing; easily adjust to 90 or 120 degree swing.
• Black lower kickplate.
• Removable, stainless steel upper grille.
• Thin wall and door construction, coupled with high-density insulation, provides maximum interior space.
• Four independent, front adjustable levelers make installation quick and easy.
• Standard Accessories
• See-through egg container with carrier holds up to 24 eggs.
• Glass butter tray and cover.
• Optional Accessories
• Stainless steel side panels (PSSPL3, PSSPR3).
• Stainless steel top kit (TOP-36).
• Installation Accessory
• 72" wide stainless steel upper grille kit (PBRTGK-SS).
• Exclusive Finishes
• Available in Stainless Steel (SS), Black (BK), White (WH), Metallic Silver (MS), Graphite Gray (GG), Stone Gray (SG), Taupe (TP), Biscuit (BT), Cotton White (CW), Oyster Gray (OG), Golden Mist (GM),
• Lemonade (LE), Sage (SA), Mint Julep (MJ), Sea Glass (SE), Iridescent Blue (IB), Viking Blue (VB), Pumpkin (PM), Racing Red (RR), Apple Red (AR), Burgundy (BU), Plum (PL), Chocolate (CH), Cobalt Blue (CB).
• May be ordered with Brass Accent Option (BR) for nameplate and door handle brackets.
• Warranty Highlights
• Two-year full warranty - complete unit.
• Six-year full warranty - sealed system and ice maker.
• Lifetime limited - stainless steel exterior.
• Twelve-year limited - sealed system.
• Ninety-day limited - cosmetic parts such as glass, painted items, and decorative items.
• Warranty valid on Viking products shipped within the United States and Canada.
