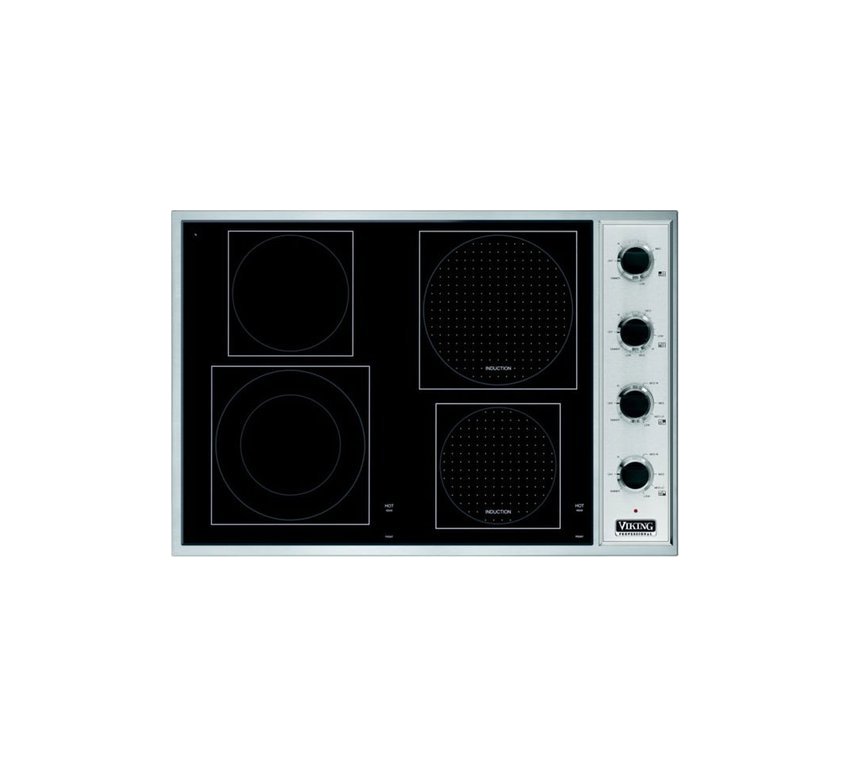

Viking VCCU1064BSB 30" Professional Series Induction/Radiant Cooktop

Mouse Over Main Image to Zoom In

• Commercial-Type Cooking Power
• MagneQuick induction elements utilize magnetic energy for superior power, responsiveness and efficiency.
• QuickCook surface elements utilize ribbon element technology to reach full power in about 3 seconds.
• 30" Induction/Radiant Models.
• Easy Operation and Cleanup
• Glass ceramic top with stainless steel frame/control panel.
• Metal knobs with childproof, push-to-turn safety feature.
• Exclusive Finishes
• Stainless Steel/Black (SB) featuring black glass and knobs.
• Stainless Steel/White (SW) featuring white glass and knobs.
• May be ordered with Brass Trim Option (BR) for knob bezels, control panel frame and nameplate.
• Warranty Highlights
• One-year full - complete unit.
• Lifetime limited - stainless steel exterior.
• Five-year limited - surface elements.
• Ninety-day limited - cosmetic parts such as painted items and decorative items.

Burner Ratings
	Right Front Induction Element Rating	240V - 1800 Watts, 208V - 1560 Watts
	Right Rear Induction Element Rating	240V - 3300 Watts, 208V - 2800 Watts
	Center Front Surface Element Rating	N/A
	Bridge Surface Element Rating	N/A
	Center Rear Surface Element Rating	N/A
	Left Front Radiant Element Rating (Dual Element)	240V - 2500/1000 Watts, 208V - 1875/750 Watts
	Left Rear Radiant Element Rating	240V - 1500 Watts, 208V - 1125 Watts
Others
	4-Foot Flexible Conduit	Included
	Electrical Requirements	240 - 208/120 VAC/60 Hz - 3-Wire Conduit with a No. 10 Ground Wire.
	Maximum Amp Usage	240V 37.9 Amps, 208V 35.4 Amps
	Approximate Shipping Weight	52 Lbs. (23.4 kg)
Dimensions
	Overall Width	30 3/4" (78.1 cm)
	Overall Depth from Rear	21" (53.3 cm)
	Overall Height from Bottom	6 3/4" (17.2 cm)
	Cutout Width	28 9/16" (72.6 cm) Min. to 29 5/8" (75.2 cm) Max.
	Cutout Depth	19 1/8" (48.6 cm) Min. to 19 7/8" (50.5 cm) Max.
