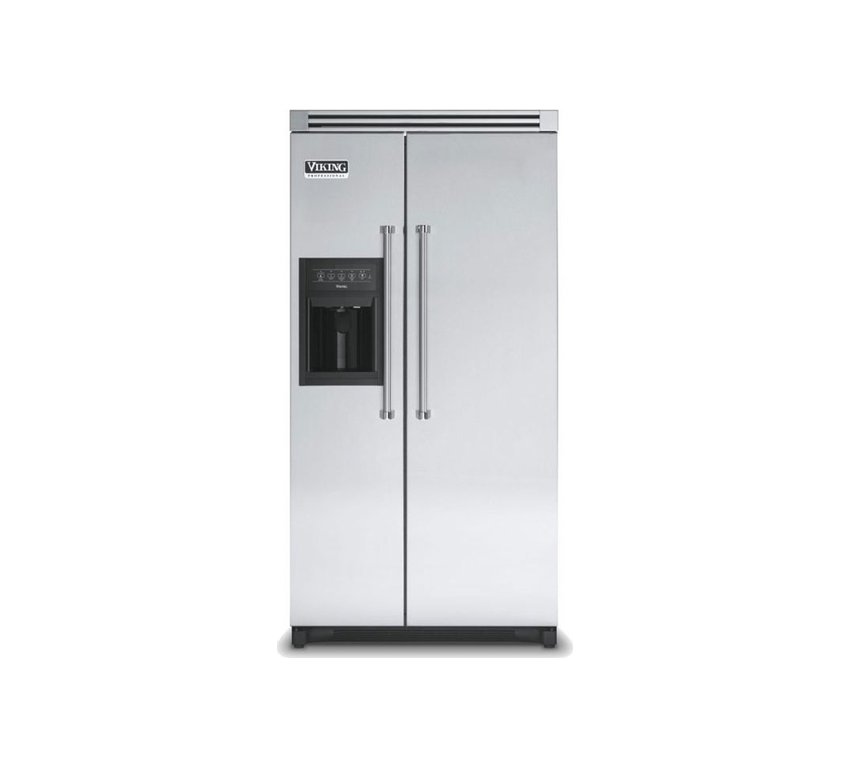

Viking VCSF036DSS 36" Professional Series Side-by-Side w/Ice and Water Dispenser - Stainless Steel

Mouse Over Main Image to Zoom In

• "Cabinet Depth" Design
• "Cabinet Depth" design (24" deep side panels) integrates with surrounding cabinetry
• Frost-Free Refrigerator Professional Features
• Temperature adjustable Meat Savor/Produce Drawer can be set for either produce, or long-term fresh meat storage with its separate temperature control
• Two moisture-adjustable, see-through produce drawers
• Four tempered glass spill-proof shelves
• In-the-door dairy compartment with cover
• Additional storage in five door bins; three bins store gallon containers
• Ice and Water Dispenser Features
• Through-the-door dispenser provides cubed ice, crushed ice and chilled water in easy one-hand operation
• Premium water filter provides cleaner water and ice supply by filtering bad tastes, odors, sediment and harmful contaminants
• Lock prevents unwanted dispensing and allows for easy cleaning
• Auto nightlight illuminates dispenser area when room is dark
• Frost-Free Freezer Professional Features
• Two adjustable wire shelves
• Two slide-out baskets
• Factory installed automatic icemaker
• Additional storage in four large door bins; three tilt outward for easy access
• Adaptive defrost
• Electronic Control Features
• Electronic controls with digital temperature readouts maintain the selected temperatures in both refrigerator and freezer compartments
• Water filter indicator light illuminates when water filter needs replacing
• Max ice feature sets freezer temperature to optimum setting for maximum ice production
• Door open alarm warns when door has been ajar for five minutes
• High temperature alarm warns if freezer or refrigerator temperatures exceed normal operating temperatures
• Vacation mode allows the freezer to defrost less frequently, conserving energy
• Energy Star
• Energy Star qualified
• Standard Accessories
• See-through egg container with carrier holds up to 24 eggs
• Glass butter tray with cover
• Installation Accessories Available
• Side trim
• Professional top grilles
• Side panels
• Tops
• Brass handle kits
• Finish and Design Options
• Stainless steel doors with black cabinet sides and top
• Optional side trim and grille kits for finished "built-in" look
• Optional side panels, grille kits and top for finished "wrapped" look
• Warranty Highlights
• Two-year full - covers complete unit
• Six-year full - sealed refrigeration system and automatic icemaker
• Twelve-year limited - sealed refrigeration system (includes compressor, condenser, dryer/strainer, evaporator, and connecting tubing)
• Ninety-day limited - cosmetic parts such as glass, painted items and decorative items

Specifications
	Electrical Requirements	115 Volt, 60 Hz, 15 Amp Dedicated Circuit; 3-Wire Cord With Grounded 3-Prong Plug Attached to Product
	Maximum Amp Usage	9.4 Amps
	Inlet Water Requirements	1/4" Copper Tubing Inlet Waterline; Minimum 35 psi; Maximum 100 psi
	Approximate Shipping Weight	314 Lbs. (141.3 kg)
Overall Interior Dimensions
	Refrigerator	13.5 Cu. Ft. (382 Liters)
	Freezer	8.1 Cu. Ft. (229 Liters)
	Total Capacity	21.6 Cu. Ft. (611 Liters)
Overall Dimensions
	Width	35 5/8" (90.5 cm)
	Width with Side Panels	35 7/8" (91.1 cm)
	Height from Bottom	70" (178.0 cm)
	Height from Bottom with Tops/Grilles	71 7/8" (182.6 cm)
	Depth to Front of Door	26 3/4" (67.9 cm)
Cutout Dimensions
	Width	36" (91.4 cm)
	Height	70 1/2" (179.0 cm)
	Height with Tops/Grilles	72" (182.9 cm)
	Depth	24" (61.0 cm) Min.
	Note	When installing into a cutout, the edge of the door must be 2 7/8" (7.3 cm) from the adjacent countertop cabinet.
