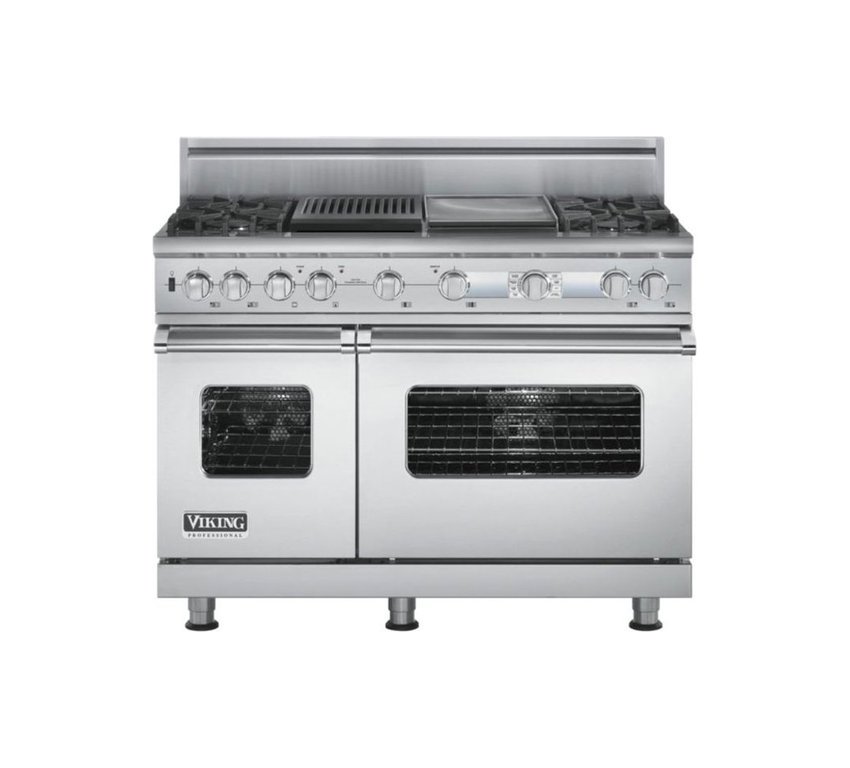

Viking Professional Series VDSC4874GQSS

Mouse Over Main Image to Zoom In

• Commercial-Type Cooking Power
• Exclusive VSH (VariSimmer-to-high) Pro Sealed Burner System Combination of unique patented burner and surface design provides cleanability plus superior performance at any temperature setting
• Brass surface burners with electric spark ignition accommodate an infinite range of settings
• VariSimmer setting, found on each surface burner, provides gentle, even heat across the entire cooking vessel surface
• Automatic electric spark re-ignition; surface burners light at any position on the knob and re-light if extinguished, even on lowest setting
• Right oven - large self-clean convection oven
• Left oven - self-clean oven
• Professional features of the 48" wide right oven
• Features found in the 48" wide left oven
• All convection modes utilize the ProFlow Convection Air Baffle, which is specifically designed to ensure balanced airflow for even heat distribution
• Two oven lights with control panel switch in large oven; one oven light in left oven
• Oven "on" indicator light
• Self-clean indicator light
• Heavy-duty, porcelain broiler pan/grid
• Commercial-style bezels around control panel knobs
• Easy Operation and Cleanup
• Large, easy-to-read knobs with childproof, push-to-turn safety feature
• Heavy-duty oven door handle
• Automatic electric spark ignition - no standing pilot to re-light, waste energy, or add extra heat to the kitchen
• Heavy-duty, porcelainized, cast-iron, removable surface burner grates provide continuous front-to-rear, left-to-right surface for easy movement of large pots
• Stainless steel landing ledge with solid, welded, seamless finish
• High-density insulation contains heat within the oven cavity for maximum energy savings and performance
• Self-cleaning, porcelain oven
• Exclusive one-piece tooled and porcelainized cooking surface
• Dishwasher-safe burner caps are easily removed for quick cleaning
• Removable pull-out drip tray with roller-bearing glides for smooth operation (griddle and char-grill models only)
• Griddle/Simmer Plate - 12" wide
• Commercial-grade, machined steel construction
• Commercial-type, blanchard finish holds cooking oils for stick-resistant cooking
• Thermostatically controlled for precise temperature
• Removable grease pan for easy cleanup
• Gas Char-Grill - 12" wide
• Automatic electric spark ignition/re-ignition
• Porcelainized, cast-iron, two-piece grate
• Porcelainized flavor-generator plates catch drippings and circulate smoke around food for outdoor-grilled flavor
• Burner shield protects burner from food drippings
• All grill components remove and replace easily for quick cleanup
• Removable grease pan for easy cleanup
• Installation Accessories Available
• 6" high stainless steel backguard (B48BG6)
• 10" high stainless steel backguard (B48BG10)
• Stainless steel high-shelf (B48HS24)
• Stainless steel island trim (B48TII)
• Stainless steel countertop side trim (RE24CST)
• Curb base front in stainless steel (RS48CBF4) conceals range legs
• Exclusive Finishes
• Available in Stainless Steel (SS), Black (BK), White (WH), Almond (AL), Biscuit (BT), Stone Gray (SG), Graphite Gray (GG), Burgundy (BU), Lemonade (LE), Mint Julep (MJ), Forest Green (FG), Viking Blue (VB), Cobalt Blue (CB), and Eggplant (EP)
• May be ordered with Brass Trim Option (BR) for nameplate, window trims, door handles/ brackets, drip tray pull, knob bezels, and grate support side trim
• Warranty Highlights
• One-year full covers complete product
• Five-year limited - surface burners/oven elements
• Ten-year limited - porcelain oven and porcelain inner door panel
• Ninety-day limited - cosmetic parts such as glass, painted items, and decorative items
• Additional Cooking Accessories Available Under "Accessories"

Burner Ratings
	Surface Burner Rating	15,000 BTU Nat./13,500 BTU LP (4.4 kW/4.0 kW)
	Griddle Burner Rating	15,000 BTU Nat./13,500 BTU LP (4.4 kW/4.0 kW)
	Grill Burner Rating	18,000 BTU Nat./16,000 BTU LP (5.3 kW/4.7 kW)
	Preheat Rating	240V - 6000 Watts, 208V - 4530 Watts
	Maxi Broil 8-Pass Rating	240V - 3000 Watts, 208V - 2250 Watts
	Mini Broil 4-Pass Rating	240V - 1250 Watts, 208V - 940 Watts
	Right Oven Bake Rating	240V - 2935 Watts, 208V - 2247 Watts
	Left Oven Bake Rating	240V - 1932 Watts, 208V - 1494 Watts
	Convection Cook Rating	240V - 2200 Watts, 208V - 1650 Watts
Others
	Electrical Requirements	240-208/120 VAC, 60 Hz Electrical Connection Box on Product, Connect with Locally Supplied 3-Wire, Flexible Cord or "pigtail" Rated 40 Amp 125-250 VAC Minimum. Cord Must Be Agency Approved for Use with Household Electric Ranges.
	Maximum Amp Usage	240V - 8914 Watts; 37.1 Amps, 208V - 6994 Watts; 33.6 Amps
	Gas Requirements	Shipped Natural Gas Standard; Convert to LP/Propane Factory Installed; Accepts Standard Residential 1/2" ID Gas Service Line
	Approximate Shipping Weight	629 Lbs. (283.1 kg)
Overall Dimensions
	Overall Width	47 7/8" (121.6 cm)
	Overall Base Height	37 3/8" (94.9 cm) to 39 1/8" (99.4 cm)
	Legs Adjust	1 3/4" (4.5 cm)
	Overall Depth To End of Side Panel	24 5/16" (61.8 cm)
	Overall Depth To End of Control Panel	26 1/4" (66.7 cm)
	Overall Depth To End of Knobs	27 3/4" (70.5 cm)
Oven Interior Dimensions
	Right Oven Interior Width	23" (58.4 cm)
	Right Oven Interior Height	16 1/8" (41.0 cm)
	Right Oven Interior Depth	15 3/8" (39.1 cm)
	Right Oven Interior Overall Size	3.3 Cu. Ft.
	Left Oven Interior Width	12 1/8" (30.8 cm)
	Left Oven Interior Height	16 1/8" (41.0 cm)
	Left Oven Interior Depth	17 1/4" (43.8 cm)
	Left Oven Interior Overall Size	2.1 Cu. Ft.
