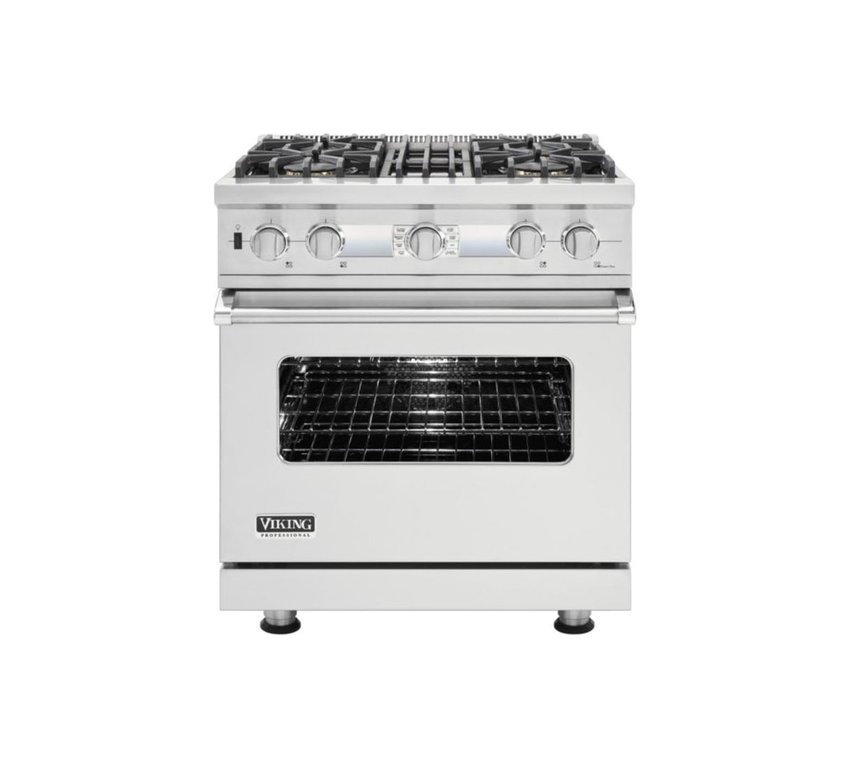

New! - Custom designed electronic controller and digital display combine professional cooking features with the sleek styling and design.
Additional features and functions associated with new custom designed electronic controls.
Custom Settings
Exclusive VSH (VariSimmer-to-high) Pro Sealed burner System.
Exclusive VariSimmer setting for all burners maintains an incredibly low simmer, perfect for delicate sauces and chocolates.
Exclusive - all burners equipped with SureSpark Ignition System for consistent and reliable ignition.
New! - Heavy duty metal knobs with stainless steel finish shipped standard.
Exclusive - largest oven cavity in the industry.
Exclusive patented Vari-Speed Dual Flow convection system has the largest convection fan in the industry.
Concealed 10-pass dual bake element provides precise temperature control and easy clean-up.
Extra large Gourmet Glo glass enclosed infrared broiler provides superior broiling performance.
Rapid Ready Preheat provides one of the fastest preheat times so your oven is ready to being cooking when you are.
Oven has six porcelain coated rack supports and comes standard with two standard oven racks and one TruGlide full extension oven rack.
Three strategically located oven lights provide maximum visibility.
Heavy-duty broiler pan and tray provide more roasting and broiling options.
High performance cooking modes.
Easy Operation and Cleanup
New! Single piece control panel easily removable for convenient front access to surface element valves/switches/spark modules plus oven switches and door lock assembly.
New! Front serviceable oven electronic control board.
Exclusive one piece tooled and porcelainized cooking surface for easy clean-up.
Burner caps are easily removable for quick cleaning.
Heavy-duty, porcelainized, cast-iron removable surface grates provide continuous front-to-rear, left-to-right surface for easy movement of large pots.
Self-cleaning porcelain oven.
Concealed 10-pass dual bake element makes for easy clean up of the oven cavity.
Finish Details
Stainless Steel (SS), Black (BK), White (WH), Metallic Silver (MS), Graphite Gray (GG), Stone Gray (SG), Taupe (TP), Biscuit (BT), Cotton White (CW), Oyster Gray (OG), Golden Mist (GM), Lemonade (LE), Sage (SA),
Mint Julep (MJ), Sea Glass (SE), Iridescent Blue (IB), Viking Blue (VB), Pumpkin (PM), Racing Red (RR), Apple Red (AR), Burgundy (BU), Plum (PL), Chocolate (CH), Cobalt Blue (CB).
May be ordered with Brass Trim Accent (BR).
Available at evVive.
www.evVive.com
Optional Installation Accessories
Island Trim - P30TIISS - shipped standard with range.
Ninety-day limited - cosmetic parts such as glass, painted items and decorative items.
MFG SKU VDSC530T-4BSS
Our Viking sales territory includes NY, NJ, PA, DE, and WV. For more details call us at 877-679-2686.
Burner Ratings
Left Front Grated Burner
15,000 BTU Nat./13,500 BTU LP (4.4 kW/4.0 kW)
Left Rear Grated Burner
15,000 BTU Nat./13,500 BTU LP (4.4 kW/4.0 kW)
Right Front Grated Burner
18,500 BTU Nat./16,600 BTU LP (5.4 kW/4.9 kW)
Right Rear Grated Burner
15,000 BTU Nat./13,500 BTU LP (4.4 kW/4.0 kW)
Others
Electrical Requirements
240-208 VAC, 60 Hz Electrical Connection Box on Product, Connect with Locally Supplied 3-Wire, Flexible Cord or "Pigtail" Rated 40 Amp 125-250 VAC Minimum. Cord Must Be Agency Approved for Use with Household Electric Ranges.
Maximum Amp Usage
240V - 25.4 Amps, 208V - 22.9 Amps
Gas Requirements
Shipped Natural Gas Standard; Convert to LP/Propane Factory Installed; Accepts Standard Residential 1/2" ID Gas Service Line
