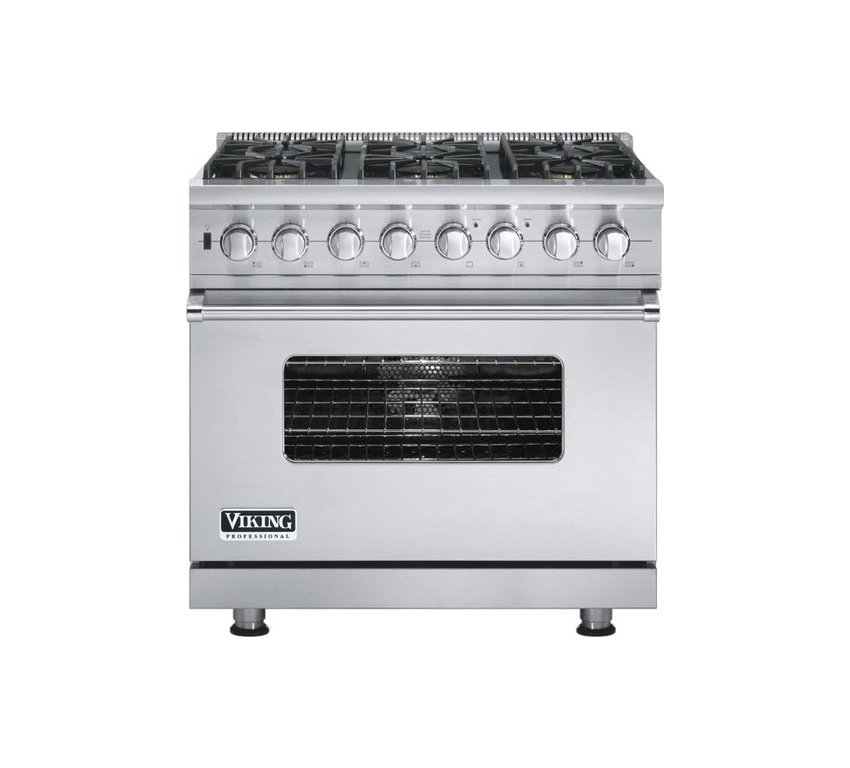

Viking VDSC5366BSS 36" Professional Series Dual Fuel Range
Part Number: VDSC5366BSS
Mouse Over Main Image to Zoom In
36" Pro-Style Dual-Fuel Range with 6 VSH Pro Sealed Burners/VariSimmers Including 18,500 BTU Power Plus Burner, 5.6 cu. ft. Vari-Speed Dual Flow Convection Oven, Self-Clean, Gourmet-Glo Infrared Broiler and SureSpark Ignition: Stainless Steel
Viking VDSC5366BSS
Part Number: VDSC5366BSS
Our Viking sales territory includes NY, NJ, PA, DE, and WV. For more details call us at 877-679-2686.
Concealed 10-pass dual bake element makes for easy clean up of the oven cavity.
Exclusive Finishes
Available in Stainless Steel (SS), Black (BK), White (WH), Metallic Silver (MS), Graphite Gray (GG), Stone Gray (SG), Taupe (TP), Biscuit (BT), Cotton White (CW), Oyster Gray (OG), Golden Mist (GM), Lemonade (LE),
Sage (SA), Mint Julep (MJ), Sea Glass (SE), Iridescent Blue (IB), Viking Blue (VB), Pumpkin (PM), Racing Red (RR), Apple Red (AR), Burgundy (BU), Plum (PL), Chocolate (CH), Cobalt Blue (CB).
May be ordered with Brass Trim Option (BR) for nameplate, window trim, door handle/ brackets, knob bezels, and grate support side trim.
Included Accessory
Island Trim - P36TII (shipped standard with 36" range).
Optional Accessories
8" High Backguard - P36BG8
High Shelf - B36HS24
Countertop Side Trim - P24CST
Curb Base and Custom Curb Base Front - P36CBF4
Warranty Highlights
One-year full covers complete unit.
Five-year limited - surface/tube burners.
Ten-year limited - porcelain oven.
Ninety-day limited - cosmetic parts such as glass, painted items and decorative items.
Additional Cooking Accessories Available Under "Accessories" Tab
MFG SKU VDSC536-6BSS
Our Viking sales territory includes NY, NJ, PA, DE, and WV. For more details call us at 877-679-2686.
Burner Ratings
Surface Burner Rating - Front Right
18,500 BTU Nat./16,600 BTU LP (5.4 kW/4.9 kW)
Surface Burner Rating
15,000 BTU Nat./12,500 BTU LP (4.4 kW/3.7 kW)
Griddle Rating
N/A
Grill Rating
N/A
Others
Power Cord
Not Included
Electrical Requirements
240-208 VAC, 60 Hz Electrical Connection Box on Product, Connect with Locally Supplied 3-Wire, Flexible Cord or "Pigtail" Rated 40 Amp 125-250 VAC Minimum. Cord Must Be Agency Approved for Use with Household Electric Ranges.
Maximum Amp Usage
240V - 28.5 Amps, 208V - 24.7 Amps
Gas Requirements
Shipped Natural Gas Standard; Convert to LP/Propane Factory Installed; Accepts Standard Residential 1/2" ID Gas Service Line
