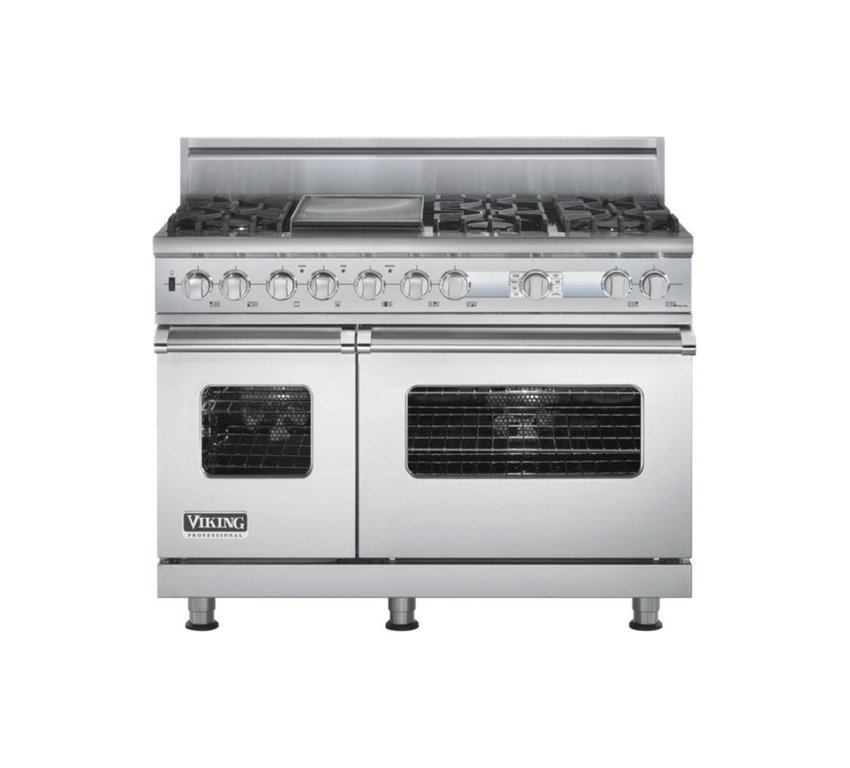

Viking Professional Custom Series VDSC548T6QSS


Part Number: VDSC548T6GSS

48" Pro-Style Dual-Fuel Range with 6 VSH Pro Sealed Burners, 4.7 cu. ft. Vari-Speed/TruConvec Convection Oven, Self-Clean, Infrared Broiler, Griddle/Simmer and Electronic Controls: Stainless Steel

Viking VDSC548T6GSS


Part Number: VDSC548T6GSS

Our Viking sales territory includes NY, NJ, PA, DE, and WV. For more details call us at 877-679-2686.
Why shop evVive.com?
  • Authorized Dealer
  • Experienced Sales Team
  • Factory Trained Installers
  • Competitive Package Deals
Today's Price$12299.00
Still Need Help? Call 877-679-2686

  • *** Power Cord Not Included ***
  • Commercial-Type Cooking Power
  • New! - Custom designed electronic controller and digital display combine professional cooking features with the sleek styling and design.
  • Additional features and functions associated with new custom designed electronic controls.
  • Custom Settings
  • Exclusive VSH (VariSimmer-to-high) Pro Sealed burner System
  • Exclusive VariSimmer setting for all burners.
  • Exclusive - all burners equipped with SureSpark Ignition System for consistent and reliable ignition.
  • New! - Heavy duty metal knobs with stainless steel finish shipped standard.
  • Exclusive patent pending Vari-Speed Dual Flow convection system has the largest convection fan in the industry.
  • Concealed 10 pass dual bake element provides precise temperature control (right oven).
  • Concealed 4 pass bake element (left oven).
  • GourmetGlo glass enclosed infrared broiler provides superior broiling performance.
  • Rapid Ready Preheat provides one of the fastest preheat times - so your oven is ready to being cooking when you are (right oven).
  • Oven has six porcelain coated rack supports.
  • Three strategically located oven lights provide maximum visibility (left oven has one light).
  • Heavy-duty broiler pan and tray with rack provide more roasting and broiling options.
  • High performance cooking modes in right oven.
  • High performance cooking modes in left oven.
  • Easy Operation and Cleanup
  • Exclusive one piece tooled and porcelainized cooking surface for easy clean up.
  • Burner caps are easily removable for quick cleaning.
  • Heavy-duty, porcelainized, cast-iron removable surface grates.
  • NEW! - one-piece control panel assembly.
  • Griddle/Simmer Plate
  • Commercial-grade, machined steel construction with Blanchard finish to retain cooking oils for stick-resistant cooking.
  • Thermostatically controlled for precise temperatures.
  • New! - grease trough holds 2-1/2 cups of liquid and can be easily removed from the front of the griddle for cleaning.
  • Exclusive Finishes
  • Available in Stainless Steel (SS), Black (BK), White (WH), Metallic Silver (MS), Graphite Gray (GG), Stone Gray (SG), Taupe (TP), Biscuit (BT), Cotton White (CW), Oyster Gray (OG), Golden Mist (GM), Lemonade (LE),
  • Sage (SA), Mint Julep (MJ), Sea Glass (SE), Iridescent Blue (IB), Viking Blue (VB), Pumpkin (PM), Racing Red (RR), Apple Red (AR), Burgundy (BU), Plum (PL), Chocolate (CH), Cobalt Blue (CB)
  • Included Accessory
  • Island Trim - P48TII (Shipped Standard with 48" Range)
  • Optional Accessories
  • 8" Height Backguard - P48BG8
  • High Shelf - B48HS24
  • Countertop Side Trim - P24CST
  • Countertop Rear Trim - P48CRT
  • Curb Base and Custom Curb Base Front - P48CBF4
  • Portable Griddle - SBPGD
  • TruGlide Oven Rack - TESO301
  • Warranty Highlights
  • One-year full - covers complete unit.
  • Five-year limited - surface/tube burners.
  • Ten-year limited - porcelain oven.
  • Ninety-day limited - cosmetic parts such as glass, painted items and decorative items.
  • MFG SKU VDSC548T-6GSS
Our Viking sales territory includes NY, NJ, PA, DE, and WV. For more details call us at 877-679-2686.
Burner Ratings
Surface Burners (Each)15,000 BTU Nat./12,500 BTU LP (4.4 kW/3.7 kW)
TruPower Plus Burner (Front Right)18,500 BTU Nat./16,600 BTU LP (5.4 kW/4.9 kW)
One Griddle15,000 BTU Nat./12,500 BTU LP (4.4 kW/3.7 kW)
Others
Electrical Requirements240-208 VAC, 60 Hz Electrical Connection Box on Product, Connect with Locally Supplied 3-Wire, Flexible Cord or "Pigtail" Rated 40 Amp 125-250 VAC Minimum. Cord Must Be Agency Approved for Use with Household Electric Ranges.
Maximum Amp Usage240V - 37.0 Amps, 208V - 32.0 Amps
Gas RequirementsShipped Natural Gas Standard; Convert to LP/Propane Factory Installed; Accepts Standard Residential 1/2" ID Gas Service Line
Gas Manifold PressureNatural 5.0" W.C.P. / Liquid Propane L/P 10.0" W.C.P.
Approximate Shipping Weight585 Lbs. (263.3 kg)
Overall Dimensions
Overall Width47 7/8" (121.6 cm)
Overall Depth To End of Side Panel24 5/16" (61.8 cm)
Overall Depth To Front of Door25 3/4" (65.4 cm)
Overall Depth To End of Landing Edge28 1/16" (71.2 cm)
Overall Depth To End of Door Handle28 11/16" (72.9 cm)
Overall Height to Top of Side Trim35 7/8" (91.1 cm) to 37" (94.0 cm)
Legs Adjust1 1/8" (2.9 cm)
Additions to Base Height to Top of Island TrimAdd 1" (2.5 cm)
Additions to Base Height to Top of BackguardAdd 8" (20.3 cm)
Additions to Base Height to Top of High ShelfAdd 23 1/2" (59.7 cm)
Oven Interior Dimensions
Right Oven Interior Width25 5/16" (64.6 cm)
Right Oven Interior Depth (AHAM)16 13/16" (42.7 cm)
Right Oven Interior Depth (Overall)19 1/2" (49.5 cm)
Right Oven Interior Height16 1/2" (41.9 cm)
Right Oven Interior Size (AHAM)4.1 Cu. Ft.
Right Oven Interior Size (Overall)4.7 Cu. Ft.
Left Oven Interior Width13 3/4" (34.9 cm)
Left Oven Interior Depth (AHAM)18 5/8" (47.3 cm)
Left Oven Interior Depth (Overall)19 1/2" (49.5 cm)
Left Oven Interior Height16 1/2" (41.9 cm)
Left Oven Interior Size (AHAM)2.5 Cu. Ft.
Left Oven Interior Size (Overall)2.6 Cu. Ft.
