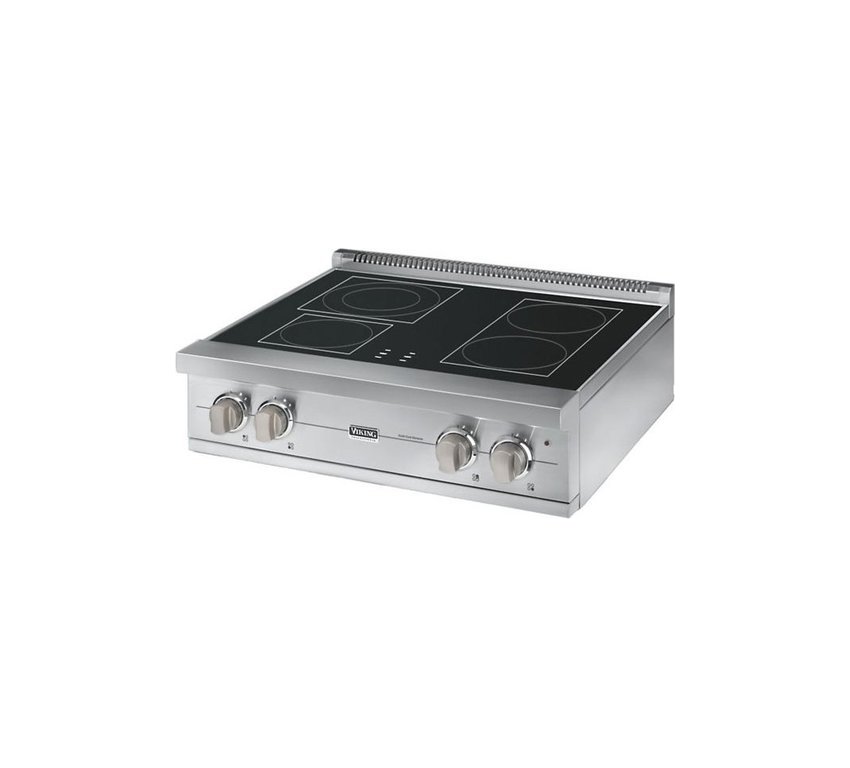

Viking VERT5304BSB 30" Professional Series Electric Rangetop

Mouse Over Main Image to Zoom In

• Commercial-Type Cooking Power
• QuickCook surface elements utilize ribbon technology.
• Available at evVive.
• www.evVive.com
• Wide range of surface element sizes and wattages.
• High infrared transmission for fast cooking, regardless of the type of cookware used.
• New! Heavy-duty metal knobs with stainless steel finish shipped standard.
• Easy Operation and Cleanup
• Strong, wear resistant glass ceramic surface for excellent cleanability.
• Standard Installation Accessories
• Island Trim - P30TIISS
• Optional Installation Accessories
• 8" High Backguard - P30BG8
• High Shelf - B30HS24
• Countertop Side Trim - P24CST
• Countertop Rear Trim - P30CRT
• Exclusive Finishes
• Available in Stainless Steel/Black (SB), featuring black glass and stainless steel knobs or Stainless Steel/White (SW), featuring white glass and white knobs.
• May be ordered with Brass Accent Option (BR) for nameplate and knob bezels.
• Warranty Highlights
• One-year full - complete unit.
• Five-year limited - surface elements.
• Ninety-day limited - cosmetic parts such as glass, painted items and decorative items.
• Lifetime limited - stainless steel exterior.
• Warranty valid on Viking products shipped within the United States and Canada.

Burner Ratings
	Left Front Surface Element	240V - 1,500 Watts, 208V - 1,125 Watts
	Left Rear Surface Dual Element	240V - 2,500/1,000 Watts, 208V - 1,875/750 Watts
	Bridge	240V - 800 Watts, 208V - 600 Watts
	Right Front Surface Element	240V - 1,800 Watts, 208V - 1,350 Watts
	Right Rear Surface Element	240V - 1,800 Watts, 208V - 1,350 Watts
Others
	Electrical Requirements	3-Wire, 240/208 VAC, 60 Hz, 40 Amp Electrical Connection. (Unit is equipped with No. 10 ground wire in conduit. Should be fused separately.)
	Maximum Amp Usage	240V - 34.6 Amps, 208V - 29.8 Amps
	Approximate Shipping Weight	110 Lbs. (49.5 kg)
Overall Dimensions
	Overall Width	29 7/8" (75.9 cm)
	Overall Depth to End of Side Panel	24 5/16" (61.8 cm)
	Overall Depth to End of Landing Edge	28 1/16" (71.3 cm)
	Overall Depth to End of Knobs	28 9/16" (72.6 cm)
	Overall Height to Top of Glass Frame	8 1/8" (20.6 cm)
	Overall Height to Top of Island Trim	Add 1" (2.5 cm)
	Overall Height to Top of 8" Backguard	Add 8" (20.3 cm)
	Overall Height to Top of High Shelf	Add 23 1/2" (59.7 cm)
Cutout Dimensions
	Cutout Width	30" (76.2 cm)
	Cutout Depth	24" (61.0 cm)
	Cutout Height	7 1/2" (19.1 cm)
