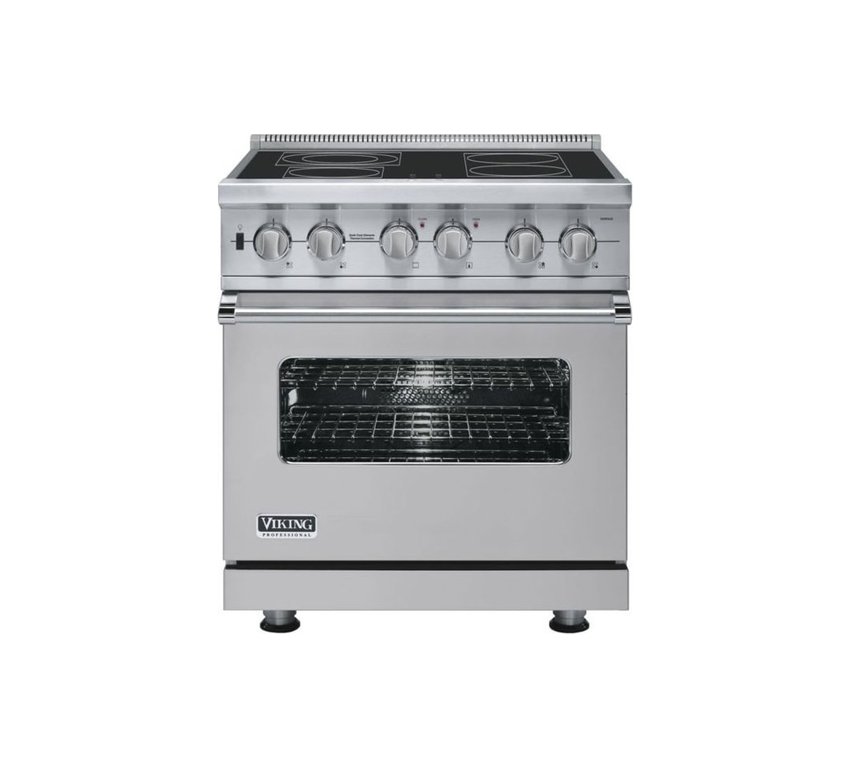

Viking VESC5304BSS 30" Professional Series Electric Range


Part Number: VESC5304BSS

30" Pro-Style Electric Range with 4 QuickCook Surface Elements w/ a Bridge Element, 4.7 cu. ft. TruConvec/Vari-Speed Dual Flow Convection Oven, Self-Clean, 10-Pass Dual Bake Element and Rapid Ready Preheat: Stainless Steel

Viking VESC5304BSS


Part Number: VESC5304BSS

Our Viking sales territory includes NY, NJ, PA, DE, and WV. For more details call us at 877-679-2686.

Why shop evVive.com?
  • Authorized Dealer
  • Experienced Sales Team
  • Factory Trained Installers
  • Competitive Package Deals

Today's Price$5879.00
Still Need Help? Call 877-679-2686

  • Commercial Type Cooking Power
  • QuickCook surface elements utilize ribbon technology - elements reach full power in about three seconds.
  • Wide range of surface elements and wattages.
  • High infrared transmission for fast surface cooking, regardless of type of cookware used.
  • Exclusive - largest oven cavity in the industry.
  • Exclusive patent pending Vari-Speed Dual Flow convection system has the largest convection fan in the industry; the 8-1/2" fan works bi-directionally for maximum airflow and excellent cooking results.
  • Concealed 10 pass dual bake element provides precise temperature control.
  • Extra large glass enclosed infrared broiler provides superior broiling performance.
  • Rapid Ready Preheat provides one of the fastest preheat times so your oven is ready to being cooking when you are.
  • Oven has six porcelain coated rack supports and comes standard with two standard oven racks and one TruGlide full extension oven rack.
  • Three strategically located oven lights provide maximum visibility.
  • Heavy-duty broiler pan and tray with rack provide more roasting and broiling options.
  • High performance cooking modes include Bake, Convection Bake, TruConvec convection cooking, Convection roast, Hi, Med and Low Broil, and Convection Broil.
  • Easy Operation and Cleanup
  • Stainless steel landing ledge with solid, welded, seamless finish.
  • Strong, wear-resistant glass ceramic surface for excellent cleanability.
  • Concealed 10-pass dual bake element makes for easy clean up of the oven cavity.
  • Installation Accessories
  • Stainless steel 8" high Backguard (P30BG8SS) Included.
  • Stainless steel high shelf (B30HS24SS).
  • Stainless steel island trim (P30TIISS).
  • Stainless steel countertop side trim (P24CSTSS).
  • Curb base front in stainless steel (P30CBF4SS) conceals range legs.
  • Can be easily converted to custom curb base front.
  • Optional Accessories
  • Portable Griddle - GCPGD.
  • Exclusive Finishes
  • Stainless Steel (SS), Black (BK), White (WH), Metallic Silver (MS), Graphite Gray (GG), Stone Gray (SG), Taupe (TP), Biscuit (BT), Cotton White (CW), Oyster Gray (OG), Golden Mist (GM), Lemonade (LE),
  • Sage (SA), Mint Julep (MJ), Sea Glass (SE), Iridescent Blue (IB), Viking Blue (VB), Pumpkin (PM), Racing Red (RR), Apple Red (AR), Burgundy (BU), Plum (PL), Chocolate (CH), Cobalt Blue (CB).
  • White finish includes glass ceramic top, door front, lower front panels, and knobs.
  • May be ordered with Brass Trim Option (BR).
  • Warranty Highlights
  • One-year full covers complete unit.
  • Lifetime limited - stainless steel exterior.
  • Ten-year limited - porcelain oven.
  • Five-year limited - surface burners/heating elements.
  • Ninety-day limited - cosmetic parts such as glass, painted items and decorative items.
  • Additional Cooking Accessories Available Under "Accessories"
Our Viking sales territory includes NY, NJ, PA, DE, and WV. For more details call us at 877-679-2686.
Burner Ratings
Left Front Surface Element Rating240V - 1500 Watts
Left Rear Surface Dual Element Rating240V - 2500 Watts/1000 Watts
Right Front Surface Element Rating240V - 1800 Watts
Bridge Surface Element Rating240V - 800 Watts
Right Rear Surface Element Rating240V - 1800 Watts
Preheat Rating240V - 24.0 Amps, 208V - 20.8 Amps
Maxi Broil 8-Pass Rating240V - 3000 Watts
Mini Broil 4-Pass Rating240V - 1250 Watts
Bake Rating240V - 2935 Watts
Convection Cook Rating240V - 2200 Watts
Others
Electrical Requirements240-208 VAC, 60 Hz Electrical Connection Box On Product, Connect with Locally Supplied 3-Wire, Flexible Cord or "Pigtail" Rated 60 Amp 125-250 VAC Minimum.
Power CordNot Included. Cord Must Be Agency Approved For Use with Household Electric Ranges.
Maximum Amp Usage240V - 59.0 Amps, 208V - 51.3 Amps
Approximate Shipping Weight424 Lbs. (190.8 kg.)
Overall Dimensions
Overall Width29 7/8" (75.9 cm)
Overall Height to Top of Glass Frame35 7/8" (91.1cm) to 37" (94.0 cm)
Legs Adjust1 1/8" (2.9 cm)
Overall Depth To End of Side Panel24 5/16" (61.8 cm)
Overall Depth To End of Landing Edge28 1/16" (71.3 cm)
Overall Depth To End of Door Handle28 11/16" (72.9 cm)
Additions to Base Height to Top of Island TrimAdd 1 1/4" (3.2 cm)
Additions to Base Height to Top of High-ShelfAdd 23 1/2" (59.7 cm)
Oven Interior Dimensions
Oven Interior Width25 5/16" (64.6 cm)
Oven Interior Height16 1/2" (41.9 cm)
Oven Interior Depth (Overall)19 1/2" (49.5 cm)
Oven Interior Depth (AHAM)16 13/16" (42.7 cm)
Oven Volume (Overall)4.7 Cu. Ft.
Oven Volume (AHAM)4.1 Cu. Ft.

Accessories
