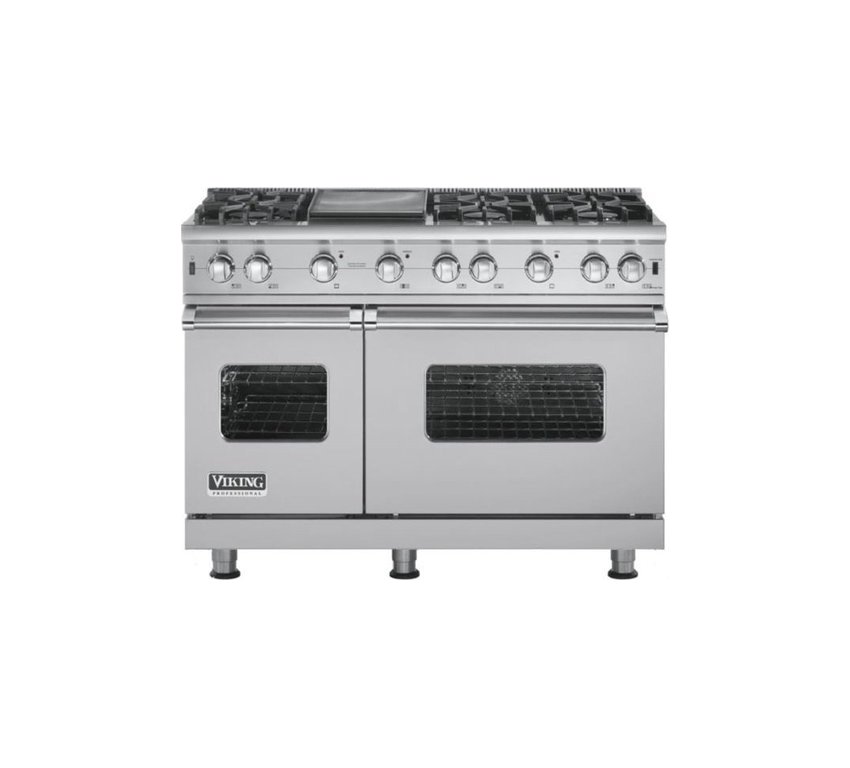

Viking VGCC5486GSS 48" Professional Series Sealed Burner Gas Range


Part Number: VGCC5486GSS

48" Pro-Style Gas Range with 6 VSH Pro Sealed Burners/VariSimmers Including 18,500 BTU PowerPlus, 4.0 cu. ft. ProFlow Convection Oven, 2.1 cu. ft. Bake Oven, Manual-Clean, 12" Griddle/Simmer and Infrared Broiler (Not Exact Image): Stainless Steel

Viking VGCC5486GSS


Part Number: VGCC5486GSS

Our Viking sales territory includes NY, NJ, PA, DE, and WV. For more details call us at 877-679-2686.
Why shop evVive.com?
  • Authorized Dealer
  • Experienced Sales Team
  • Factory Trained Installers
  • Competitive Package Deals
Today's Price$8999.00
Still Need Help? Call 877-679-2686

  • Commercial-Type Cooking Power
  • Exclusive VSH (VariSimmer-to-High) Pro Sealed burner System
  • Exclusive VariSimmer setting for all burners.
  • Exclusive - all burners equipped with SureSpark Ignition System for consistent and reliable ignition.
  • New! - Heavy duty metal knobs with stainless steel finish shipped standard.
  • Exclusive combination of single 30,000 BTU U-shaped burner and infrared broiler with SureSpark Ignition System.
  • GourmetGlo Infrared Broiler provides intense searing heat for broiling applications (right oven only).
  • Spacious-capacity oven with six rack positions.
  • Six functions.
  • All convection functions utilize the ProFlow Convection Air Baffle.
  • Convection fan switch conveniently located on control panel.
  • Left baking oven provides secondary oven.
  • Heavy-duty broiler pan/grid.
  • Two halogen oven lights for excellent visibility throughout the oven cavity.
  • Easy Operation and Cleanup
  • Exclusive one piece tooled and porcelainized cooking surface for easy clean up.
  • Burner caps are easily removable for quick cleaning.
  • Heavy-duty, porcelainized, cast-iron removable surface grates.
  • NEW! - one-piece control panel assembly.
  • Griddle/Simmer Plate
  • Commercial-grade, machined steel construction with Blanchard finish to retain cooking oils for stick-resistant cooking.
  • Thermostatically controlled for precise temperatures.
  • New! - cast aluminum grease trough holds 2 1/2 cups of liquid and can easily removed from the front of the griddle for cleaning.
  • Exclusive Finishes
  • Available in Stainless Steel (SS), Black (BK), White (WH), Metallic Silver (MS), Graphite Gray (GG), Stone Gray (SG), Taupe (TP), Biscuit (BT), Cotton White (CW), Oyster Gray (OG), Golden Mist (GM), Lemonade (LE),
  • Sage (SA), Mint Julep (MJ), Sea Glass (SE), Iridescent Blue (IB), Viking Blue (VB), Pumpkin (PM), Racing Red (RR), Apple Red (AR), Burgundy (BU), Plum (PL), Chocolate (CH), Cobalt Blue (CB)
  • May be ordered with Brass Trim Option (BR) for nameplate, window trim, door handle/ brackets, knob bezels, thermal-convection switch bezel and grate support side trim.
  • Included Accessory
  • Island Trim - P48TII (shipped standard with 48" range).
  • Optional Accessories
  • 8" High Backguard - P48BG8.
  • High Shelf - B48HS24.
  • Countertop Side Trim - P24CST.
  • Countertop Rear Trim - P48CRT.
  • Curb Base and Custom Curb Base Front - P48CBF4.
  • Portable Griddle - SBPGD.
  • Warranty Highlights
  • One-year full - covers complete unit.
  • Five-year limited - surface/tube burners.
  • Ten-year limited - porcelain oven.
  • Ninety-day limited - cosmetic parts such as glass, painted items and decorative items.
  • Additional Cooking Accessories Available Under "Accessories" Tab
  • MFG SKU VGCC548-6GSS
Our Viking sales territory includes NY, NJ, PA, DE, and WV. For more details call us at 877-679-2686.
Burner Ratings
Surface Burner Rating - Front Right18,500 BTU Nat./16,600 BTU LP (5.4 kW/4.9 kW)
Surface Burner Rating15,000 BTU Nat./12,500 BTU LP (4.4 kW/3.7 kW)
Broil Burner Rating (Right Oven Only)18,000 BTU Nat./16,000 BTU LP (5.3 kW/4.7 kW)
Bake Burner Rating (Right Oven)30,000 BTU Nat./LP (8.8 kW)
Bake Burner Rating (Left Oven)15,000 BTU Nat./LP (4.4 kW)
Griddle Rating15,000 BTU Nat./12,500 BTU LP (4.4 kW/3.7 kW)
Others
Power Cord4 Ft. Cord Included with Range
Electrical Requirements120 VAC/60 Hz; 4 Ft. (121.9 cm), 3-Wire with Grounded 3-Prong Plug
Maximum Amp Usage1.89 Amps
Gas RequirementsShipped Natural Gas Standard; Convert to LP/Propane Factory Installed; Accepts Standard Residential 1/2" ID Gas Service Line
Gas Manifold PressureNatural 5.0" W.C.P.; Liquid Propane 10.0" W.C.P.
Approximate Shipping Weight585 Lbs. (263.3 kg)
Overall Dimensions
Overall Width47 7/8" (121.6 cm)
Overall Depth To End of Side Panel24 5/16" (61.8 cm)
Overall Depth To Front of Door25 3/4" (65.4 cm)
Overall Depth To End of Landing Edge28 1/16" (71.2 cm)
Overall Depth To End of Door Handle28 11/16" (72.9 cm)
Overall Base Height to Top of Side Trim35 7/8" (91.1 cm) to 37" (94.0 cm)
Legs Adjust1 1/8" (2.9 cm)
Island TrimAdd 1" (2.5 cm)
8" BackguardAdd 8" (20.3 cm)
High ShelfAdd 23 1/2" (59.7 cm)
Overall Oven Interior Dimensions
Width - Right23" (58.4 cm)
Width - Left12 1/8" (30.8 cm)
Depth - Overall18 3/4" (47.6 cm)
Depth - AHAM17" (43.2 cm)
Height16 1/8" (40.9 cm)
Oven Capacity - Overall4.0 Cu. Ft. (Right); 2.1 Cu. Ft. (Left)
Oven Capacity - AHAM3.7 Cu. Ft. (Right); 2.0 Cu. Ft. (Left)
