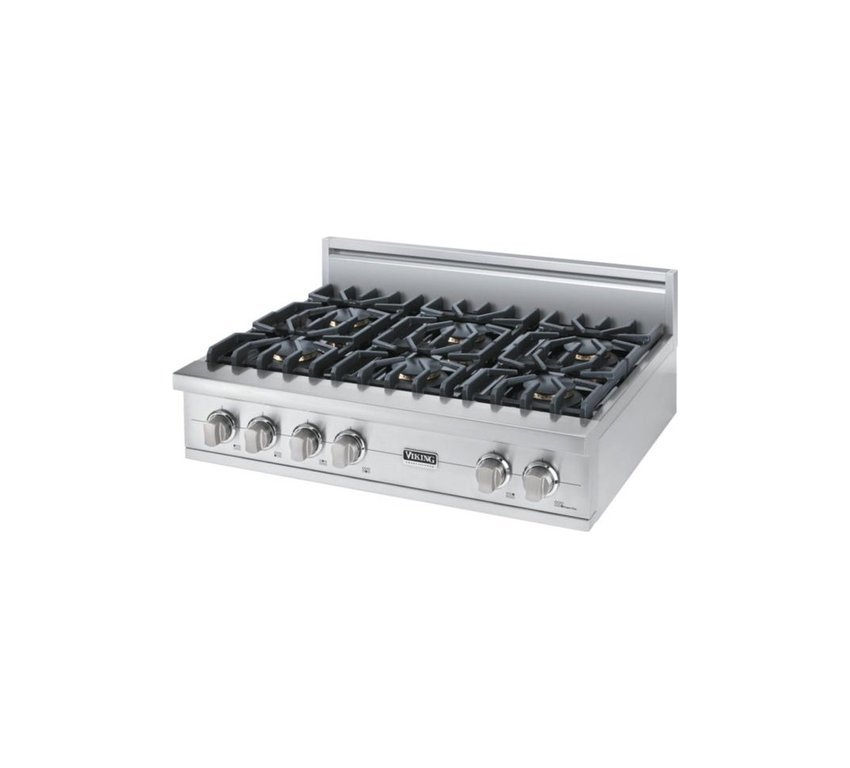

Viking VGRT5366BSS 36" Professional Series Sealed Burner Gas Rangetop


Part Number: VGRT5366BSS

36" Pro-Style Gas Rangetop with 6 Sealed Burners, Porcelain/Cast Iron Caps, Automatic Ignition and Island Trim: Stainless Steel

Viking VGRT5366BSS


Part Number: VGRT5366BSS

Our Viking sales territory includes NY, NJ, PA, DE, and WV. For more details call us at 877-679-2686.

Why shop evVive.com?
  • Authorized Dealer
  • Experienced Sales Team
  • Factory Trained Installers
  • Competitive Package Deals

Today's Price$3279.00
Still Need Help? Call 877-679-2686

  • Exclusive VSH Pro Sealed Burner System (VariSimmer to High) - combination of patented burner and top design cleanability plus superior performance at simmer and high
  • Exclusive 1 - PowerPlus 18,500 BTU burner (front right burner position)
  • 5 - 15,000 BTU brass sealed burners with porcelain/cast iron caps
  • Automatic ignition/re-ignition
  • Exclusive VariSimmer setting for all burners
  • Exclusive tooled and porcelainized cooking surface contains spills for easy cleaning
  • Shipped standard with heavy-duty metal knobs with stainless steel finish
  • Shipped standard with island trim already attached
Our Viking sales territory includes NY, NJ, PA, DE, and WV. For more details call us at 877-679-2686.
Overall Dimensions
Overall Width35 7/8"
Overall Height (from bottom) - To top of Grate9 1/4"
Overall Height (from bottom) - To top of Island9 1/8"
Additions to Base Height - To top of Backguard8"
Additions to Base Height - To top of High Shelf23 1/2"
Overall Depth (from Rear) - To end of Side Panel24 5/16"
Overall Depth (from Rear) - To end of Landing Edge28 1/16"
Overall Depth (from Rear) - To end of Knobs28 11/16"
Cutout Dimensions
Cutout Width36"
Cutout Height7 5/8"
Cutout Depth24" min./25 3/4" max.
Gas/Electrical Requirements
Gas RequirementsShipped Natural or LP/Propane gas; Field convertible with conversion kit (purchased separately); Accepts standard residential 1/2" ID gas service line
Gas Manifold PressureNatural 5.0" W.C.P./Liquid Propane 10.0" W.C.P.
Electrical Requirements120 VAC/60 Hz; 4 ft., 3-wire cord with grounded 2-prong plug attached to unit
Maximum Amp Usage0.5 Amps
Burner Ratings
Surface Burner Rating - Natural/LP - PowerPlus18,500 BTU/16,000 BTU
Surface Burner Rating - Natural/LP15,000 BTU/12,500 BTU
Griddle Burner RatingN/A
Char-Grill Burner RatingN/A
