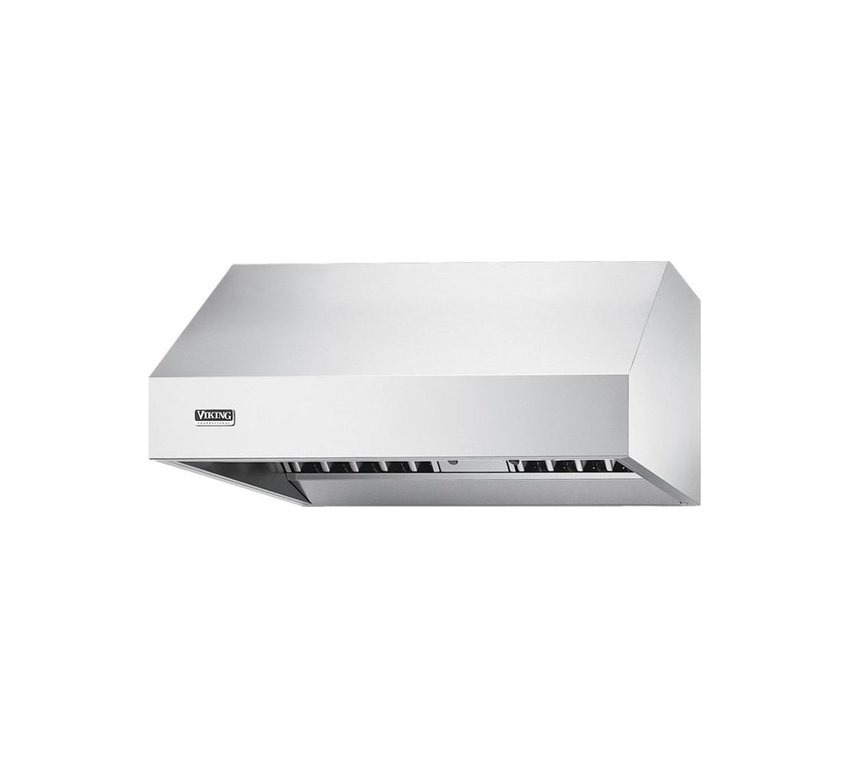

Viking VWH4248SS 42" Professional Series 24" Deep Wall Hood

Mouse Over Main Image to Zoom In

• Appearance and Design
• Heavy-duty construction; professional-type size, construction, design, and styling
• Virtually seamless design with no visible screws
• Halogen lights for better visibility and efficiency
• Heat sensor that turns the ventilator on full power when cooking temperatures reach uncomfortable levels
• Heat lamp standard (250-watt bulb not included)
• Interior- or Exterior-Power Ventilators
• Choose from interior- or exterior-power ventilators
• One ventilator, one duct run for any size hood/ventilator
• Must use Viking ventilator kits with Viking hoods; use of non-Viking kits voids the product warranty
• Easy Cleanup
• Commercial-type baffle filter system efficiently removes grease and heated vapors from the air; especially designed for use with commercial-type products
• Dishwasher-safe filters are easily removed for quick cleaning
• Removable trough which catches liquefied grease, making cleanup quick and easy
• Design of low profile filter system means less interior hood space to be cleaned
• Interior of rangehood canopy has stainless steel liner for increased rigidity, seamless appearance, and easy cleaning
• Optional Accessories
• Wall Hood Duct Covers
• Wall Hood Backsplashes
• Wall Hood Warming Shelf Panels
• Accessory Rail
• Exclusive Finishes
• Available in Stainless Steel (SS), Black (BK), White (WH), Almond (AL), Biscuit (BT), Stone Gray (SG), Graphite Gray (GG), Burgundy (BU), Lemonade (LE), Mint Julep (MJ), Forest Green (FG), Viking Blue (VB), Cobalt Blue (CB), and Eggplant (EP)
• Warranty Highlights
• One-year full covers complete product
• Five-year limited - all ventilator motors
• Ninety-day limited - cosmetic parts such as glass, painted items, and decorative items
• Interior/Exterior Blowers Available Under "Accessories" Tab

Specifications
	Exhaust Capacity	600 int./1200 int./900 ext./1200 ext. CFM
	Electrical Requirements	120VAC/60Hz, 6.2/8.7/8.7/6.1 Amps
	Spacers	2
	Baffle Filters	2
	Halogen Lights (50W)	2
	Heat Lamp (250W)	1
Recommended Duct Sizes
	VIV600 (600 CFM Interior)	7" Round
	VIV1200 (1200 CFM Interior)	10" Round
	VEV900 (900 CFM Exterior)	10" Round
	VEV1200 (1200 CFM Exterior)	10" Round
Overall Dimensions
	Overall Width	42"
	Overall Height	18" (45.7 cm)
	Overall Depth	24" (61.0 cm)
