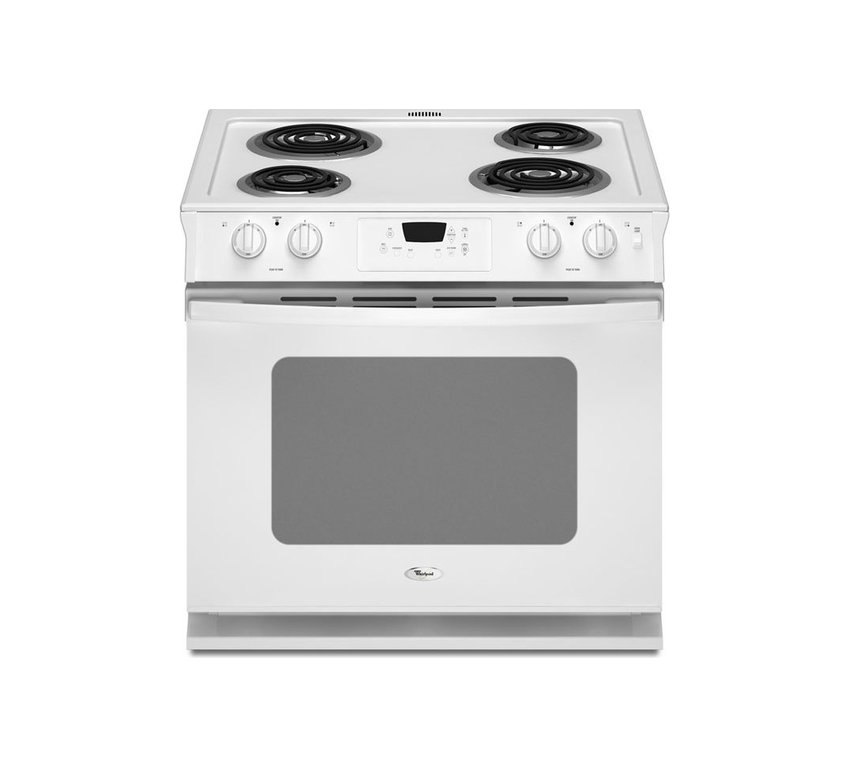

Whirlpool : WDE101LVQ 30" Electric Range - White


Part Number: WDE101LVQ

30" Drop-in Electric Range with 4 Coil Elements, 4.5 cu. ft. Oven Capacity, One Touch Bake/Broil, Hot Surface Indicator Lights and Sabbath Mode

Whirlpool WDE101LVQ


Part Number: WDE101LVQ

Why shop evVive.com?
  • Authorized Dealer
  • Experienced Sales Team
  • Factory Trained Installers
  • Competitive Package Deals

Today's Price$774.49
Still Need Help? Call 877-679-2686

  • 4.5 Cu. Ft. Capacity
  • (2) 8" Coil Elements
  • (2) 6" Coil Elements
  • Porcelain Enamel SpillGuard Cooktop
  • Chrome Drip Bowls
  • Oven Control Child Lockout
  • When activated, the electronic child lockout feature disables all electronic control buttons to prevent children from accidentally turning on the oven.
  • Clock and Timer
  • Preheat Countdown Timer and Signal
  • Displays and counts down the required preheat time after you set the temperature and press Start.
  • An audible signal tells you when the oven is heated and ready to cook so foods don't go in too early.
  • Hot Surface Indicator Light
  • A safety feature indicating if a cooking element is on or is still hot.
  • Sabbath Mode
  • Delay Bake
  • One Touch Bake and Broil Feature
  • Automatically sets the oven to 350°F for baking or 500°F for broiling.
  • You've got better things to think about than the exact temperature for broiling fish.
  • Put food in the oven, touch a button and walk away.
  • Custom Broil
  • The better way to broil.
  • Set your own broiling temperature, between 170°F and 500°F in five-degree increments.
  • High heat perfect for grilling meats or low heat for delicate cooking such as browning meringues.
  • EasyView Extra-Large Oven Window
  • Frameless Door
  • 2 Adjustable Oven Racks
  • 5 Rack Guide Positions
  • Power Cord Not Included
Performance
Capacity4.5 Cu. Ft.
Temperature Management SystemAccuBake
6" Coil Elements2
8" Coil Elements2
Convenience
Ceramic Glass CooktopNo
Self-Cleaning SystemNo
Adjustable Racks2
Delay BakeYes
Control LockYes
Sabbath ModeYes
Oven Hold WarmYes
Kitchen TimerYes
Large Oven WindowYes
Frameless Door DesignYes
Metal HandleYes
Oven LightYes
Power / Ratings
Bake Element2,400 Watts
Broiler Element4-Pass 3,000 Watts
Left Front Burner6" - 1,250 Watts
Left Rear Burner8" - 2,100 Watts
Right Front Burner8" - 2,100 Watts
Right Rear Burner6" - 1,250 Watts
Electrical Requirements240/208V, 60Hz, 40A
NotePower Cord Not Included
Dimensions and Weights
Overall Width30 3/4"
Overall Depth28 3/4"
Overall Height28 1/2"
Cutout Width30"
Cutout Depth23 1/4"
Cutout Height27 1/2"
Approx. Shipping Weight160 Lbs.
