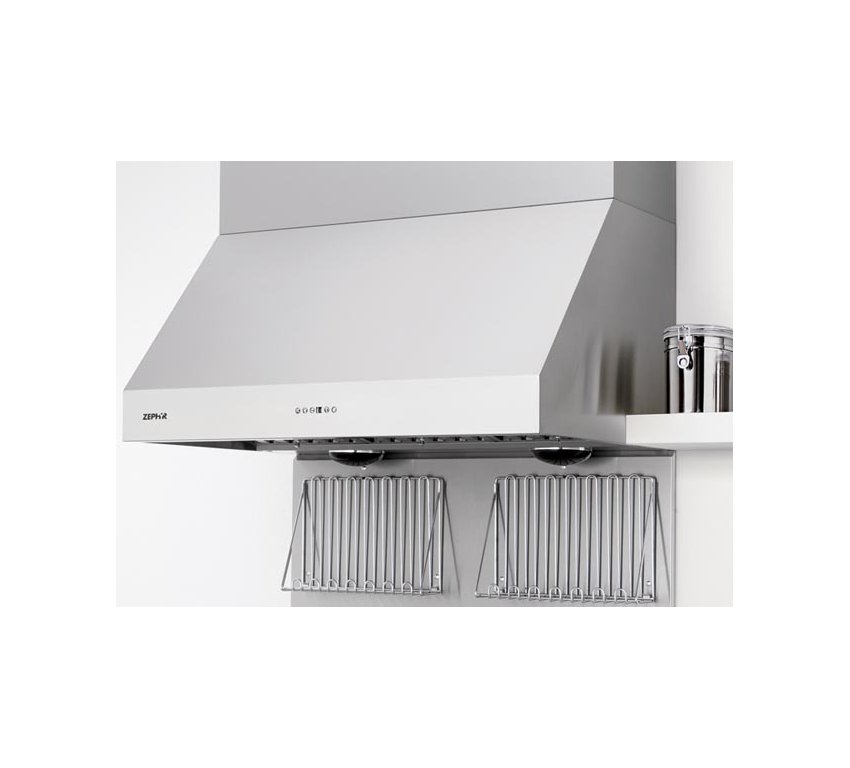

Zephyr AK7536ASX

Mouse Over Main Image to Zoom In

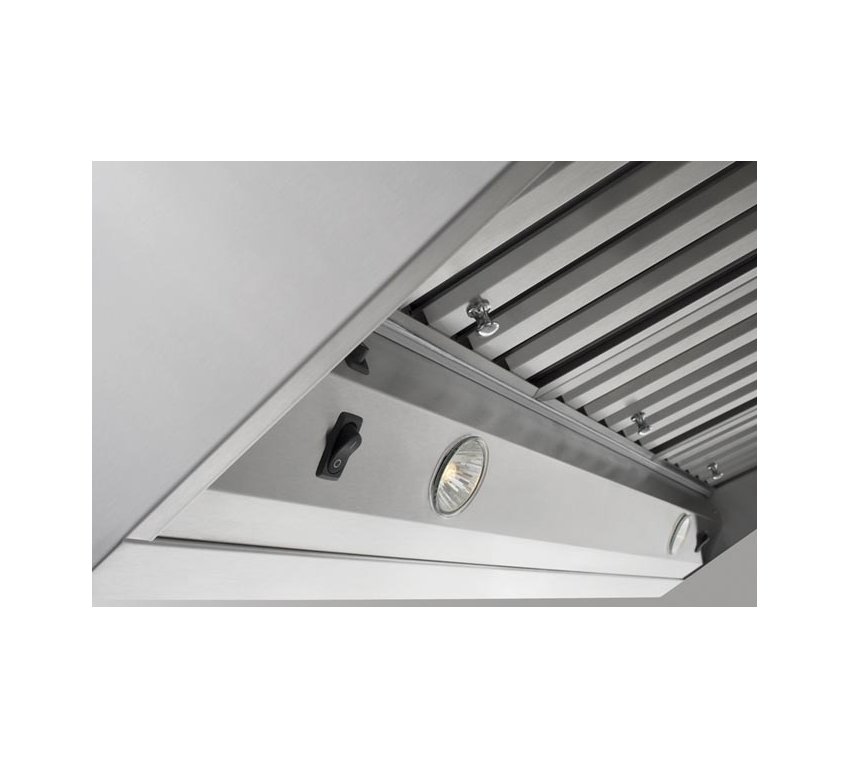

• Halogen Lamps, GU10 35W
• Dual Level Lighting
• Stainless Steel Baffle Filters
• 6" (Single)/10" (Dual or External) Round Vertical Ducting
• 3-1/4" x 10" Horizontal Ducting (For Single Blowers Only)
• Electronic Touch Controls
• 3 Speeds

Performance
Internal Single Blower	600 CFM, 6 Sones
Internal Dual Blower	1100 CFM, 8 Sones
External Blower	1000 CFM
Features
Controls	Electronic Touch
Speed Levels	3
Auto Delay-Off	Yes
Lighting	Halogen, 35W x 2
Dual-Level Lighting	Yes
Filters	Baffle x 3
Recirculating	No
Duct Cover Extension	Optional
Specifications
Vertical Ducting	6" (Single)/10" (Dual or External) Round
Horizontal Ducting	3 1/4" x 10" for Single Blower Only
AC Input	120V - 60Hz
Single Blower AC Power	Max. 390W at 3.25 Amps
Dual Blower AC Power	Max. 710W at 5.95 Amps
External Blower AC Power	Max. 800W at 6.7 Amps

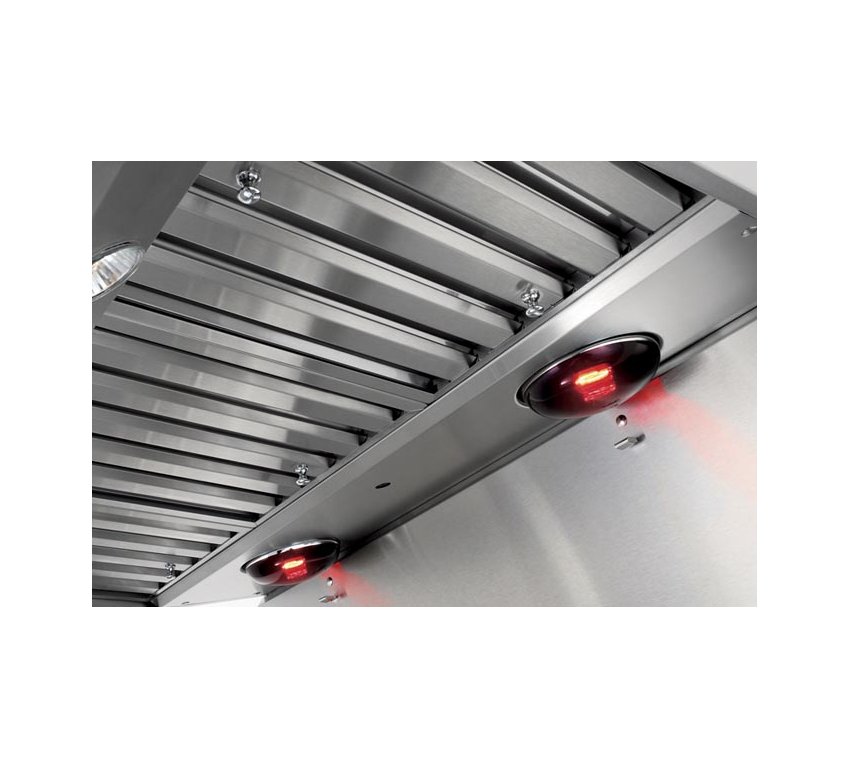

With Heat Lamps AC Power	Add 500W at 4.2 Amps
Dimensions
Width	35 15/16"
Depth	24"
Height	18"
Min. Height Accomodations	Min. Height 26" From Cooking Surface; Hood Mounted 62" From Floor.
Max. Height Accomodations	Max. Height 36" Above Cooking Surface; Hood Mounted 72" From Floor.
