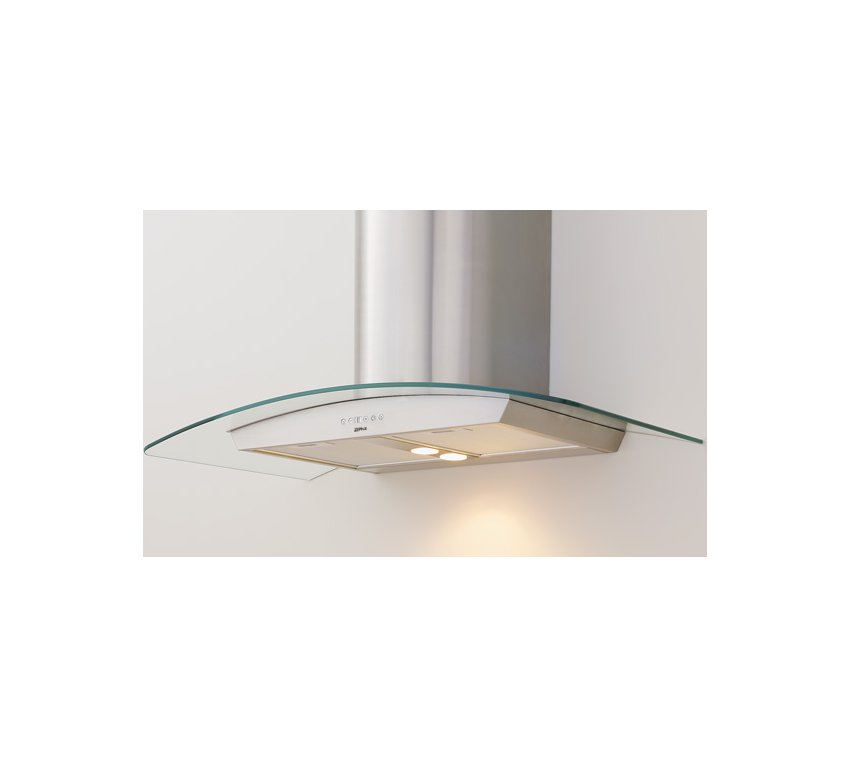

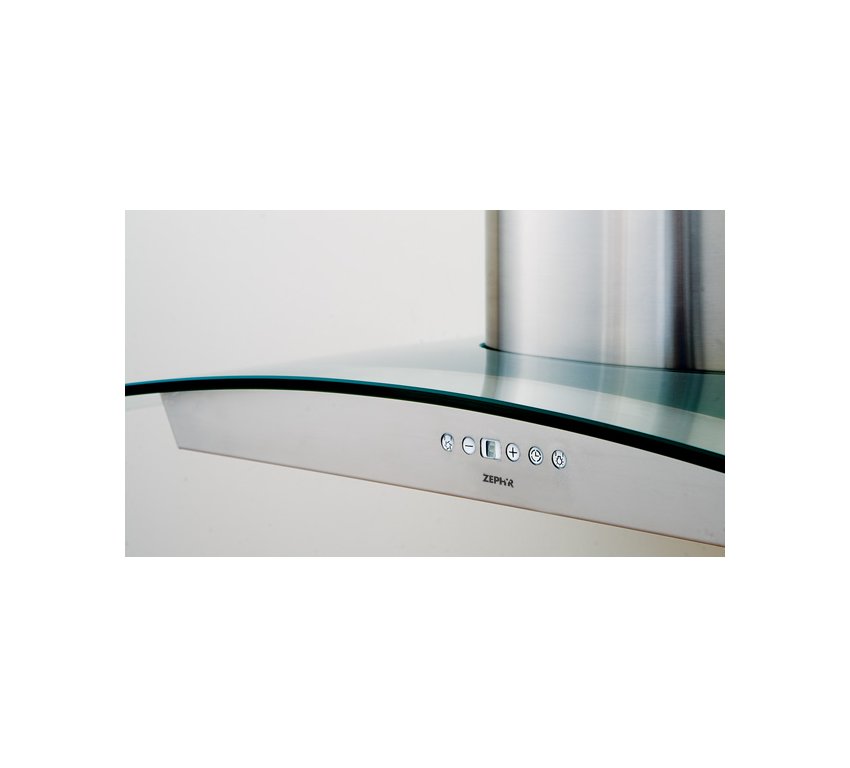

Zephyr ZMIM90AG

Mouse Over Main Image to Zoom In

• 715 CFM
• 6.0 Sones Max.
• 6 Speed Electronic Controls
• 2 Halogen Lights
• Dual Level Lighting
• 15 Min. Delay Off
• 6" Round Vertical Ducting
• Recirculating Option
• MFG SKU ZMI-M90AG

Performance
Internal Blower	715 CFM, 6.0 Sones Max.
External Blower	N/A
Features

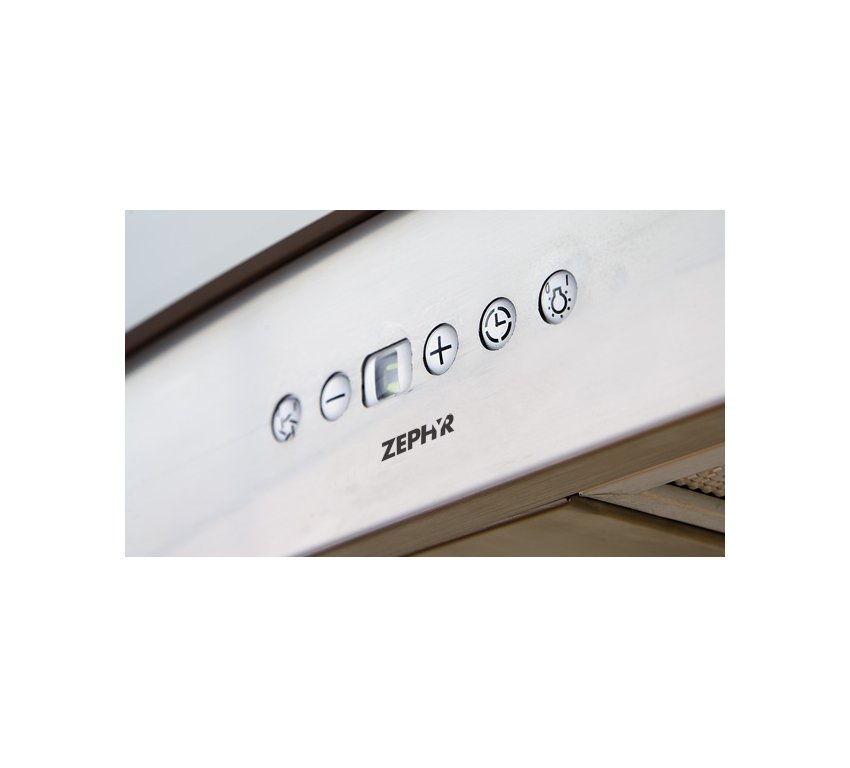

Controls	Electronic Touch
Speed Levels	6
Delay-Off	Auto
Lighting	Halogen, 50W x 2
Dual-Level Lighting	Yes
Filters	Metal Mesh x 2
Recirculating	Yes
Duct Cover Extension	Yes, Up to 14 Ft. Ceiling
Specifications
Internal Blower - Vertical	6"
Internal Blower - Horizontal	N/A
External Blower - Vertical	N/A
External Blower - Horizontal	N/A
AC Input	120V - 60Hz
Internal Blower AC Power	Max. 400W at 3.3 Amps
External Blower AC Power	N/A
Dimensions
Width	35 7/16"
Depth	20 1/2"
Height - Ducted	26 1/2" to 49"
Height - Recirculated	30" to 49"
Mounting Heights
Ducted - Min.	7'6". Hood mounted 28" above cooking surface. 64" from floor.
Ducted - Max.	10'1". Hood mounted 36" above cooking surface. 72" from floor.
Recirculating - Min.	7'10". Hood mounted 28" above cooking surface. 64" from floor.
Recirculating - Max.	10'1". Hood mounted 36" above cooking surface. 72" from floor.
